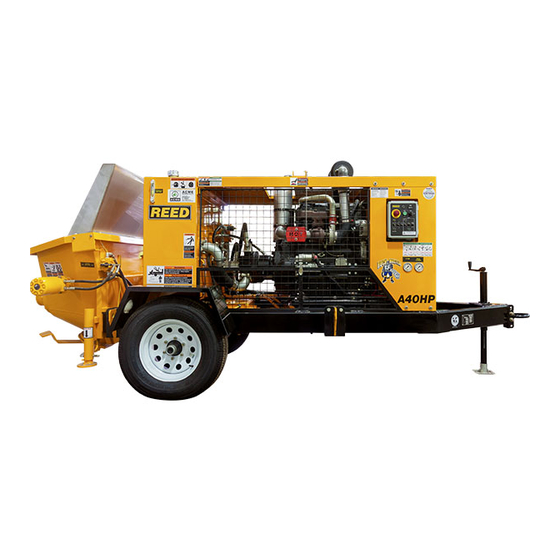

REED A40HP Quick User Guide
Starting the Pump
1.
Turn on the Key Switch.
2.
Pull out the Emergency Stop (E-Stop) Switch.
3.
Push and hold the Start Button to start the
engine.
4.
Turn on the Horn Switch to deactivate the
E-Stop Light. If the E-Stop Light is ON, the
pump will not operate.
5.
Ensure that the Forward/Reverse Switch is at
FWD.
6.
Start pumping by turning on the Pump
Switch. The S-Tube will start turning.
Pumping in Reverse
1.
Turn off the Pump Switch.
2.
Turn the Forward/Reverse Switch to REV.
3.
Turn on the Pump Switch to start reversing
and removing the pressure.
4.
Continue reversing until the Drive Cylinder
Pressure Gauge reaches 0 before
dismantling. DO NOT open the outlet & pipes
if there's any pressure shown in pressure
gauge.
2
3
5
6
7
8

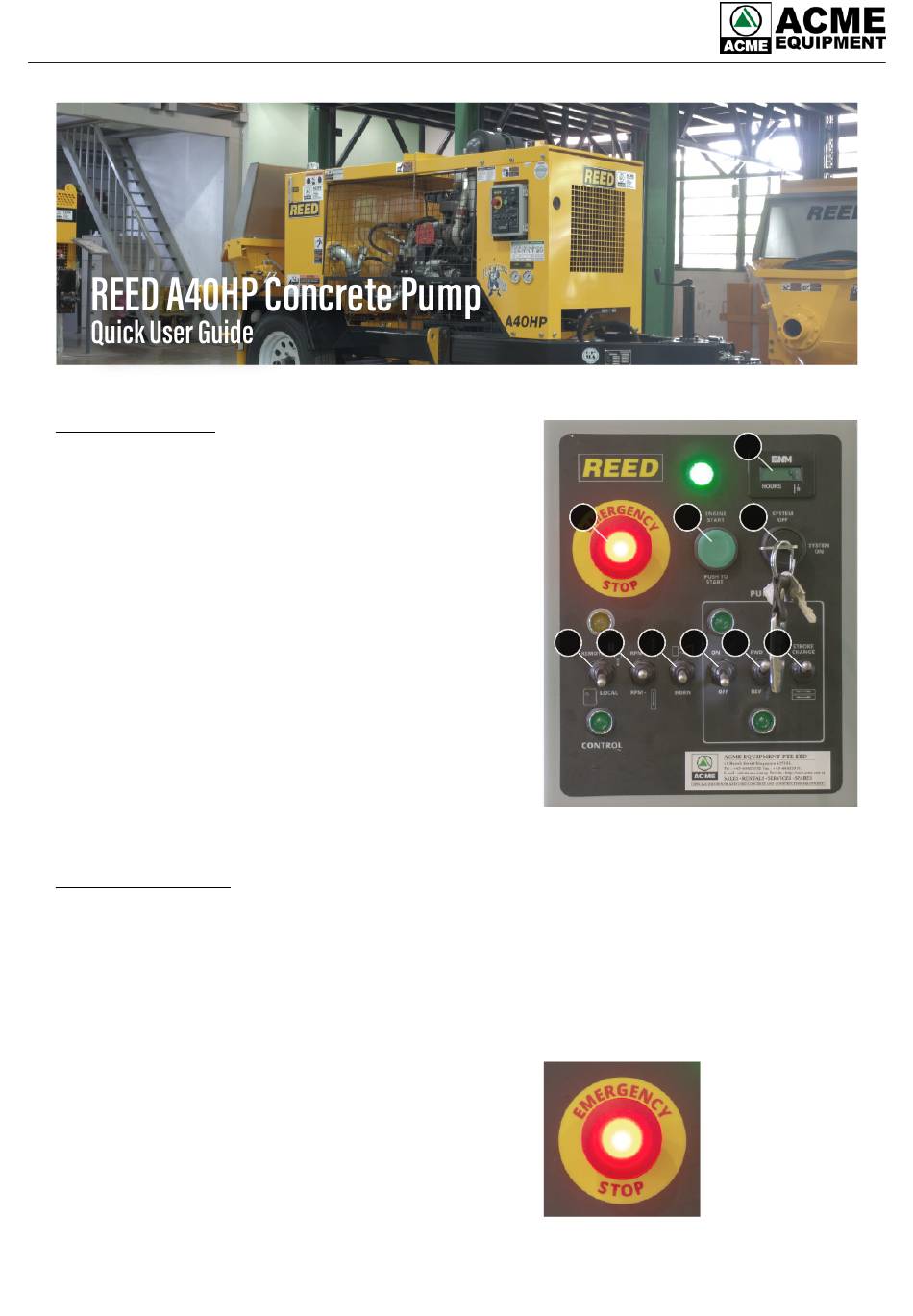

Control Panel:
1. Hour Meter
2. Emergency Stop (E-Stop) Button
3. Start Button
4. Key Switch
5. Remote/Local Control Mode Switch
6. High/Low RPM Switch
7. Horn Switch
8. Pump Switch
9. Forward/Reverse Switch
10. Stroke Change Switch
When the E-Stop Light is on, the
pump will not operate
1
4
9
10
