MaxJax™ Portable Mid-Rise Lift

Operation and Maintenance Manual

Manual P/N 5900268 — Manual Revision A4 — July 2022

Model:

• M7K

Original Instructions

in the English

Language

Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.

⚠

DANGER

MPORTANT

AFETY

Read this entire manual thoroughly before

NSTRUCTIONS

installing, operating, servicing or maintaining this Lift

Failure to follow the instructions and safety precautions in this

manual can result in serious injury or death. Make sure all other

operators also read this manual. Keep the manual near the product

for future reference. By proceeding with setup and operation,

you agree that you fully understand the contents of this

manual and assume full responsibility for product use .

US Design Patent No. 8.256.577 B2

US Design Patent No. 9.150.395 B2

, S

NSTRUCTIONS

AVE

5240 Willis Road.

Theodore, AL, 36582

Telephone: (844) 629-5291

maxjax.com

HESE

Table of Contents

Need help?

Do you have a question about the M7K and is the answer not in the manual?

Questions and answers

Summary of Contents for MaxJax M7K

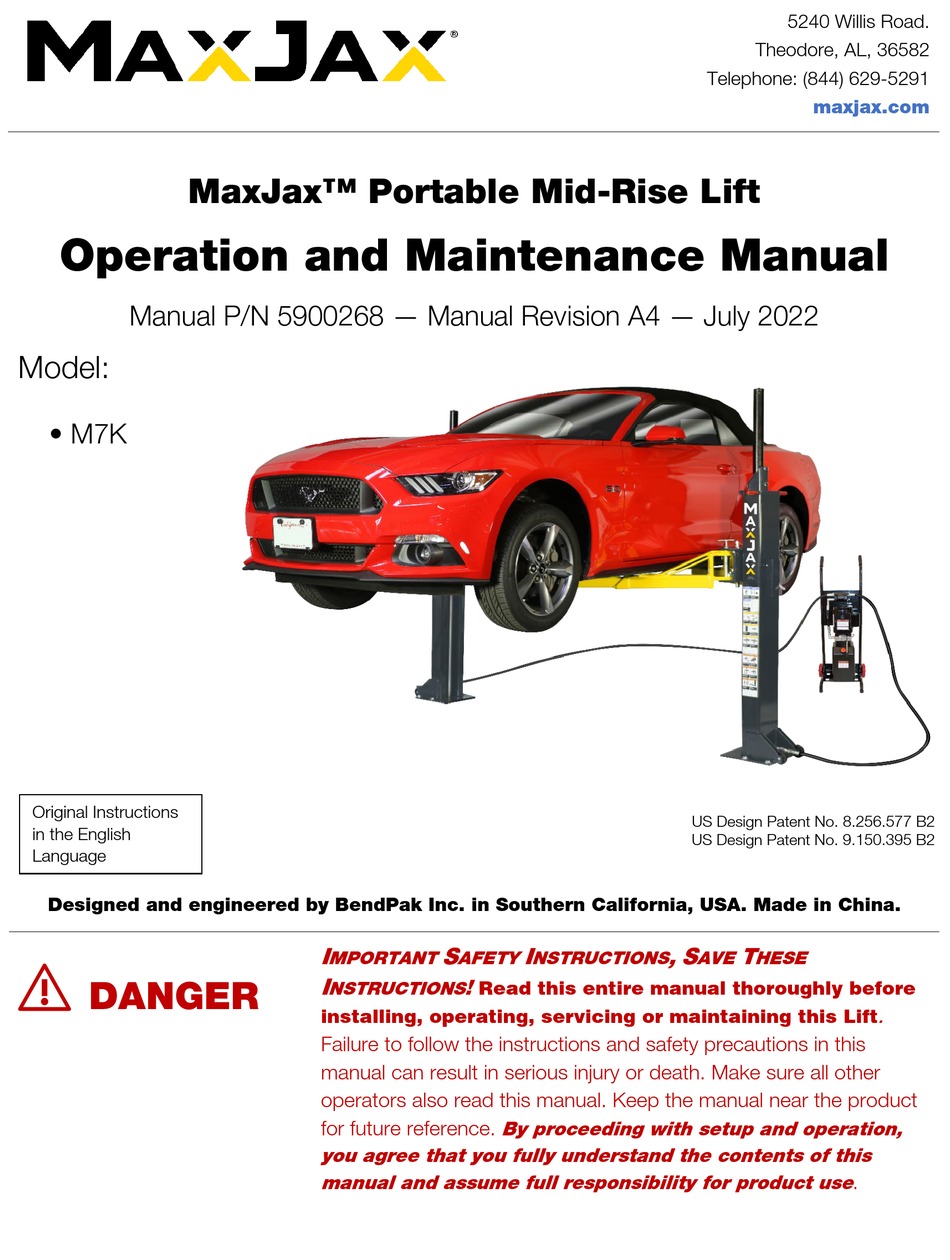

Page 1 5240 Willis Road. Theodore, AL, 36582 Telephone: (844) 629-5291 maxjax.com MaxJax™ Portable Mid-Rise Lift Operation and Maintenance Manual Manual P/N 5900268 — Manual Revision A4 — July 2022 Model: • M7K Original Instructions US Design Patent No. 8.256.577 B2 in the English US Design Patent No.
Page 2 Operation and Maintenance Manual for your product on the MaxJax website. Warranty. The MaxJax warranty is more than a commitment to you: it is also a commitment to the value of your new product. Contact your nearest BendPak dealer or visit www.maxjax.com/warranty...
Page 3 Unit Information. Enter the Model Number, Serial Number, and the Date of Manufacture from the label on your unit. This information is required for part or warranty issues. Model: Serial: Date of Manufacture: MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 4: Table Of Contents

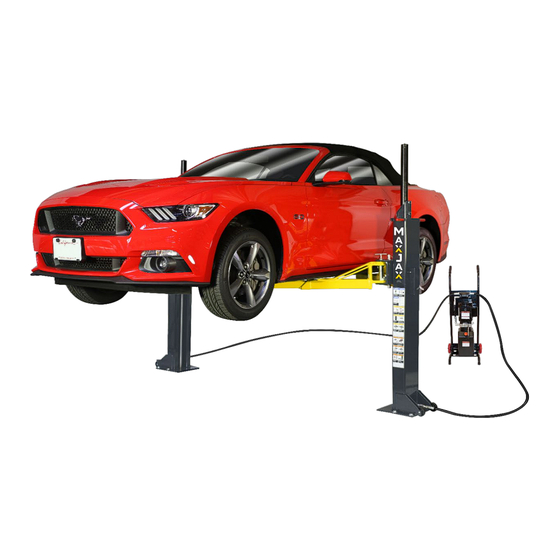

Maintenance Introduction MaxJax is a portable Mid-Rise Lift with a small footprint designed for low-ceiling garages. MaxJax can raise Vehicles up to 7,000 lbs. (3,175 kg). CE Approved when installed with the CE Safety Release Kit. This manual is mandatory reading for all MaxJax users , including anyone who sets up, operates, maintains, or repairs them.
Page 5: Safety Considerations
14. To reduce the risk of injury, close supervision is necessary when this product will be used around children. never 15. To reduce the risk of injury, attempt to lift more than the rated capacity. Refer to loading instructions. MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 6 Hydraulic Fluid is a minor issue; it could be life threatening. 32. MaxJax is portable, so you may move it to different mounting locations around your workspace; however, when the Lift is in use, it must be anchored in place.
Page 7 Modifications to the equipment without prior, written permission from BendPak Inc. • Injury or death caused by modifying, disabling, overriding, or removing safety features. • Damage to the equipment from external influences. • Incorrect operation of the equipment. MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 8: Specifications
110/220 VAC, 50/60 Hz, 1 Ph * Lowering is much slower with no Vehicle on the Lift. Must specify at time of purchase. Specifications subject to change without notice. MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 9: Operation
Vehicle. Do not forget to check Lift. Remove obstructions. The MaxJax is intended for indoor use and has an operating ambient Outdoor installations are prohibited temperature range of +41° to +104°F (+5° to +40°C) .
Page 10 Additional Operating Information Keep the following in mind when operating your MaxJax: • Use it only on a hard, flat surface. MaxJax is portable; if you move it to a new location, make sure the location has a hard, flat surface. •...
Page 11 About Lifting Points, Lift Pad Adapters and Lift Pad Extensions An important note to keep in mind when using the MaxJax is that the raised Vehicle must be balanced on the four Lift Arms. If the Vehicle is not balanced, it is more likely to become unstable and slide off the Lift, possibly damaging the Lift, the Vehicle, and anything under the Lift, including injuring people.
Page 12 MaxJax Accessories include a variety of Stackable Lift Pad adapters and Frame Cradle Pads. Raising a Vehicle This section describes how to raise a vehicle on the MaxJax Lift. ⚠ WARNING Never raise a Vehicle whose weight exceeds the rated capacity of the Lift. Do not leave the controls until the Lift is engaged on a Safety Lock position or fully lowered.
Page 13 The Lift Adapters are in secure contact with the Frame at the Vehicle manufacturers’ recommended Lift Points. • The Vehicle is stable on the Lift and the center of gravity is not shifted making the Vehicle off balance. MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 14 Arm Restraint Gear and lock the Lift Arm, push down on the Shaft while rocking the Lift Arm slightly. Refer to the figure on the next page. Arm Restraint Gear Disengaged Arm Restraint Gear Engaged MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 15 17. Verify the Lift is engaged on the same Safety Lock on both posts (all four arms are at the same height). 18. Begin work on the Vehicle. MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 16 7. When the Lift Arms have lowered enough to clear the bottom of the Vehicle, rotate the Lift Arms out from under the Vehicle and toward the MaxJax Posts into the full drive-through positions. This clears a path for the Vehicle to move out of the Lift area.
Page 17 This clears a path for the Vehicle to move out of the Lift area. 6. Carefully drive the Vehicle out of the Lift. Moving the Lift The MaxJax is portable, which means you can move it around your work space, if you have installed additional anchors. To move the Lift: 1.
Page 18 8. Repeat Steps 4 through 7 for the other Post. Re-installation When you are ready, you can easily re-install your MaxJax using the Anchor Sleeves already in place. To re-install your Lift: 1. Verify the installation area and path is clear of debris, tools, and equipment.
Page 19: Maintenance
If one of the long Hydraulic hoses requires replacement, replace it with a hose of the same length ±5%. The MaxJax is a Hydraulically Equalized Lift. Unequal Hose lengths may cause unequal lifting, resulting in an imbalance and subsequent loss of load.
Page 20: Troubleshooting
If you continue to have problems with your Lift, take the Lift out of service, then contact your dealer, visit maxjax.com/support, via email support@maxjax.com, or call (844) 629-5291. MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 21: Labels
Labels MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 22 MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 23: Part Drawings
Part Drawings MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 24 MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 25 MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 26 MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 27 MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 28: Ali Store
To find a Certified Lift Inspector in your local area, visit Directory of ALI Certified Lift Inspection Providers (www.autolift.org/find-a-certified-auto-lift-inspector/). Get the training and materials you need to work safely at www.autolift.org/ali-store/ MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 29: Maintenance Log
Maintenance Log MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 30 Maintenance Log MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
Page 31 Maintenance Log MaxJax™ Portable Mid-Rise Lift P/N 5900268 — Rev. A4 — July 2022...
