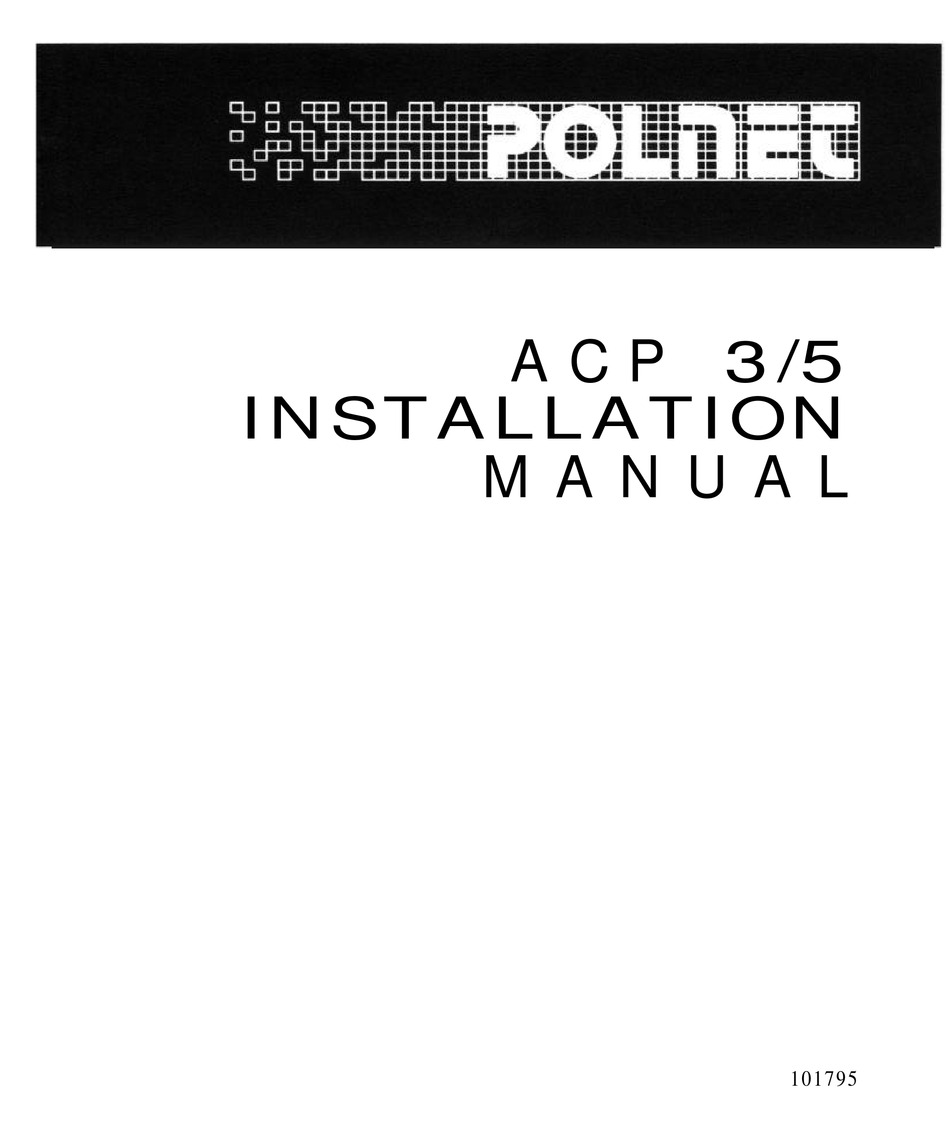

- Page 1 A C P 3/5 INSTALLATION M A N U A L 101795...
- Page 2 PoINet ACP 3/5 I n s t a l l a t i o n M a n u a l 1) Installation/Safety Precautions 2) General lnformation 3) Powering Up 4) RJ-31X Walljack Wiring 5) Recommended RJ-31X Placement in Existing Wiring A.
- Page 3 When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product.
- Page 4 To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified serviceman when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently...
- Page 5 To simplify this installation manual, all graphical representations of ACP product in wiring schematics are of the 3-port model. You may be installing an ACP-5, which is a 5-port device. The installation procedure for both The key to proper operation of the ACP is CORRECT installation.
- Page 6 At this time, the LED on the front panel of the ACP should To connect the ACP to the phone line, a RJ-31X modular walljack will need to be installed on to the existing telephone wiring in front of all telephone/data equipment.
-
Page 7: Single Line
“Tip” and "Ring" labeling is important when attaching wire pairs to the numbered pins. There should be no deviation from the diagram on result in reverse polarity problems for the phone system and data equipment used on the ACP. The “shorting bars” in the RJ-31 X walljack allow for continuation of voice service to the phone system when the 8-wire line cord is unplugged. - Page 8 RJ-31X installation on a two line phone system is basically the same as a single line installation, but with a few exceptions. A) If “Rollover” is present, install the RJ-31 X walljack Last Line of Rollover piCq KEY/PBX S y s t e m I n s t a l l a t i o n This type of installation is simple and should be a rarity.
- Page 9 When installing the ACP on a single phone line where only one RJ-11 walljack is present, it may be advantageous to use a 4-pin/8-pin series T-connector. --’ 1 2 3 4 5 6 By utilizing a 4/8 pin series T-connector on a regular C walljack, the ACP can RJ-11 be connected to the existing...
- Page 10 Listed below are part numbers for the 4/8 pin series T-connector. If your telephone accessories retailer does not have the part numbers listed in his catalogs, ask him to cross reference Functions/ O p e r a t i o n s C h e c k After installing the ACP on the phone line, it is wise to make a...
-
Page 11: Device Interface
I n p u t P o w e r R e q u i r e m e n t s : At AC Transformer: 110-125 Volts AC Only, 50-60 Hz At Power Jack On ACP: 12-15 Volts AC Only Power Consumption Idle: 8 Watts Ringing A Device: 10 Watts CO Interface: REN 1.1B... - Page 12 operational and safety require- ments. The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an accepted method of connection.
- Page 13 If you experience trouble with this telephone equipment, please contact your PolNet dealer or Multi-Link, Inc. information on obtaining service or repairs. The telephone company may ask that you disconnect this equipment from the network until the problem has been...
-
Page 14: Service Information
ACP 3/5 product for service is your responsibility. However, Multi-Link will pay for normal return freight expenses. The AC adaptor used with this product is covered under this warranty. This warranty does... - Page 15 Multi-Link, Inc. or a warranty repair center that we have authorized. The owner is restricted from performing any maintenance operation other than those specified within this instruction manual. require service, please contact your Polnet dealer or Multi-Link, Inc. Multi-Link, Inc.
- Page 16 The PolNet ACP 3/5 contains patented and otherwise proprietary circuits and software algorithms. This installation manual describes the operation and function of some of these circuits and algorithms. Unauthorized duplication of this manual is a violation of U.S. and other copyright laws, and unauthorized use of all or part of this manual may result in patent infringement.
