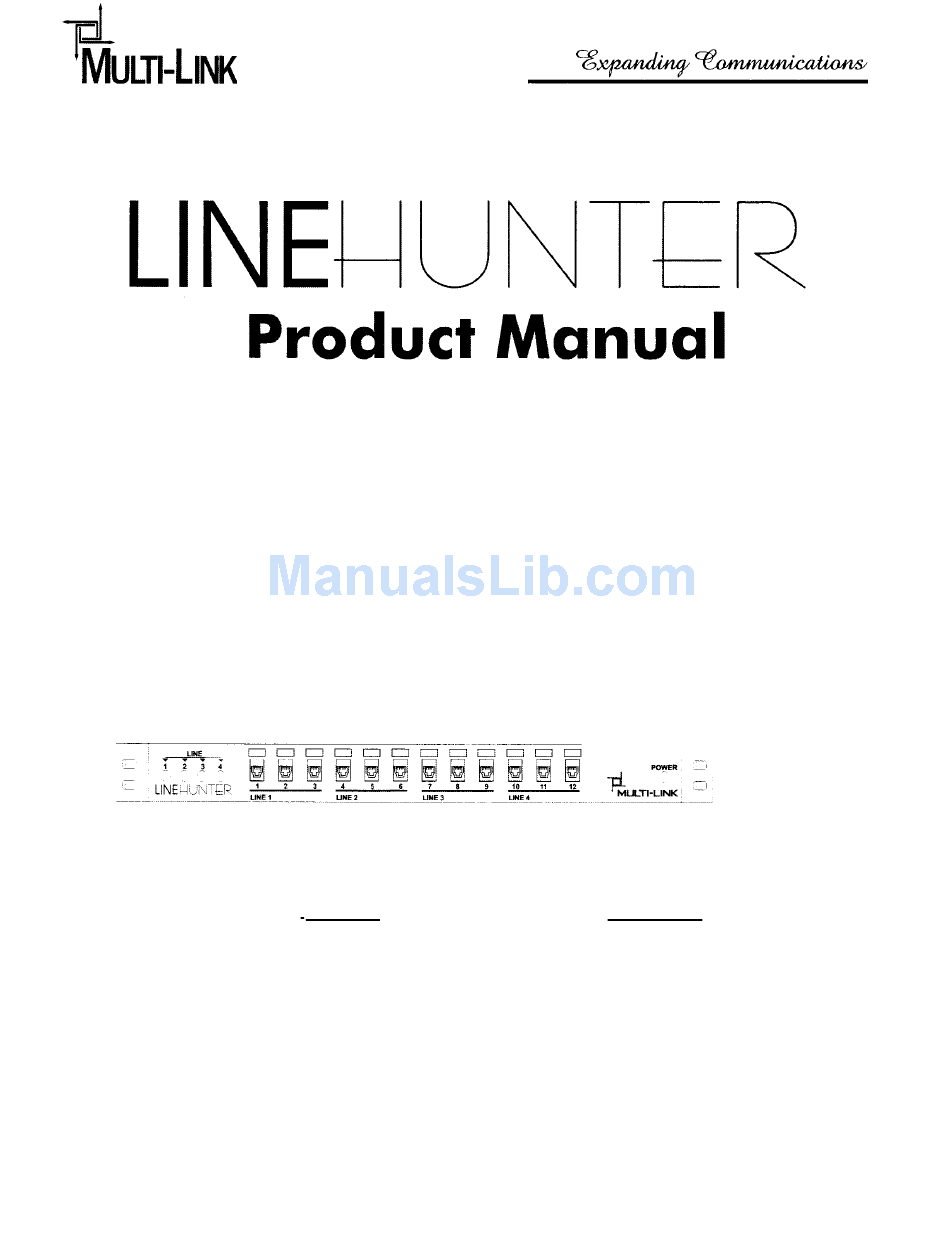

Multi-Link LineHunter Product Manual

Rack mount 4/12 call processor

Hide thumbs

Table Of Contents

Quick Links

Download this manual

- Precision Inbound Call Routing

- Fast Outbound Line Hunting

- Streamlined Telecommunications

Rack Mount 4/12 Call Processor

Saves money by more effective use of expensive phone lines.

Provides precision i nbound call routing and rapid outbound line

hunting in the same unit.

225 Industry Parkway - Nicholasville, KY 40356 - Ph. 800-535-4651

Table of Contents

Need help?

Do you have a question about the LineHunter and is the answer not in the manual?

Questions and answers

Summary of Contents for Multi-Link LineHunter

Page 1 - Precision Inbound Call Routing - Fast Outbound Line Hunting - Streamlined Telecommunications Rack Mount 4/12 Call Processor Saves money by more effective use of expensive phone lines. Provides precision i nbound call routing and rapid outbound line hunting in the same unit. 225 Industry Parkway - Nicholasville, KY 40356 - Ph.
Page 2: Table Of Contents
Product Manual CONTENTS SECTION HOW THE LINE HUNTER WORKS 2 LINE HUNTER AUTO TEST 3 FEATURES 4 APPLICATIONS 5 SAFETY INSTRUCTIONS 6 INSTALLATION 7 TECHNICAL SPECIFICATIONS 8 FCC REGISTRATION 9 IC REGISTRATION 10 LIMITED WARRANTY 225 Industry Parkway - Nicholasville, KY 40356 - Ph. 800-535-4651 PAGE...
Page 3: How The Line Hunter Works
1 HOW THE LINE HUNTER WORKS The Line Hunter has been designed to provide effective call processing functionality for two applications. First and foremost, it is a powerful call processor that handles both i nbound and outbound traffic seamlessly. Feature-rich and robust, The Line Hunter excels as a workhorse built for high-traffic commercial environments.
Page 4 OPERATIONAL NOTE: Operating with less than 4 Telephone Lines will diminish the inbound routing capabilities: (4 Lines = 12 Ports, 3 Lines = 9 Ports, 2 Lines = 6 Ports, 1 Line = 3 Ports). Unless all four telephones are operational, the vacant PRIMARY LINE PORT and its subordinate ports will be by-passed and not be available for call routing functions.
Page 5 Precision Inbound Call Routing Fast Outbound Line Hunting FULL FUNCTION CONFIGURATION - The benefit of this configuration is that all 12 ports can have a unique telephone number (address) allowing the Line Hunter (using Selective Ring Service from Local Telephone Service Provider) to precisely route incoming calls to a particular device (or station).
Page 6 FUNCTION 2: Outbound Line Hunting - This configuration places emphasis on outbound traffic. Up to 12 telecommunication devices are always in queue to hunt for one of 4 available lines, but only 4 ports will accept inbound calls. I ncoming traffic will NOT be routed. Incoming calls will will be directed to the PRIMARY LINE PORT ONLY Line 1 will ONLY connect Port 1 (Primary Line Port) Line 2 will ONLY connect Port 4 (Primary Line Port) Line 3 will ONLY connect Port 7 (Primary Line...
Page 7 DIP SWITCH: There is a six position DIP switch that will enable/disable any phone lines connected to it (follow silk-screen on back panel for position selection). The DIP switch will also enable/disable a busy signal for outbound calls when the phone lines are not available. It is recommended to disable any line that is not in use for the Line Hunter to be more efficient when hunting for any available line.
Page 8: Features
2 AUTO TEST - LINE TEST FUNCTION There is a built-in function within the Line Hunter that will identify lines that are enabled, but found to be non- functioning. If a device requests an outside line by going off-hook, the Line Hunter will select an appropriate li ne, if any are available.
Page 9: Applications
4 APPLICATIONS The Line Hunter is an extremely versatile telecommunications routing/hunting device. Up to 12 independent devices can be connected to the unit. TELECOMMUNICATIONS ZONE (CLOSET) Mounted in an equipment rack in a telecommunications closet, the Line Hunter can provide telephone line access for virtually any telecommunications device that transmits data over a telephone line.
Page 10: Safety Instructions
5 SAFETY INSTRUCTIONS When using the Line Hunter, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1) Read and understand all instructions 2) Follow all warnings and instructions marked on the product. 3) Unplug this product from the wall before cleaning.
Page 11 - Safety Instructions Continued 1 3) Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:a) When the power cord is damaged or frayed. b) If liquid has been spilled into the product. c) If the product has been exposed to rain or water d) If the product does not operate normally by following the operating instructions.
Page 12: Technical Specifications
The Line Hunter is a rack mounted panel that is designed to be screwed to a standard (EIA) 19.00" or 23.00" equipment rack cabinet or wall bracket using four 5/8" x 12-24 screws (supplied). 1 . Slide Line Hunter into equipment rack and secure with 4 screws. 2.
Page 13: Fcc Registration 1
I f they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. I f you experience trouble with this telephone equipment, please contact Multi-Link Inc. for information on obtaining service or repairs.
Page 14: Limited Warranty 1
10 Limited Warranty We warrant that if the Line Hunter manufactured by Multi-Link Inc. and purchased by you proves to be defective i n material or workmanship, we will provide without charge for a period of one year, the labor and parts necessary to remedy any such defect.
