Instruction Manual
D103669X012
March 2020
FAG and FA Series Cartridge Filters
SUMMARY
Introduction ........................................................................ 1
Labelling ............................................................................ 3
Transport and Handling ..................................................... 3
Preservation and Storage .................................................. 3
Atex Requirements ............................................................ 3
Operation ........................................................................... 4
Installation ......................................................................... 4
Startup and Shutdown ....................................................... 5
Maintenance ...................................................................... 6
Spare parts ........................................................................ 6
Parts List ............................................................................ 7
Schematic Assemblies ....................................................... 7

INTRODUCTION

Scope of Manual
This manual provides instructions for installation, startup,
maintenance and spare parts ordering for the FAG and FA
Series Filters.
Product Description
Regulating and metering stations need to protect the valves,
pressure regulators, meters and so forth from foreign
particles present in the gases or, particularly during the initial
stages of operation, from debris in newly laid pipes. This is
the job of the filter.
This product has been designed to be used with fuel gases of
1st and 2nd family according to EN 437, and with other non
aggressive and non fuel gases. For any other gases, other
than natural gas, please contact your local sales agent.
The series is available in several versions to meet all
application requirements.
FAG and FA Series

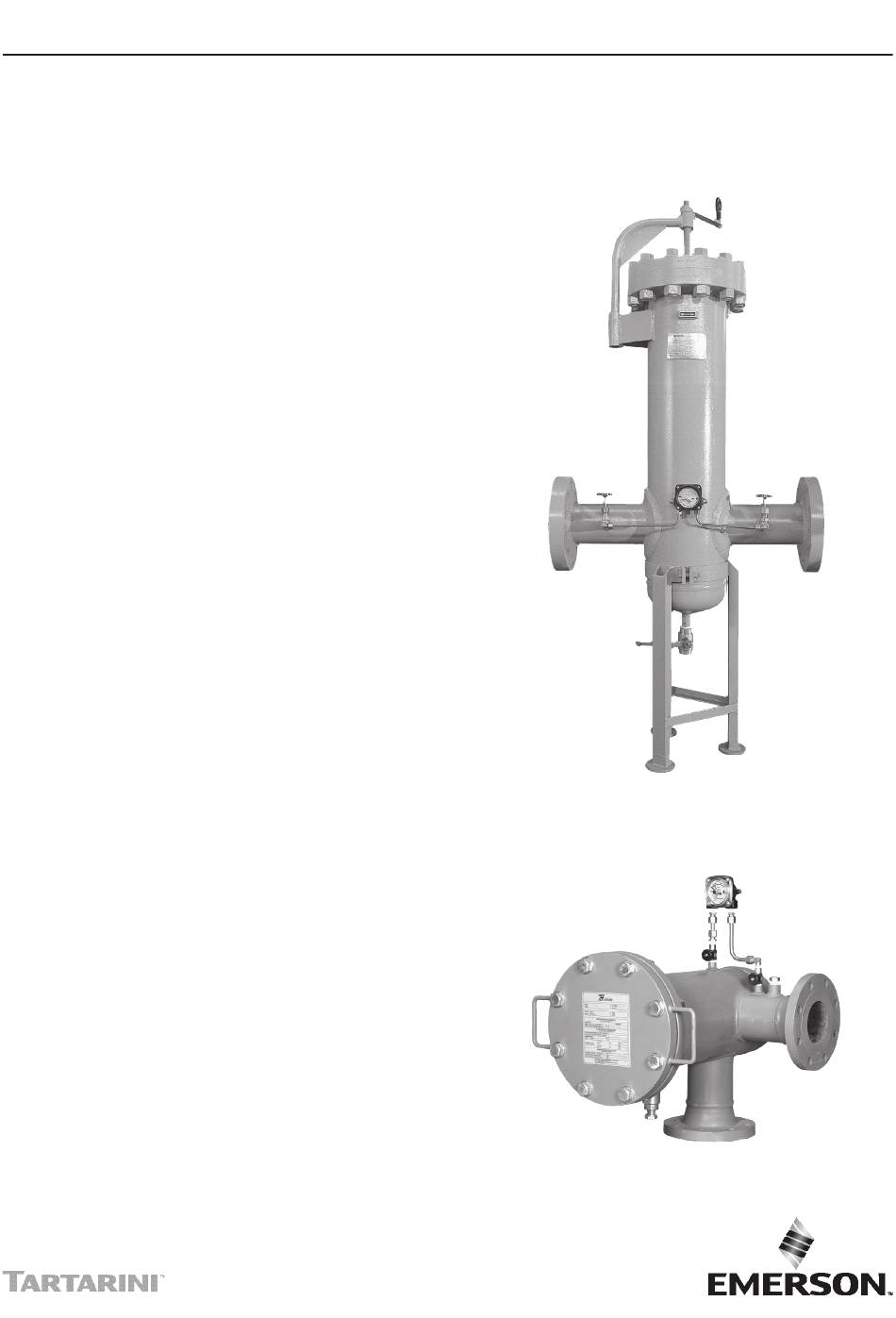

Figure 1. Type FA Cartridge Filter
Figure 2. Type FAG Cartridge Filter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TARTARINI FA Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson TARTARINI FA Series

  • Page 1: Table Of Contents

    Instruction Manual FAG and FA Series D103669X012 March 2020 FAG and FA Series Cartridge Filters SUMMARY Introduction ................ 1 Type FAG P.E.D. Categories and Characteristics ..... 2 Type FA P.E.D. Categories and Characteristics ....2 Labelling ................3 Transport and Handling ............. 3 Preservation and Storage ..........
  • Page 2: Type Fag P.e.d. Categories And Characteristics

    FAG and FA Series TYPE FAG - P.E.D. CATEGORIES Minimum/Maximum Allowable Temperature (TS) AND CHARACTERISTICS Standard Version: -10/60°C Low Temperature Version: -20/60°C P.E.D. Categories and Fluid Group Table 1. FAG, FAG-A, FAG-AP and FAG-A-AP Series TYPE FA - P.E.D. CATEGORIES (Flanged Opening) P.E.D.
  • Page 3: Labelling

    FAG and FA Series LABELLING TRANSPORT AND HANDLING The filters are supplied packaged, transport can take place both Notified body BOLOGNA ITALY 1370 horizontally and vertically, on transport saddles or in a cage. TIPO: N°FABBR. Note 1 These supports are designed to withstand the weight of the TYPE: SERIAL N°...
  • Page 4: Operation

    FAG and FA Series • with a view to preventing and providing protection against in the system, the escaping gas may accumulate and become a fire or explosion explosions, technical and/or organizational measures hazard. Immediately call qualified service appropriate to the nature of the operation shall be taken (e.g.
  • Page 5: Startup And Shutdown

    FAG and FA Series Piping and Connections The filter have been subject to hydrostatic test at our factory according to Code and Specifications requirements and thoroughly inspected for leakage during the above test. To avoid excessive stresses or strains due to piping connections, the following precautions should be taken: However, handling during transportation or moving into place may have loose gasketed seals: based upon the above, it is...
  • Page 6: Maintenance

    FAG and FA Series Shutting Down • Lift the cartridge by hand and remove it from filter body. When possible, reduce slowly the pressure in order to avoid • Inspect gasket or ring seat, the gasket (key 23) and the damage to the internal.
  • Page 7: Parts List

    FAG and FA Series PARTS LIST SCHEMATIC ASSEMBLIES Description Head Shell Flange Nozzle 10 11 Reinforcement plate (only for AP version) Filtering cartridge Shell flange Flat cover Bolt Washer O-ring Bottom plate for cartridge Drain Eyebolt Thredolet Stud 4 19 Pipe Pipe Top plate for cartridge...
  • Page 8 D103669X012 © 2014, 2020 Emerson Process Management Regulator Technologies, Inc. All rights reserved. 03/2020. Americas Asia Pacific The Emerson logo is a trademark and service mark of Emerson Electric McKinney, Texas 75070 USA Singapore 128461, Singapore Co. All other marks are the property of their prospective owners.
