Instruction Manual
D100279X012
Fisher
262K Filter
™
Introduction
Scope of Manual
This manual provides instructions for installation, maintenance and parts information for Fisher 262K filters.
Do not install, operate, or maintain a Fisher 262K filter without being fully trained and qualified in valve, actuator, and
accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to
carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you
have any questions about these instructions, contact your
Product Description
The 262K filter is designed to remove dirt, scale, and other solid substances from the air supply to actuators and
instruments.
The 262K filter is available with a cast iron (Style B) or stainless steel body (Style SSB) with NPT screwed connections.
See table 1 for temperature capabilities.
The filter has a resin‐impregnated cellulose filter element capable of capturing particles as small as 40 microns.

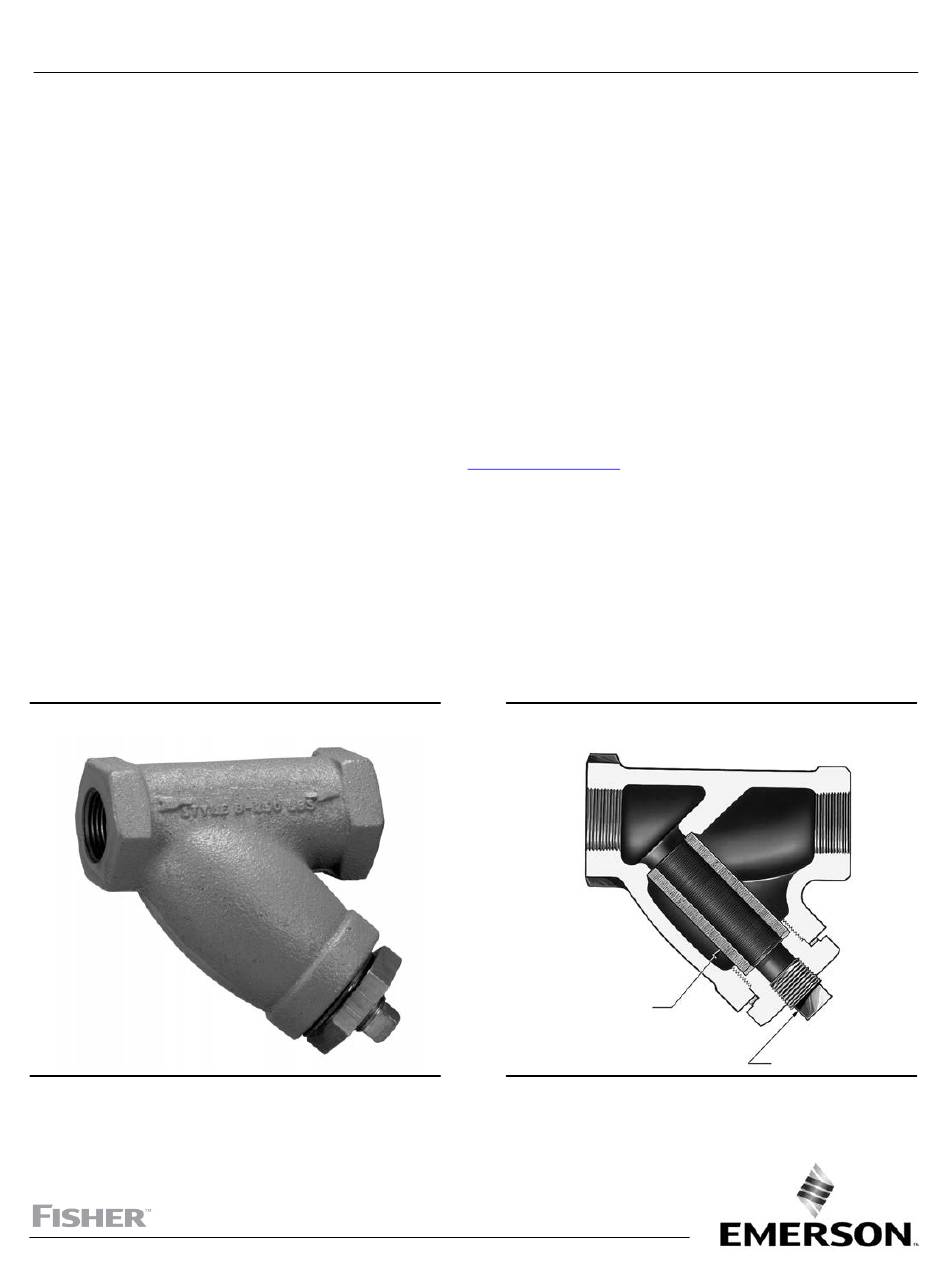

Figure 1. Typical Fisher 262K Filter
W7910
www.Fisher.com
Emerson sales office
before proceeding.
Figure 2. Construction Details
FILTER
ELEMENT
W0225‐1
262K Filter
September 2019
PIPE PLUG
