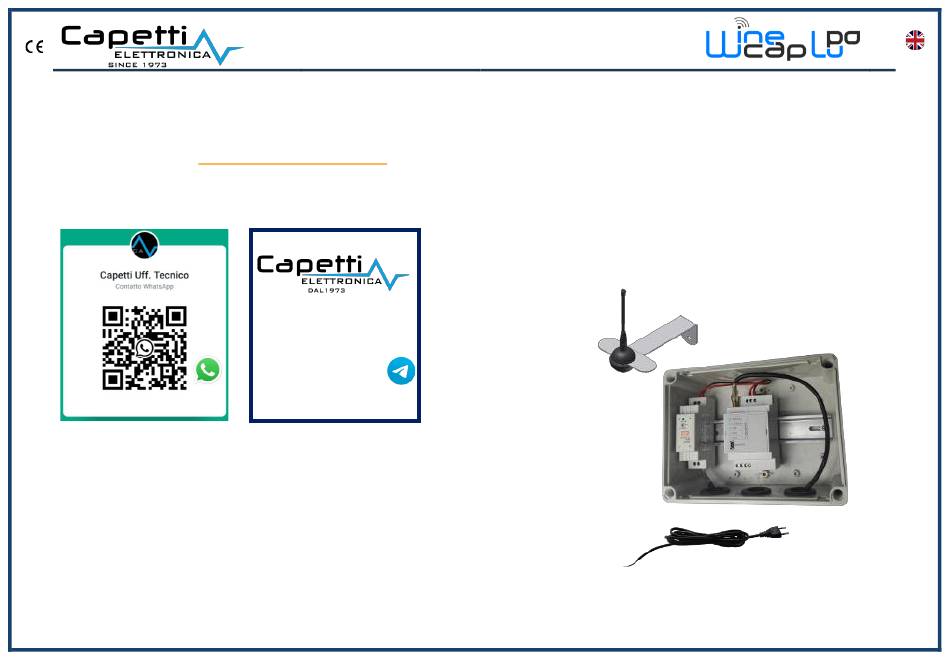

- Page 1 V3.0 Technical Assistance: Quick Guide eMail ufficiotecnico@capetti.it Phone +39 01198198238 MWDG-ETH-B Mobile +39 3331985070 Capetti Uff. Tecnico Contatto Telegram Whatsapp Telegram...

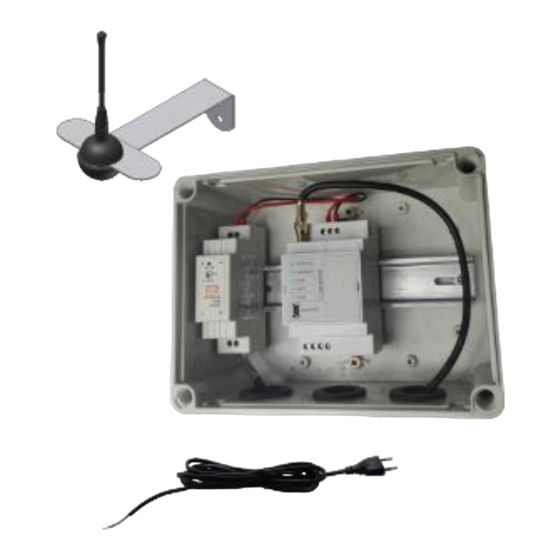

- Page 2 V3.0 System Components Notes WSN Antenna ANT-EXT 12/24V@0.5A Indicators HHDR1524 Power supply LAN Cable USB Cable WineCapManager...
- Page 3 V3.0 Service Center Connection Terminal Blocks 1. Connect to a LAN with working Internet connection. a. Network setup is automatic. In case of troubles or for further information refer to “MWDG-ETH Installation Manual” 2. Connection test: issue to basestation command 4 using WinecapKey.
- Page 4 V3.0 Led Description WineCapManager System indicator: 1. Launch Setup.exe from the WineCapManager folder ed • System slow flash = OK run the installation. • rapid flash = probe/datalogger enrolling 2. Launch WineCapManager and select “Local Connection”. Logger Memory status Service Center connection: 3.
- Page 5 V3.0 USB Driver Start Sensors 1. Connect USB cable to PC. 1. Connect MWDG as shown before, power up and verify Led “System” flashing 2. Access to Control Panel/Device Manager then click on MWDG device. 2. Activate the probe/datalogger: 3. Manually install the USB driver (MWDG_CDC.inf) a.
- Page 6 V3.0 4. Using the WD04T tester probe How to Install a. couple the probe to the system b. activated the test, the probe displays the percentage Guidelines to follow during the system installation of the radio signal level process c. Declares the radio reference in a specific point: router 1.
