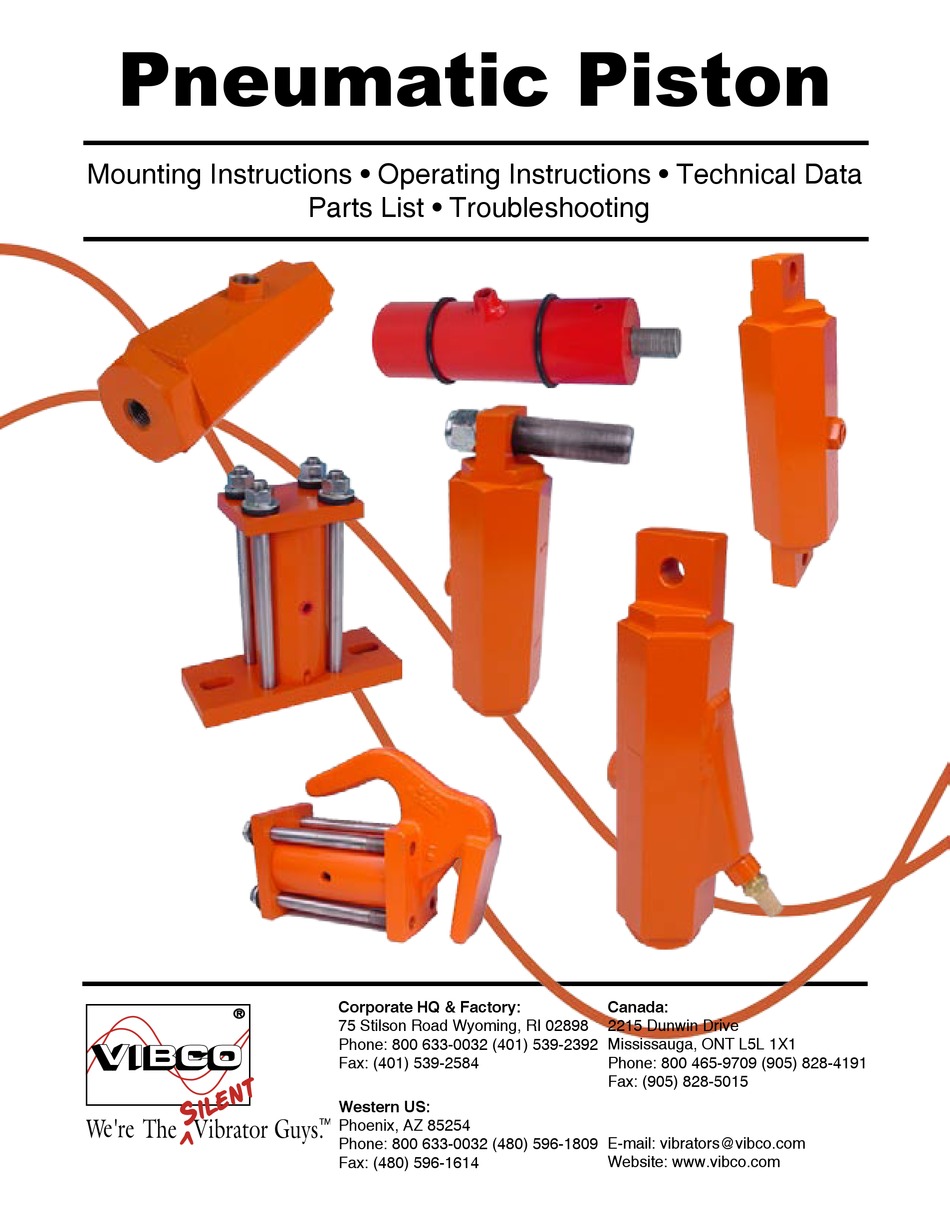

Pneumatic Piston
Mounting Instructions • Operating Instructions • Technical Data
� � ��
���
��
������ �����
�
^
Parts List • Troubleshooting
Corporate HQ & Factory:
75 Stilson Road Wyoming, RI 02898
Phone: 800 633-0032 (401) 539-2392
Fax: (401) 539-2584
Western US:
Phoenix, AZ 85254
��
Phone: 800 633-0032 (480) 596-1809
Fax: (480) 596-1614
Canada:
2215 Dunwin Drive
Mississauga, ONT L5L 1X1
Phone: 800 465-9709 (905) 828-4191
Fax: (905) 828-5015
E-mail: vibrators@vibco.com
Website: www.vibco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIBCO 50
Summary of Contents for VIBCO 50
- Page 1 Mississauga, ONT L5L 1X1 Fax: (401) 539-2584 Phone: 800 465-9709 (905) 828-4191 Fax: (905) 828-5015 Western US: � � �� ��� �� ������ ����� � Phoenix, AZ 85254 �� E-mail: vibrators@vibco.com Phone: 800 633-0032 (480) 596-1809 Website: www.vibco.com Fax: (480) 596-1614...
-
Page 2: Table Of Contents
Thank you for choosing VIBCO, Inc. for your vibration needs. You are now the owner of the finest pneumatic piston vibrator available today, backed by complete manufacturer confidence in its quality and dependability. For reference, please complete the information below about your new VIBCO vibrator. - Page 3 Some models (-EM suffix) are equipped with an exhaust manifold to lead off exhausting air. Contact VIBCO if you would like more information.
- Page 4 Connect pneumatics. FILL OUT WARRANTY CARD!!!! NOTES ABOUT INSTALLATION If you have any questions consult the Mounting Instructions section of this manual or call VIBCO Technical Support at (800) 633-0032. Mounting Plate For force up to 100 lbs. use a 1/4 in. thick plate, 100 to 500 lbs. use a 3/8 in. to 1/2 in. thick plate and over 500 lbs.
- Page 5 3 inches, skip 1 to 2 inches and repeat until securely mounted. NOTE: for a list of alternate mounting brackets, see pg. 35 of the VIBCO General Catalog. Placement For coarse materials the vibrator should be mounted approximately 1/3 of the distance from the discharge opening to the top of the sloped portion of the bin.
- Page 6 One Vibrator For A Double Bin 4 in. Channel 3/8” Gussets 4 in. Square Tubing Mounting Plate Vibrator Thin Skinned Bin Angle Iron Stiffeners Corner Mount Bin With Stiffeners Instead of Channel Iron PHONE: 1-800-633-0032 FAX: 1-401-539-2584 WWW.VIBCO.COM VIBRATORS@VIBCO.COM...
- Page 7 1/3 from the back. Do not operate back vibrator until bin is empty in front and the front vibrator has turned off. For more details, consult VIBCO. 1/3L As Close As Possible 1/3W Screw Conveyors Feeds from back.
- Page 8 F, it is advisable to use a “heat” mount to prevent excessive heat from reaching the vibrator and causing overload or bearing failure. Also, ask for “high” temperature grease in vibrator bearing. Consult VIBCO for vibrator size. 450-500 10 in. Channel Iron 2-1/2 TO 3 FT 8 in.
-
Page 9: Custom Mounting
• Chutes must have an inclination of at least 10 for vibrators to be able to move the material. If inclination is less the chute has to be made into a feeder. Contact VIBCO for selecting the proper size vibrator or ask for the bulletin covering chutes. - Page 10 Installation of the Vibrator It is now time to put the VIBCO vibrator in place. Make sure that it is secured tightly. Retighten the bolts after the first 10 to 15 minutes of operation and check them periodically to maintain proper tightness (figures 1 and 2).
- Page 11 CFM. 2" & UP 1/2" 1/2" 15 - 50 * F=filter R=regulator L=lubricator Flow Valve ** these specs for installation of single unit; A simple flow control valve is recommended to allow “tuning” the vibrator to the desired force.
- Page 12 Maximum Air Pressure The operating pressure of the vibrator should not exceed 80 psi unless specially contructed for higher pressure standards by VIBCO. Maximum Temperature The operating temperature of the vibrator should not exceed 200 F (93 C). High temperature units are available.
-
Page 13: Operating Instructions
4. Did you mount the air regulator far enough away from the quick acting valve for the right amount of air pressure to build up? 5. Is the vibrator mounted horizontally? If so, did you get the model with the spring? PHONE: 1-800-633-0032 FAX: 1-401-539-2584 WWW.VIBCO.COM VIBRATORS@VIBCO.COM... - Page 14 Field repairs of piston vibrators are limited to replacing bolts, nuts, washers, o-rings and rubber shocks. Any other repairs should be done at VIBCO. Bolt breakage is caused by: 1) Air pressure in excess of 80 psi. 2) Loose mounting bolts.
-
Page 15: Model 50,55, & Li
Over 70000 * This data is furnished as a guide in estimating the sizes of piston vibrators for standard hopper shapes containing dry, granular materials of 50 lbs/cu. ft. minimum bulk density. For other sizes and densities, contact VIBCO. PHONE: 1-800-633-0032 FAX: 1-401-539-2584 WWW.VIBCO.COM... -
Page 16: Model 42
PHONE: 1-800-633-0032 * The following data is furnished as a guide in estimating the sizes of piston vibrators for FAX: 1-401-539-2584 standard hopper shapes containing dry, granular materials of 50 lbs/cu. ft. minimum bulk WWW.VIBCO.COM VIBRATORS@VIBCO.COM density. For other sizes and densities, contact VIBCO. -
Page 17: Model 42
8000-20000 This data is furnished as a guide in estimating the sizes of piston vibrators for standard hopper shapes containing dry, granular materials of 50 lbs/cu.ft. minimum bulk density. For other sizes and densities, contact VIBCO. PHONE: 1-800-633-0032 FAX: 1-401-539-2584 WWW.VIBCO.COM... - Page 19 VIBCO, INC. In Canada: P.O. Box 8 2215 Dunwin Drive Wyoming, RI 02898 Mississauga, Ont. L5L 1X1 Phone: 401-539-2392 905-828-4191 800-465-9709 800-465-9709 FAX: 401-539-2548 FAX: 905-828-5015 Model 55 Air Piston Vibrator HOUSING SPRING PISTON O-RING PLUG SNAP RING 55-1" 100PS18...
-
Page 26: Warranty & General Information
WARRANTY AND GENERAL INFORMATION Warranty All warranty claims must be submitted to VIBCO for approval prior to any repairs being done. Failure to do so will void any and all warranty coverage. Errors, Shortages and Complaints Complaints concerning goods received or errors should be made at once. Claims must be made within five days after receipt of goods. - Page 27 Corporate HQ and Factory PISTON-SVC2...
