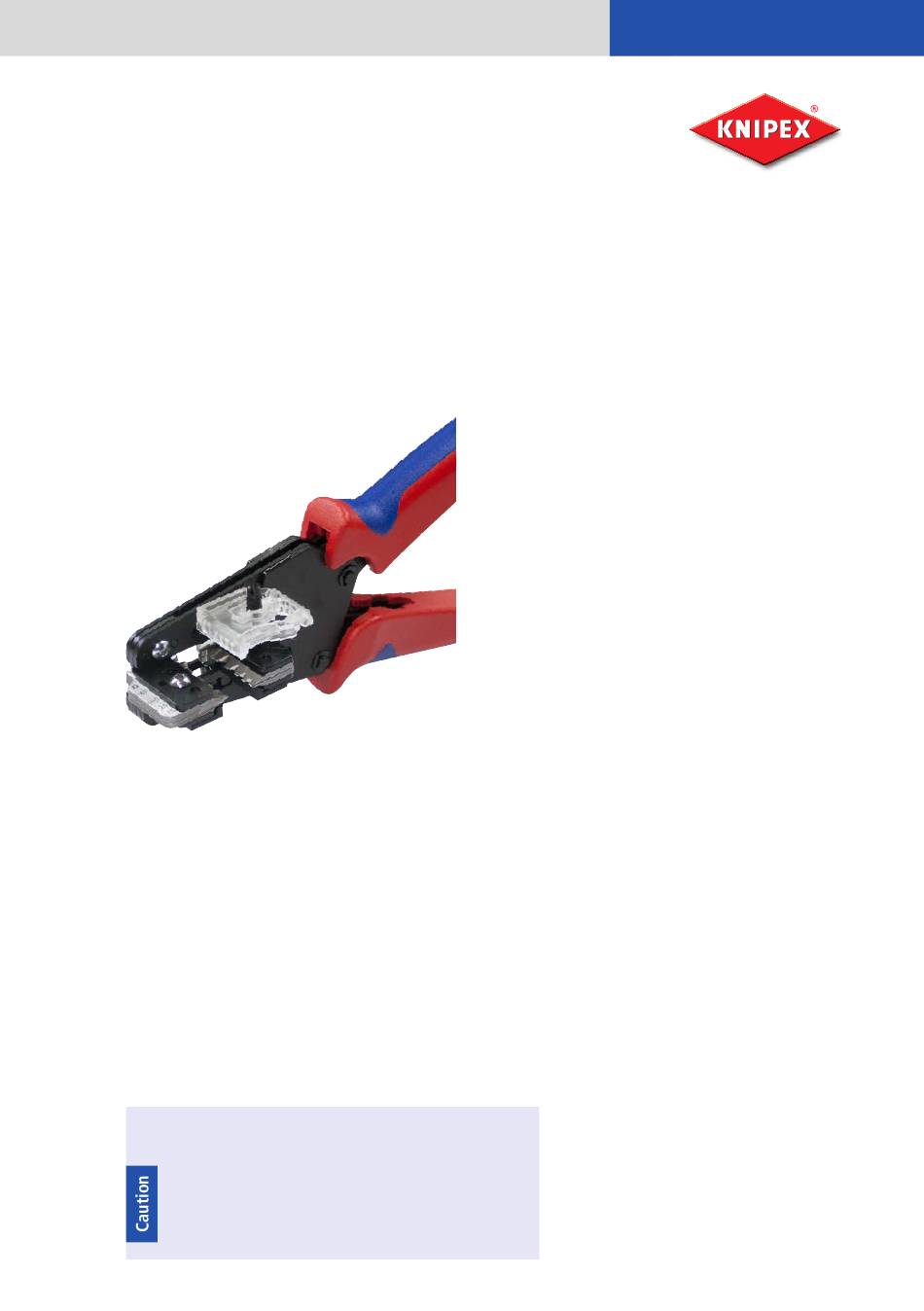

KNIPEX 12 12 14 Operating Instructions

Special-purpose insulation stripper

Operating Instructions – Special-purpose insulation stripper

1. Preface / Safety guidelines

These Operating Instructions are intended to help you learn about the

special-purpose insulation stripper and use it correctly for its intended

purpose.

These Operating Instructions contain important information about the safe

and efficient operation of the tool. By following these instructions, you can

avoid risks and dangers, reduce downtime and repair costs, and extend

the service ife of the equipment. This special-purpose insulation stripper

features state-of-the-art technology and complies with recognised safety

regulations. It must be used only when in perfect working order and when

due care is given to hazards and operator safety.

The insulation stripper must be used only

for the purpose described in the Operating

Instructions. The manufacturer is not liable for any

damages that occur as a result of unauthorized

modifications made to the insulation stripper or

its improper use. Always isolate wires from the

power supply

Contents

1. Preface / Safety guide ines

4. Limitation of liabi ity

5. Maintenance and repair

Table of Contents

Do you have a question about the 12 12 14 and is the answer not in the manual?

Page 1 Operating Instructions – Special-purpose insulation stripper Contents 1. Preface / Safety guide ines 2. Configuration / Design 3. Operating the tool 4. Limitation of liabi ity 5. Maintenance and repair 1. Preface / Safety guidelines These Operating Instructions are intended to help you learn about the special-purpose insulation stripper and use it correctly for its intended purpose.
Page 2 2. Intended use The special-purpose insulation stripper enables high-qua ity, non- destructive stripping and desheathing for all electrical single- and multi- core cables with a 0.03–16 mm² cross-section (AWG 32 - 6). The tool can be used for hybrid leads with diameters of up to 10 mm and Teflon cables with a 2 mm²...
Page 3 Operating the tool Fig. 2 By compressing the length stop (9), move it to the desired strip length indicated on scale (12) Set the cable cross-section (marked on the blade) at the corresponding cutting point. Abb. 2 Fig. 3 Insert the cable against the length stop (9, Fig.
Page 4 Changing the blade Danger of injury from sharp blades ! Loosen the Allen head bolt (13). Close the tool and remove blades 5 to 8 (change a complete blade unit each time). Insert the new blades (5 to 8) on the locking pins (14) on blade holders 4) (smooth side facing inwards) and return the tool to its starting position.
