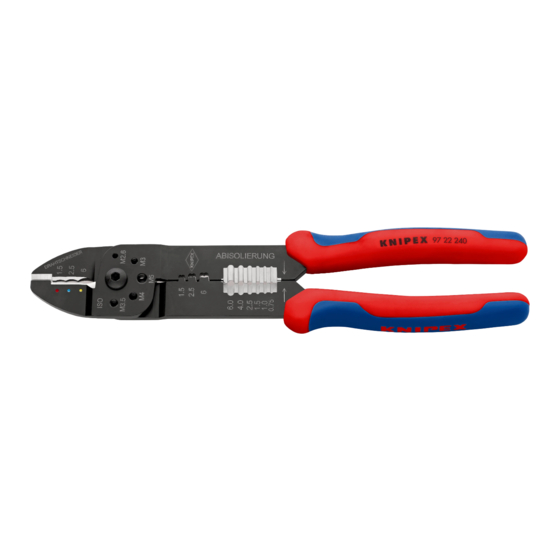

- Page 1 KNIPEX Quality – Made in Germany Operating instructions 97 22 240 Crimping Pliers for insulated terminals/cable connectors and non-insulated open plug type connectors M3.5 M2.6 ISOL 0.75...
-
Page 2: Table Of Contents
CONTENTS General Notes on operating instructions Symbols Copyright Guarantee and warranty Safety Intended use Design and function Design Function Operation Shortening cables Stripping cables Making an oval crimp B-crimp connection Cutting copper or brass threaded bolts Maintenance Technical data Disposal Status: 26.10.21... -
Page 3: General
1.3 Copyright These operating instructions and all documentation supplied with this tool are protected by copyright and remain the property of KNIPEX. The reprinting of these instructions, even in extract form, is only permitted with the written consent of C. Gustav Putsch KG. -
Page 4: Guarantee And Warranty
• Repairs or conversions are carried out by unauthorized persons. • No original accessories or spare parts from KNIPEX are used. • Defective components are not repaired immediately to minimise the extent of the damage and so as not to impair the safety of the tool (obligation to repair). -
Page 5: Safety
SafETy Safety Observe the following safety instructions when handling the product. 2.1 Intended use The tool is intended for the following uses: • Cutting cables (up to 6 mm²) • Stripping cables (0.75 to 6 mm²) • Crimping insulated terminals and plug type connectors (0.5 to 6 mm²) on fine conductor cables •... -
Page 6: Design And Function
DESiGN aND fuNCTiON Design and function 3.1 Design M2,6 - M5 M3.5 M2.6 ISOL 0.75 0,5 - 6 mm 1,5 - 2,5 mm Design crimping pliers Cable cutter Crimping points for oval crimp connections (insulated terminals and cable connectors) Threaded holes for cutting copper or brass threaded bolts with M 2.6;... -
Page 7: Operation
OpEraTiON Operation 4.1 Shortening cables Cutting cables 1. Insert the end of the cable to be shortened between the two blades of the cable cutter. 2. Press the crimping pliers closed. 4.2 Stripping cables Stripping cables 1. Select the stripping setting that matches the capacity of the cable (0.75 ... -
Page 8: Making An Oval Crimp
OpEraTiON 4.3 Making an oval crimp Making an oval crimp Note: The conductor and connector must match each other in terms of their ca- pacitance values. The stripping length and positioning of the conductors in the connector must meet the respective requirements of the different connectors. -
Page 9: B-Crimp Connection
OpEraTiON 4.4 B-crimp connection 4.4.1 Make the B-crimp correctly Standard DIN EN 60352-2:1994 + A1:1997 + A2:2002 specifies the proper- ties that a qualitatively perfect crimp connection must satisfy. The following figure shows the most important points to consider when making a B-crimp. - Page 10 OpEraTiON 4.4.2 Making a B-crimp Making a B-crimp Note: The conductor and connector must match each other in terms of their ca- pacitance values. The stripping length and positioning of the conductors in the connector must meet the respective requirements of the different connectors.
-
Page 11: Cutting Copper Or Brass Threaded Bolts
4. Unscrew the bolt from the threaded hole. The thread is then recut. Maintenance Oil the joint of the tool regularly. Technical data Technical data Unit Article number – 97 22 240 Length Weight Properties – Pliers black-lacquered, handles with multi-component grips Application –... - Page 12 KNIPEX-Werk C. Gustav Putsch KG 42337 Wuppertal Tel.: +49 202 – 47 94-0 Fax: +49 202 – 47 74 94 info@knipex.com www.knipex.com...
