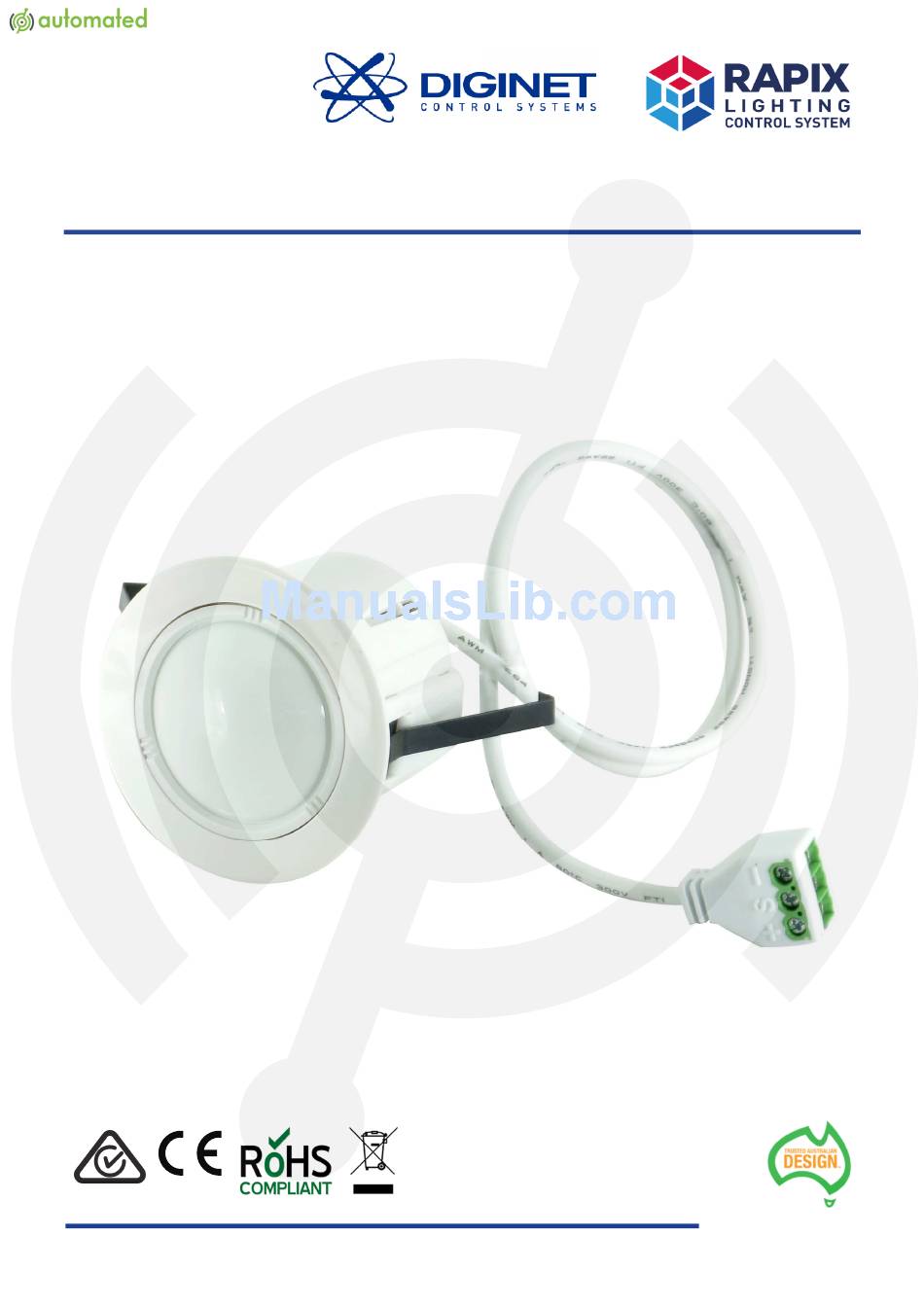

- Page 1 JOSEPH JOUKHADAR sels@automated.net.au +61 2 9247 0731 Suite 4, Level 5 37 Pitt Street Sydney NSW 2000 Installation Guide DGOZ-OS-PIR-360 PIR Occupancy Sensor Designed in Australia to meet Australian Standards and installation conditions DIGINET.NET.AU...
-
Page 2: Product Package Contents
4. Product summary and capabilities A compact, low profile 360˚ passive infrared (PIR) occupancy sensor for connection to a RAPIX eHub. The sensor includes a detection lens which senses both Minor and Major Movement (as defined by NEMA Standard WD 7 - 2011 for Occupancy Motion Sensors). - Page 3 7. Connecting the PIR Occupancy Sensor to a RAPIX eHub The PIR Occupancy Sensor is only suitable for use with the RAPIX eHub. The PIR Occupancy Sensor can be connected and powered from one of the two eHub sensor inputs.
-
Page 4: Operation And Configuration
RAPIX Lighting Control System RAPIX PIR Occupancy Sensor 8. Operation and Configuration Upon power-up the sensor performs an initialisation which takes approximately 45 seconds. Once the initialisation is complete, normal operation commences and full sensitivity is reached after a period of approximately 5 minutes. -
Page 5: Product Specifications
RAPIX Lighting Control System RAPIX PIR Occupancy Sensor 9. Presence/Occupancy Detection The sensor head has two distinct detection sensitivity zone categories, major movement and minor movement. (Occupancy) is defined as a 60kg person, walking at >1m/s, across the field of view, with a Major Movement background ambient temperature of 20°C. -
Page 6: Product Dimensions
RAPIX Lighting Control System RAPIX PIR Occupancy Sensor 11. Product dimensions 12. Standards and compliance The product is designed to meet/exceed the following Australian and International standards: Australian/New Zealand EMC and Electrical Safety Frameworks and Standards Regulation Standard Title AS/NZS CISPR 22:2009 Information Technology Equipment –... -
Page 7: Product Warranty
RAPIX Lighting Control System RAPIX PIR Occupancy Sensor 13. Product warranty The PIR Occupancy Sensor has a two-year warranty against manufacturing defects in accordance with the following terms: Nothing in this Warranty affects any person's rights under the Australian Consumer Law. The benefits to any person under the Gerard Lighting Warranty are in addition to the rights and remedies available under any Consumer Guarantees. - Page 8 Gerard Lighting Pty Ltd (Gerard Lighting) reserves the right to alter the specifications, designs or other features of any items and to discontinue any items at any time without notice and without liability. While every effort is made to ensure that all information in this user and installation guide is correct, no warranty of accuracy is given and Gerard Lighting shall not be liable for any error.
