International registered trademark n. 804888
QUICK START

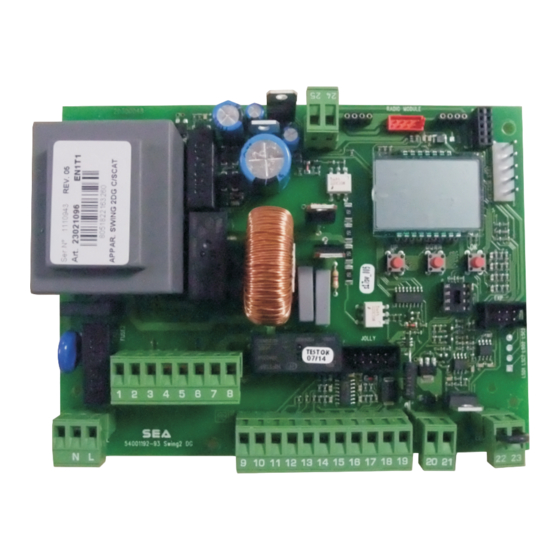

SWING 2 DG R2F
SWING 2 DG
R2BF
FULL MANUAL
(Rev. 12)
&
SAFETY
INFORMATION
SEA
S.p.A.
Zona Industriale Sant' Atto - 64100 - Teramo - ITALY
Telephone: + 39 0861 588341 - Fax: + 39 0861 588344
www.seateam.com
67412260
REV. 00 - 06/2022
Advertisement
Related Manuals for SEA SWING 2 DG R2F
Summary of Contents for SEA SWING 2 DG R2F
- Page 1 IT - EN - FR International registered trademark n. 804888 QUICK START SWING 2 DG R2F SWING 2 DG R2BF FULL MANUAL (Rev. 12) & SAFETY INFORMATION S.p.A. Zona Industriale Sant’ Atto - 64100 - Teramo - ITALY Telephone: + 39 0861 588341 - Fax: + 39 0861 588344 www.seateam.com...
-
Page 2: Technical Information
ENGLISH Italiano International registered trademark n. 804888 PRELIMINARY SWING 2 DG JOLLY 3 SEACLOUD JOLLY 3 SEACLOUD SWING 2 DG R2F 03.01 SWING 2 DG R2BF 00.02 TECHNICAL INFORMATION 230V - 50/60 H IP 55 30 mA -20° C +50°C... - Page 3 RY CONTACTRELAY OTOR CONTROL TRIAC USE ACCESSORIES START RF FIX 6.3AT (230V) 10AT (115V) OTOR RELAY MODULE RF UNI OURTESY LIGHT RELAY OWER TRANSFORMER MODULE MODULE 500mA, (30 mA) SWING 2 DG R2F «FC» 250V; * * * R2 DRY CONTACT...
- Page 4 ENGLISH Italiano International registered trademark n. 804888 2 - MAIN WIRINGS EXAMPLE OF START, PARTIAL START, EXAMPLE OF LIMIT SWITCH WIRINGS STOP AND PHOTOCELLS WIRINGS MOTOR LIMIT SWITCH MOTOR LIMIT SWITCH 11 12 14 15 16 17 18 19 M2 CL. M1 OPENING COMMON M1 CLOSING...
-
Page 5: Inputs Status
ENGLISH Italiano International registered trademark n. 804888 3 - OPERATOR WIRING ON CONTROL UNIT MOTOR 1 (230V) MOTOR 2 (230V) 1 (NM1) = NEUTRAL M1 4 (NM2) = NEUTRAL M2 2 (OPM1) = OPENING M1 5 (OPM2) = OPENING M2 3 (CLM1) = CLOSING M1 6 (CLM2) - Page 6 ENGLISH Italiano International registered trademark n. 804888 6 - «START» COMMAND QUICK LEARNING ON THE TX HOLD PRESSED 0 0 11111 0 5 SECONDS OWER 11110000 PRESS EXIT STORED BUTTON MENU DOWN 7 - WORKING TIMES LEARNING DANGER! AVE A QUALIFIED SERVICE PERSON TO CARRY OUT THE OPERATIONS IN SAFE CONDITIONS QUICK START - ONLY FOR SLIDING OPERATORS...
- Page 7 SWING 2 DG (R2F) - (R2BF) MENU FUNCTIONS TABLE THE DESCRIBED FUNCTIONS ARE VALID FOR ALL SWING 2 DG VERSIONS, EXCEPT WHERE EXPRESSLY STATED MENU DESCRIPTION DEFAULT NOTE Italiano Italian English English 1 LANGUAGE Français English French Español Spanish Dutch Dutch Start Start...
- Page 8 MENU DESCRIPTION DEFAULT NOTE Semi-automatic logic enabled (a START command opens and another START closes the gate - automatic reclosing disabled) 7 TIMER TO CLOSE To set a pause time (from 1 second to 4 minutes) before the automatic reclosing The Start command is not accepted during pause 8 START IN PAUSE The Start command is accepted during pause...
-
Page 9: Special Menu
SPECIAL MENU PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU THE DESCRIBED FUNCTIONS ARE VALID FOR ALL SWING 2 DG VERSIONS, EXCEPT WHERE EXPRESSLY STATED SPECIAL MENU DESCRIPTION DEFAULT NOTE 26 LEAF DELAY IN OPENING Off Setting from OFF to 6 seconds 27 LEAF DELAY IN CLOSING Off Setting from OFF to 20 seconds... - Page 10 SPECIAL MENU DESCRIPTION DEFAULT NOTE ON = Encoder enabled 32 ENCODER OFF = Encoder disabled (when OFF, the working times learnt are only shown) To display the learnt value during the working times self learning, in 65 OPENING TIME M1 xxx.s opening and closing (Motor 1) .
- Page 11 SPECIAL MENU DESCRIPTION DEFAULT NOTE In case of obstacle or safety edge it totally reverses the Total movement during closing. If the automatic reclosing is enabled (automatic logic) , it is attempted for 5 times 46 CLOSING INVERSION Partial In case of obstacle, safety edge or potentiometer, it Partial partially reverses direction (of about 30 cm) then stops For menus 47 - 48 - 49 - 50 see menu 32- ENCODER = On...
- Page 12 SPECIAL MENU DESCRIPTION DEFAULT NOTE 77 LOCK TIME 5 seconds To adjust the lock release time from 0 to 5 seconds Only opening Lock enabled only before opening Opening 78 LOCK Only closing Lock enabled only before closing closing Opening and closing Lock enabled before opening and closing Only opening If the gate is forced manually, the control unit starts the...
- Page 13 SPECIAL MENU DESCRIPTION DEFAULT NOTE The pause time in partial opening is the same as in total = Start opening 91 PARTIAL PAUSE = Start Disabled Adjustable from 1 second to 4 minutes The selected input will be turned into an input (on CN1) 92 TIMER On photo2 to which connect an external clock...
- Page 14 SPECIAL MENU DESCRIPTION DEFAULT NOTE If the photocell is occupied during closing, the gate Closing reverses the movement; If the photocell is occupied during the pause, it prevents the gate reclosing If the photocell is occupied during opening or closing, it Opening and closing stops the gate movement;...
- Page 15 SPECIAL MENU DESCRIPTION DEFAULT NOTE Automatic Automatic detection of the limit switch Only opening Limit switch enabled only in opening Auto- 104 SELECT LIMIT SWITCH Only closing Limit switch enabled only in closing matic To be enabled if the operator is equipped with an inner Motor internal limit switch that stops the motor phase 106 DIAGNOSTICS...
- Page 16 International registered trademark n. 804888 SEA S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Tel. +39 0 861 588341 r.a. Fax +39 0 861 588344 www.seateam.com...
