- Page 1 Installation instructions OR1 SCB CONTROL Rel. 3.0...
- Page 2 04-2022 Copyright © All product illustrations, product descriptions, and texts are the intellectual property of KARL STORZ SE & Co. KG. Their use and reproduction by third parties require the express approval of KARL STORZ SE & Co. KG. All rights reserved.
-
Page 3: Table Of Contents
Identical equipment ...................... 27 5.5 Presets ............................29 5.5.1 Saving Presets ......................30 5.5.2 Deleting Presets ......................32 5.6 HIVE certificates ......................... 33 5.7 Configuration ..........................34 5.7.1 Autologon ........................34 5.7.2 Starting VNC server service ..................35 Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 4 8.3 Disposing of the product ......................45 9 Accessories and spare parts ......................46 9.1 Accessories ..........................46 10 Errors and messages ......................... 47 10.1 Troubleshooting ......................... 47 11 Software user rights ........................... 48 12 Subsidiaries ............................49 Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 5: General Information
Installation and putting into service must only be performed by authorized, electrotechnically qualified specialists from KARL STORZ SE & Co. KG or by an authorized contractual partner. Configurations can only be carried out by administrators with a special administrator login. -
Page 6: Description Of Warning Messages
Designates a possible imminent risk. If this is not avoided, it could lead to minor injuries. NOTICE NOTICE Designates a possibly harmful situation. If this is not avoided, the products could be damaged. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 7: Safety And Warning
Have the device installed and put into service by authorized and trained electricians of KARL STORZ SE & Co. KG or by companies authorized by KARL STORZ. Use either the power cord supplied by KARL STORZ or a power cord which has the same properties and which bears a national mark of conformity. -
Page 8: Damage Due To Ingress Of Liquid In Electrical Components
Do not open the product. Have servicing carried out by KARL STORZ or a company authorized by KARL STORZ. Failure to do so will void the guarantee. - Page 9 Observe the information on electromagnetic compatibility, Electromagnetic compatibility. In case of uncertainties, seek expert advice from KARL STORZ. Before use, a clinical/biomedical engineer or an EMC specialist should carry out an ad-hoc test of the electromagnetic radiation.
-
Page 10: Product Description

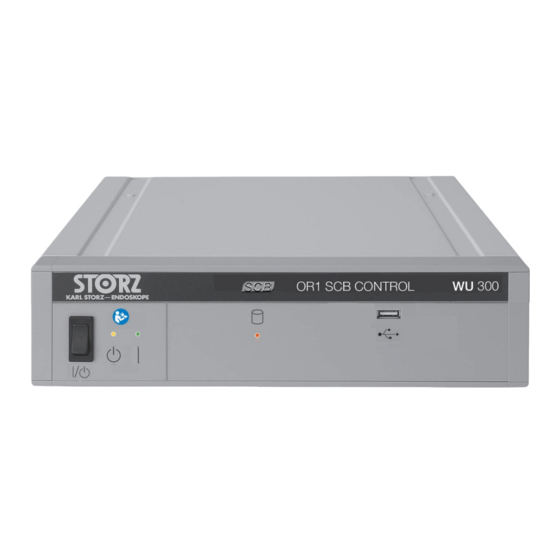

Modular design – Possibility of later extensions 3.2 Device overview OR1 SCB CONTROL - front panel Rocker switch ON/OFF LED, red, hard disk access LED, yellow, Standby USB port LED, green, ready for use Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 11: Possible Combinations
KARL STORZ Touch Screen 21.5" WM100 KARL STORZ Touch Screen 24" WM101 KARL STORZ Touch Screen 21.5" 20090621 KARL STORZ Touch Screen 24" 20090624 OR1 Panel PC 21.5'', InWall W22168-W OR1 Panel PC 21.5'', Stand-Alone W22168-S Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 12: Basic Configurations
Additional costs may be incurred here. Any changes to the hardware or software which are not authorized by KARL STORZ void the approval for medical use, the guarantee, and the manufacturer’s warranty. If necessary, contact your KARL STORZ staff member to enquire about available and compatible hardware and software... - Page 13 OR1 SCB CONTROL connection diagram with touch monitor KARL STORZ touch monitor HIVE device (e.g. PowerLED Rubina TL400) OR1 SCB CONTROL OR1 table interface KARL STORZ SCB device with STORZ Commu- RF device (e.g. AUTOCON III 300, 400, BOWA nication Bus Arc 400, ERBE VIO 3) Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 14: Technical Data
HIVE device (e.g. PowerLED Rubina RF device (e.g. AUTOCON III 300, 400, TL400) BOWA Arc 400, ERBE VIO 3) 3.4 Technical data Power supply Power supply (AC) 100 – 240 V Operating frequency 50 – 60 Hz Power input 5 – 2 A Operating mode Continuous operation Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 15: Symbols Employed
Manufacturer Date of manufacture Medical device Article no. Serial number Number of products in the product packaging Unique Device Identifier Consult the printed or electronic instructions for use Fragile, handle with care Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 16: Symbols On The Device
The potential equalization is responsible for equalizing the potentials of differ- ent metal parts that can be touched at the same time, or for reducing potential differences that could occur between the body, electromedical devices, and external live parts during use. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 17: Symbols On The Type Plate
3.6 Ambient conditions Storage and Transport Conditions Temperature -10 °C ... +60 °C (14 °F ... 140 °F) Relative humidity 5 – 95 % Air pressure 500 – 1,080 hPa Operating conditions Temperature 10 °C ... 40 °C (50 °F ... 104 °F) Relative humidity 20 – 80 % Air pressure 700 – 1,080 hPa Max. operating altitude 3,000 m Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 18: Preparation
The instructions for use of the products used in combination must be followed. ü The product is on an even surface. ü The clearance dimensions are observed, Setting up the product. Connect the potential equipotential cable. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 19 If the product is connected to multiple devices via a portable multiple socket outlet on a cart, the following measures apply: Note the maximum permitted leakage current of the housing. If necessary, use an isolation transformer. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 20: Installation And Commissioning
The information and warnings for the connected equipment are shown in the header. The warnings continue to be displayed as long as they are relevant and must be noted. For more information see chapter ‘Messages’ in the instructions for use. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 21 Depending on the configuration, other OR1 components can be accessed via the navigation, such as KARL STORZ AIDA, OR1 FUSION or AV system NEO. The widgets (compact menus) can be displayed and hidden using the overview button on the right-hand side of the navigation bar.
-
Page 22: Icons On The User Interface
We recommend changing the passwords for all user roles upon putting into service. This ensures that nobody can access the device without authorization. Do not forget the new password and give the User the newly assigned password for his user role. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 23: Settings
5.4.1 Setting the language The default system language is set to English. The system language can be changed as follows: Select Options in the menu bar. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 24: Opening Maintenance Manager
5.4.2.1 Assigning and deassigning aliases Common names can be used for certain connected equipment. The aliases are specified by the system and can be assigned separately for each language. Each alias may only be used once. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 25 5.4.2.3 Importing presets and settings Presets and settings can only be imported when a USB storage device is plugged in. Only then is the button Import presets and settings active in the Maintenance Manager. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 26: Device Setup
If the test is failed, a preset will not be added. The import of data is backward compatible, i.e., only data from older or identical KARL STORZ SCB software versions are imported. If the amount of available equipment has already been restricted, the import adds missing equipment and the presets remain consistent. -
Page 27: Identical Equipment
In the SCB network several identical items of equipment of an equipment type can be operated and controlled centrally from the KARL STORZ SCB software. To be able to distinguish between the identical items of equipment, they are each assigned an individual identifying code. The codes assigned are valid for the entire KARL STORZ SCB and all configurations. - Page 28 If relevant, remove the stickers #1, #2 and #3 from the equipment. The numbers can only be removed in descending order, i.e., the code 1 can only be removed after the codes 2 and 3 have been removed. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 29: Presets
ð The selected line is shown in bold and the pieces of equipment react, See section Assigning codes [p. 27]. Confirm with OK to replace the failed equipment. 5.5 Presets Equipment and their settings are managed under Presets. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 30: Saving Presets
Standby Set the connected equipment to Standby if the equipment supports this function. 5.5.1 Saving Presets Up to 250 Presets can be saved. Select Presets in the menu bar. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 31 If all items of equipment are not deleted from the list within 45 seconds, an error dialog appears. The error dialog includes information on the non-synchronized equipment and measures to remedy the problem: Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 32: Deleting Presets
Installation and commissioning 5.5.2 Deleting Presets Select Presets in the menu bar. Tap on Delete..Select the desired Preset. Confirm with OK to delete the selected Preset. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 33: Hive Certificates
The update to OR1 SCB CONTROL Rel 3.0 requires the installation of the corresponding HIVE certificates via the shortcut Get Hive Certificate on the desktop before this new bus system will be supported. This step must be performed by an authorized service employee. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 34: Configuration
Log in using the system administrator account (user name OR1Admin , password or1admin ). ð The autologon shortcut appears on the desktop. Double click on the autologon shortcut and confirm the licence conditions with Agree. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 35: Starting Vnc Server Service
The VNC server service enables communication between OR1 SCB CONTROL and, for example, the KARL STORZ AIDA®. The VNC service does not need to be started, if KARL STORZ SCB is run standalone. Log in using the system administrator account (user name OR1Admin , password or1admin ). - Page 36 Double click on TightVNC Server or right click and select Properties . Set the Startup type to Automatic . Confirm by pressing Apply and OK. Restart OR1 SCB CONTROL. ð The VNC server service is running. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 37: Switching Off The Product
ð The software is shut down and the product is switched off. Switch off all connected devices. If the Exit button is pressed for two seconds or longer, the user is logged off but the product does not shut down. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 38: Equipment
UROMAT E. A. S. I. UP410 Motor systems Unidrive S III UNIDRIVE S III 20701020-1 Unidr. S III ARTHRO UNIDRIVE S III ARTHRO 28723020-1 Unidr. S III ENT UNIDRIVE S III ENT 40701620-1 Unidr. S III NEURO UNIDRIVE S III NEURO 40701720-1 HF devices Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 39: Universal Or-Light, Or-Light Cam
The control panels on the illumination units have a higher priority status than the KARL STORZ SCB software. 6.2.1 Setting the OR camera and operating light To operate the OR camera and operating light, these must be configured beforehand. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 40 ð The control panel shows all active functions. When you change between the individual tabs, a plausibility check is performed on the settings. Use the Cancel button to discard the settings you have selected. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
-
Page 41: Operating Tables
Flex (center of the body elevated) – Reverse Flex (center of the body low) – 0-Level (straight) 6.3.1 Configuration of operating tables In the Options menu select the item Device Setup . Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 42: Hf Devices
The VIO3 must be configured as follows in order for it to be able to work with the SCB software: Select Menu. Select Service. Enter the service password VIO3 . Select System Integration. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 43 Equipment Select KARL STORZ OR1 and ensure that the KARL STORZ OR1 is activated. Adjust the IP address and the subnet mask as follows: If the settings have been changed, the VIO3 must be restarted before it can be operated with the SCB software.
-
Page 44: Data Backup And Reorganization
Further backups can also be carried out in the Maintenance Manager, See section Exporting presets and settings [p. 25]. The separate update instructions included in the update packet provide information about the software update. Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 45: Maintenance, Servicing, Repairs, And Disposal
8.2 Repairs to the product Repair work may only be performed by KARL STORZ or by a company authorized by KARL STORZ. Please contact your local KARL STORZ subsidiary or authorized dealer (see the list of subsidiaries). -
Page 46: Accessories And Spare Parts
SCB connecting cable, length 750 cm 20090470 SCB connecting cable, length 1.500 cm 20090570 SCB connecting cable, length 2.300 cm 20090670 SCB connecting cable, length 3.000 cm 20090770 SCB connecting cable, length 3.700 cm 20090870 Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 47: Errors And Messages
Replace or insert cable The OR1 SCB CONTROL com- Incorrect SCB cable Replace or insert cable puter is switched off for safety Faulty SCB cable Replace or insert cable reasons. Open SCB cable Remove cable Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... -
Page 48: Software User Rights
The user right is only valid for the delivered form and only for use in accordance with the printed instructions for use from KARL STORZ for the devices sold to the customer. Use of the software in connection with other devices bought by the customer from KARL STORZ or from third parties is prohibited. -
Page 49: Subsidiaries
KARL STORZ Industrial** Gedik Is Merkezi B Blok, Kat 5, D 38-39, Bagdat Cad. No: 162, Maltepe Istanbul, Turkey Phone: +90 216 442 9500, Fax: +90 216 442 9030 **Sales for Industrial Endoscopy Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR... - Page 50 No. 8 Commonwealth Lane #03-02, Singapore 149555, Singapore Phone: +65 69229150, Fax: +65 69229155 KARL STORZ ENDOSKOPE – East Mediterranean and Gulf (Offshore) S.A.L. E-mail: infoasia@karlstorz.com Spark Tower 1st floor Charles Helou St., Horch Tabet – Sin El Fil, Beirut, Lebanon...
- Page 51 Subsidiaries Installation instructions • OR1 SCB CONTROL • SBC232_EN_V2.0_04-2022_II_CE-MDR...
- Page 52 KARL STORZ SE & Co. KG Dr.-Karl-Storz-Straße 34 78532 Tuttlingen Postfach 230 78503 Tuttlingen Germany Phone: +49 7461 708-0 Fax: +49 7461 708-105 E-mail: info@karlstorz.com www.karlstorz.com...
