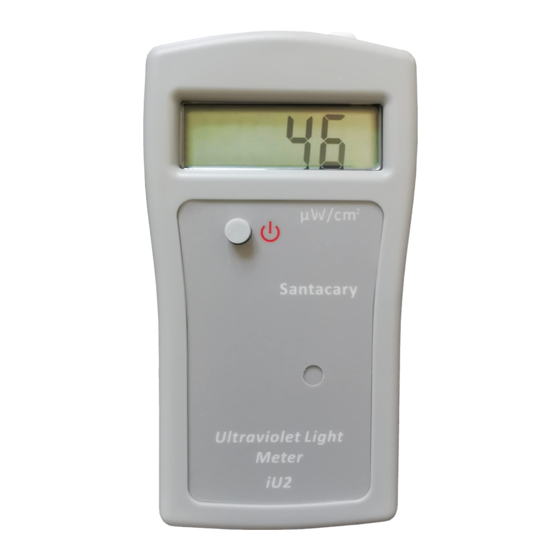

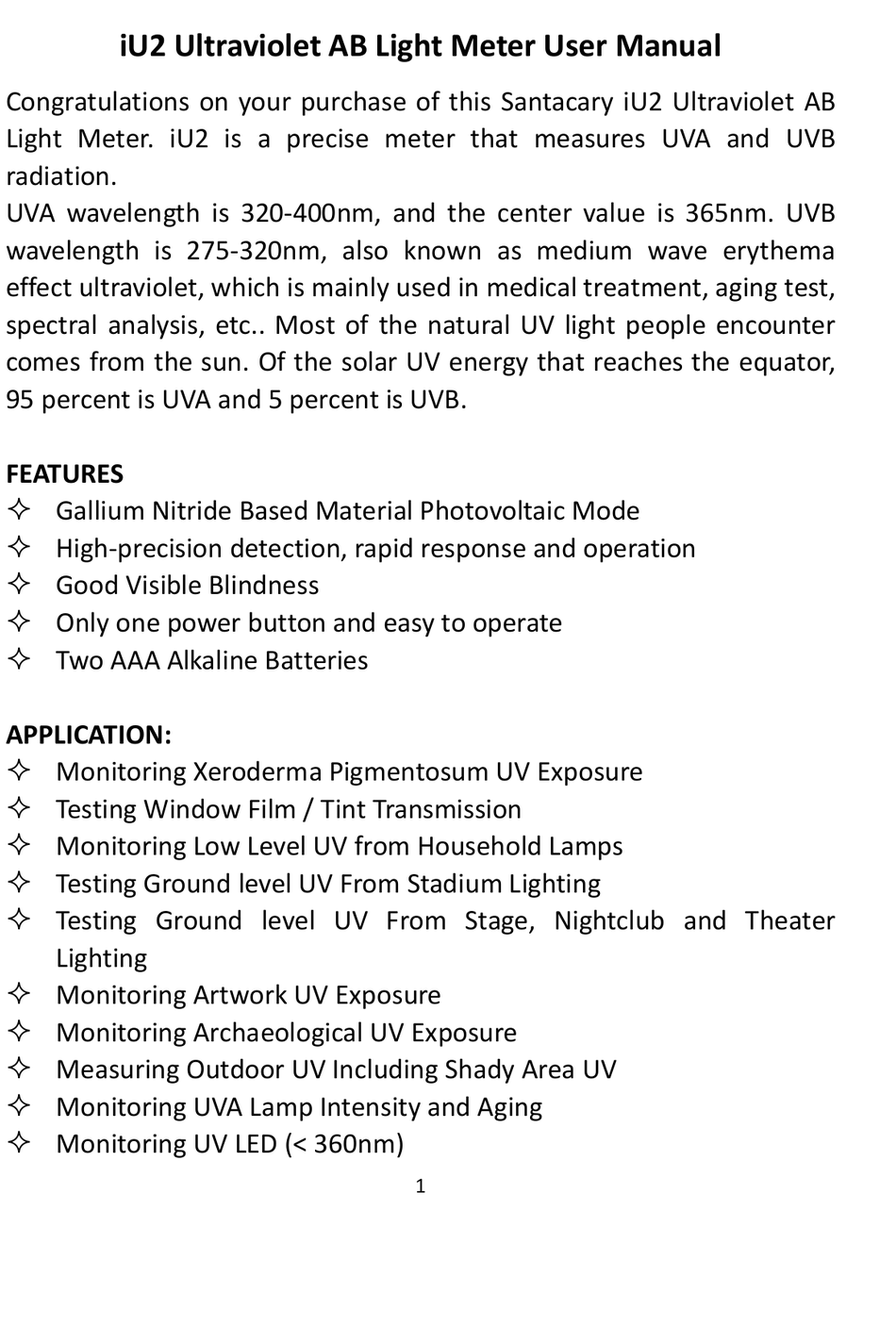

iU2 Ultraviolet AB Light Meter User Manual
Congratulations on your purchase of this Santacary iU2 Ultraviolet AB
Light Meter. iU2 is a precise meter that measures UVA and UVB
radiation.
UVA wavelength is 320-400nm, and the center value is 365nm. UVB
wavelength is 275-320nm, also known as medium wave erythema
effect ultraviolet, which is mainly used in medical treatment, aging test,
spectral analysis, etc.. Most of the natural UV light people encounter
comes from the sun. Of the solar UV energy that reaches the equator,
95 percent is UVA and 5 percent is UVB.
FEATURES
Gallium Nitride Based Material Photovoltaic Mode
High-precision detection, rapid response and operation
Good Visible Blindness
Only one power button and easy to operate
Two AAA Alkaline Batteries
APPLICATION:
Monitoring Xeroderma Pigmentosum UV Exposure
Testing Window Film / Tint Transmission
Monitoring Low Level UV from Household Lamps
Testing Ground level UV From Stadium Lighting
Testing Ground level UV From Stage, Nightclub and Theater
Lighting
Monitoring Artwork UV Exposure
Monitoring Archaeological UV Exposure
Measuring Outdoor UV Including Shady Area UV
Monitoring UVA Lamp Intensity and Aging
Monitoring UV LED (< 360nm)
1
Advertisement
Table of Contents
Related Manuals for Santacary iU2
Summary of Contents for Santacary iU2
- Page 1 Ultraviolet AB Light Meter User Manual Congratulations on your purchase of this Santacary iU2 Ultraviolet AB Light Meter. iU2 is a precise meter that measures UVA and UVB radiation. UVA wavelength is 320-400nm, and the center value is 365nm. UVB...
- Page 2 Monitoring PUVA Therapy Lamp Intensity and Aging Testing UVA In Industrial Glue Curing, Tungsten Ore Identification, Fluorescence Detection, Biopolymerization, Oil Pollution Detection, Ore Exploration, Criminal Detective, and Textile Industry. DEVICE 1. LCD display 2. Power button 3. UVA+B sensor...
-
Page 3: Operation
OPERATION When the device is turned off, press Power button to turn on the unit. Press Power button two seconds to turn off the unit. When the unit is first turned on, it performs 5 seconds countdown for device warm up, then enters normal display. -
Page 4: Specifications
SPECIFICATIONS UV Specification UVA+UVB Measurement Range 30000 W cm mW cm ) Spectral Detection Range 240 to 370 nm Peak point 352 nm Measurement accuracy ±4% ±1 digits Resolution W cm Temperature Range -10 to 50°C (14 to 122°F) Humidity Range 0 to 90%RH General... -
Page 5: Materials Supplied
WARRANTY The iU2 is warranted to be free from defects in material and workmanship for a period of two year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse, alteration, neglect, improper maintenance. - Page 7 rights reserved including right reproduction in whole or in part in any form.
