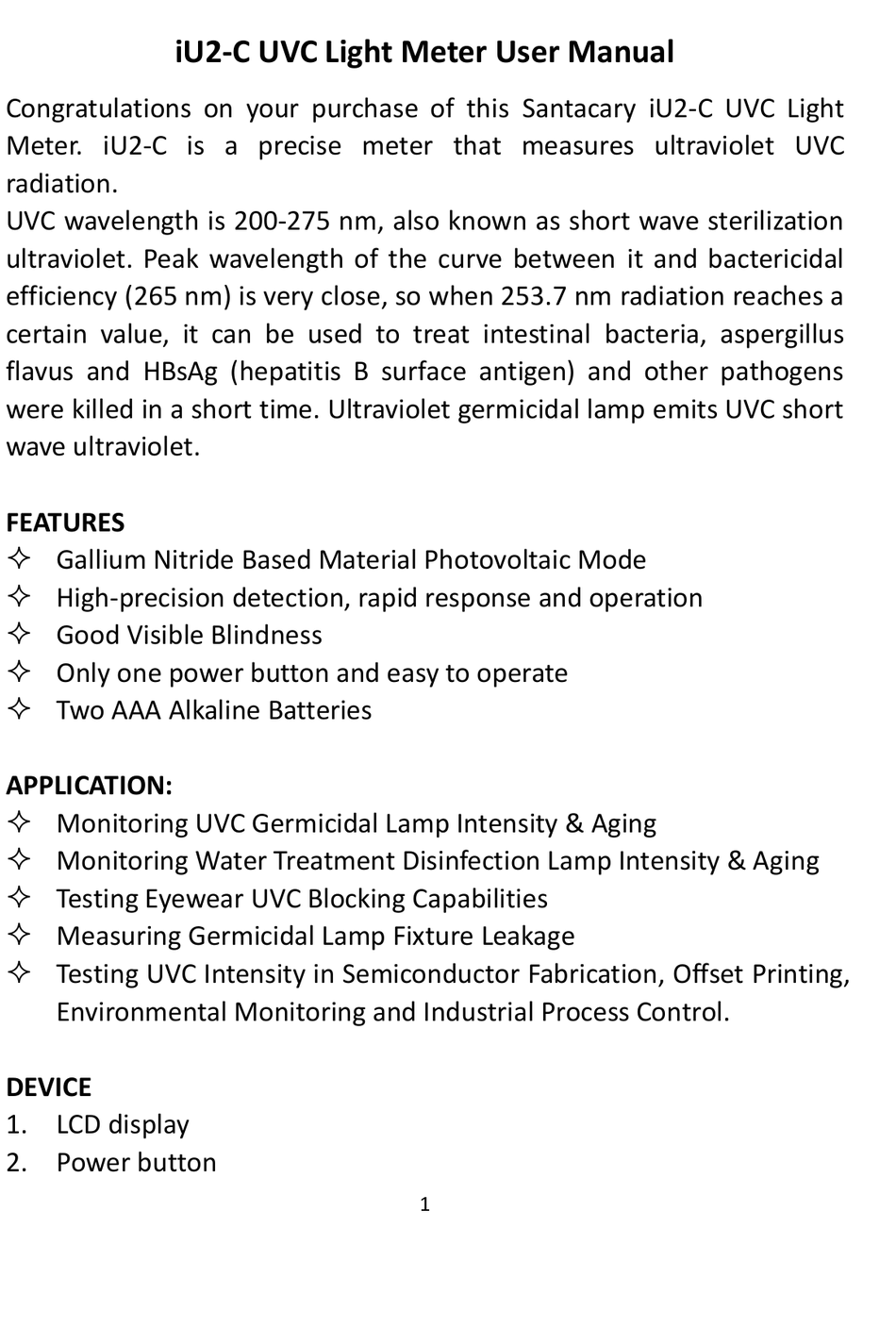

iU2-C UVC Light Meter User Manual
Congratulations on your purchase of this Santacary iU2-C UVC Light
Meter. iU2-C is a precise meter that measures ultraviolet UVC
radiation.
UVC wavelength is 200-275 nm, also known as short wave sterilization
ultraviolet. Peak wavelength of the curve between it and bactericidal
efficiency (265 nm) is very close, so when 253.7 nm radiation reaches a
certain value, it can be used to treat intestinal bacteria, aspergillus
flavus and HBsAg (hepatitis B surface antigen) and other pathogens
were killed in a short time. Ultraviolet germicidal lamp emits UVC short
wave ultraviolet.
FEATURES
Gallium Nitride Based Material Photovoltaic Mode
High-precision detection, rapid response and operation
Good Visible Blindness
Only one power button and easy to operate
Two AAA Alkaline Batteries
APPLICATION:
Monitoring UVC Germicidal Lamp Intensity & Aging
Monitoring Water Treatment Disinfection Lamp Intensity & Aging
Testing Eyewear UVC Blocking Capabilities
Measuring Germicidal Lamp Fixture Leakage
Testing UVC Intensity in Semiconductor Fabrication, Offset Printing,
Environmental Monitoring and Industrial Process Control.

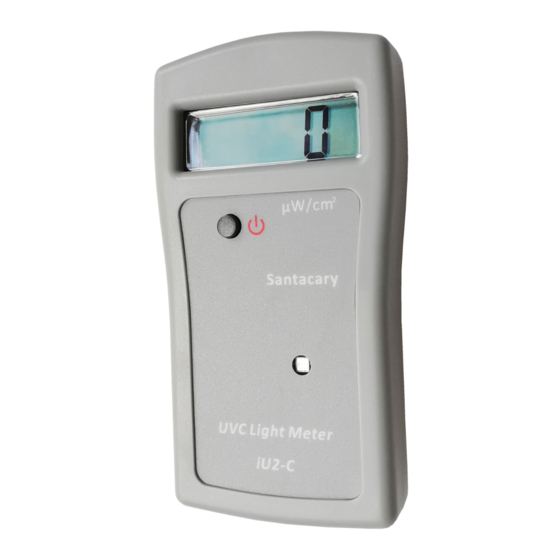

DEVICE
1. LCD display
2. Power button
1
Advertisement
Related Manuals for Santacary iU2-C
Summary of Contents for Santacary iU2-C
- Page 1 UVC Light Meter User Manual Congratulations on your purchase of this Santacary iU2-C UVC Light Meter. iU2-C is a precise meter that measures ultraviolet UVC radiation. UVC wavelength is 200-275 nm, also known as short wave sterilization ultraviolet. Peak wavelength of the curve between it and bactericidal efficiency (265 nm) is very close, so when 253.7 nm radiation reaches a...
- Page 2 3. UVC sensor OPERATION When the device is turned off, press Power button to turn on the unit. Press Power button again to turn off the unit. When the unit is first turned on, it performs 5 seconds countdown for device warm up, then enters normal display.
- Page 3 SPECIFICATIONS UVC Specification UVC Measurement Range 0 to 3000 µW/cm2 Spectral Detection Range 220 to 280 nm Peak point of Spectrum 265 nm Measurement accuracy ±4% or ±1 digits Resolution 1.0 µW/cm2 Temperature Range -10 to 50°C (14 to 122°F) Humidity Range 0 to 90%RH General...
- Page 4 WARRANTY The iU2-C is warranted to be free from defects in material and workmanship for a period of two year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse, alteration, neglect, improper maintenance.
