Summary of Contents for Santacary XAR-UC

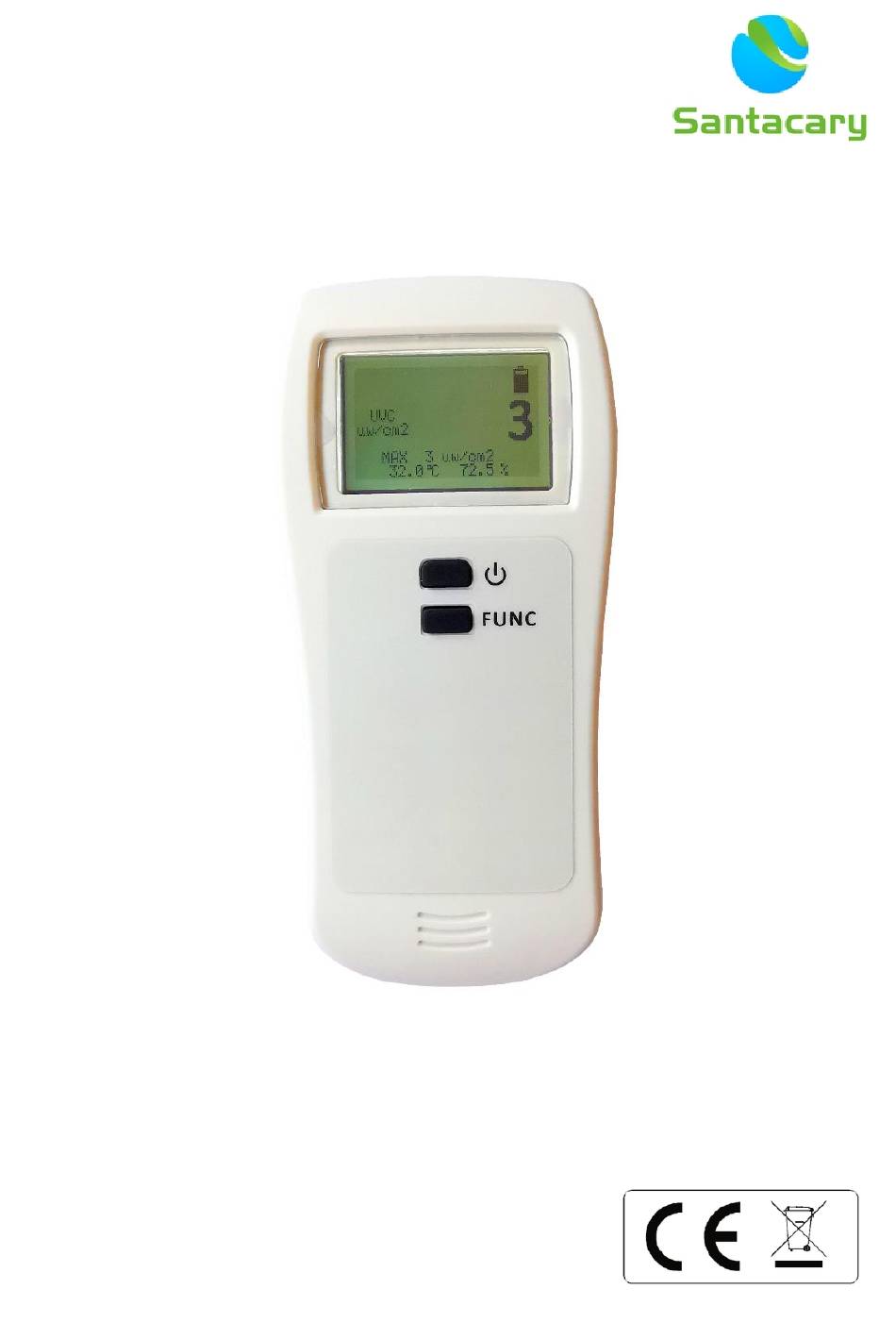

- Page 1 User Manual R1.1 Santacary Technology Co. Ltd. XAR-UC UVC Light Meter...
- Page 2 INTRODUCTION Congratulations on your purchase of this Santacary XAR-UC UVC Light Meter. XAR-UC is a precise meter that measures ultraviolet UVC radiation. UVC wavelength is 200-275 nm, also known as short wave sterilization ultraviolet. Peak wavelength of the curve between it and bactericidal efficiency (265 nm) is very close, so when 253.7 nm radiation reaches a...

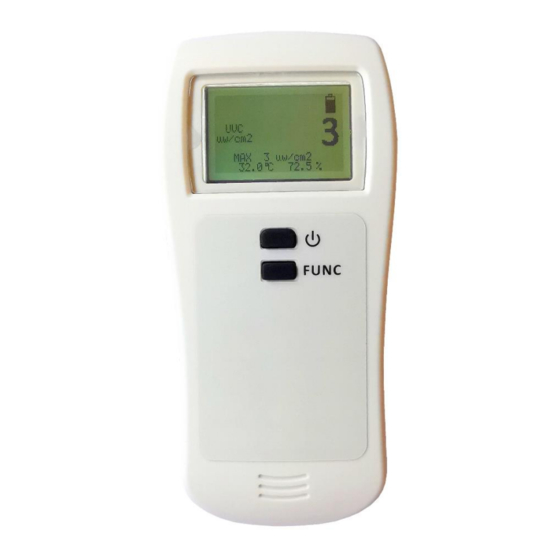

- Page 3 Measuring Germicidal Lamp Fixture Leakage Testing UVC Intensity in Semiconductor Fabrication, Offset Printing, Environmental Monitoring and Industrial Process Control. DEVICE 1. UVC sensor 2. LCD display 3. Power button 4. Function button 5. Battery compartment back cover...
- Page 4 DISPLAY 1. Battery gauge 2. Radiation intensity unit 3. UVC radiation intensity 4. Maximum UVC radiation intensity 5. Temperature 6. Relative humidity...
-
Page 5: Operation
OPERATION Note: LCD backlight will turn off automatically after 2 minutes of inactivity. When LCD backlight is off, press any button to turn on the backlight. 1. Power Button 1.1 Turn On/Turn Off Meter 1) When the meter is turned off, press to turn on the unit. -
Page 6: Spectral Response
temperature, and humidity readings displayed. The meter starts taking measurements when power on and updates readings every 2 seconds. The UVC radiation intensity unit is µW /cm2. 1.2 Reset UV Maximum Record Press shortly to reset the maximum record of UVC radiation intensity. - Page 7 UVC Specification UVC Measurement Range 0 to 3500 µW/cm2 Spectral Detection Range 220 to 280 nm Peak point of Spectrum 265 nm Measurement accuracy ±4% or ±1 digits Resolution 1.0 µW/cm2 Temperature Range -10 to 50°C (14 to 122°F) Humidity Range 0 to 90%RH Temperature Specification Temperature Range...
-
Page 8: Cleaning And Storage
WARRANTY The XAR-UC is warranted to be free from defects in material and workmanship for a period of two year from the date of purchase. This warranty covers normal operation and does not cover misuse, abuse, alteration, neglect, improper maintenance.
