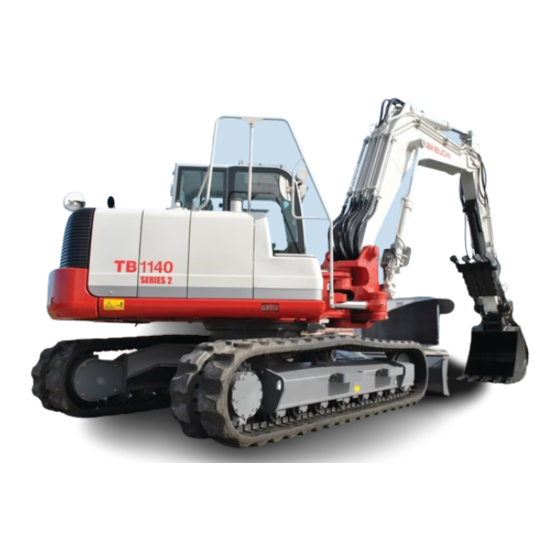

- Page 1 TB1140 Hydraulic Excavator Serial No. 514200001~ Book No. AN2E003 OPERA TOR’S MANUAL Original instructions WARNING Read and understand these instructions. Failure to do so can cause injury or death.
- Page 2 � Always store this manual near at hand preferably on the machine itself. If it should be lost or damaged, immediately order a new one from your Takeuchi dealer. When transferring ownership of this machine, be sure to provide this manual to the next owner.
- Page 3 It is your responsibility to observe all pertinent laws and regulations and to follow the manufacturer’s instructions on machine operation, inspection and maintenance. Virtually all accidents occur as the result of a failure to observe basic safety rules and precautions. An accident can often be avoided by recognizing potentially hazardous situations beforehand.
- Page 4 If you have any questions about the machine, please contact a Takeuchi sales or service outlet. � Manual storage compartment � Serial numbers A compartment for storing this manual...
- Page 5 MACHINE DESCRIPTlON � Front, rear, Ieft and right FRONT This manual refers the front, rear, left and right of the machine as seen when sitting in the operator’s seat with the dozer blade Dozer blade visible to the front. � Designated operations Use this machine primarily for the following LEFT RIGHT...
- Page 6 CONTENTS Introduction ......... 2 Machine Description ......3 Safety ........... 7 Controls ..........35 Operation ........... 77 Transport ......... 105 Maintenance ........109 Troubleshooting ......165 Specifications ......... 181 Options ..........199 Index ..........223...
- Page 7 SAFETY General Precautions ......... 8 Preparing Precautions ........12 Starting Precautions ........14 Operating Precautions ........16 Stopping Precautions ........23 Transporting Precautions ......24 Maintenance Precautions ......25 Safety Signs (Decals) ........32...
- Page 8 SAFETY General Precautions get hardened to cause an early wear or Observe all safety rules damage to the machine. � Operation, inspection and maintenance • If the machine is to be used outside the of this machine must be performed only ambient temperature range described by a trained and qualified person.
- Page 9 SAFETY General Precautions Use a signal person and flagman Provide a fire extinguisher and first aid kit Know and use the hand signals required for particular jobs and make sure who has the � Know where a fire extinguisher and first responsibility for signaling.
- Page 10 SAFETY General Precautions Avoid fire and explosion hazards Be sure to lock the safety lock lever before leaving the operator’s seat Keep flames away from fuel, hydraulic fluid, oil, grease and antifreeze. Fuel is particularly flammable and dangerous. � Before leaving the operator’s seat, raise �...
- Page 11 � For clean up, use wet methods or a � Takeuchi will not be held responsible for vacuum equipped with a high efficiency any injuries, accidents or damage to its particulate air (HEPA) filter.
- Page 12 SAFETY Preparing Precautions Know the working area Alway keep the machine clean Before starting operation, know the working area to ensure safety. � Check the topography and ground condition of the working area, or the structure of the building when working indoors, and take the necessary safety measures in dangerous spots.
- Page 13 SAFETY Preparing Precautions � After smoking, be sure to tightly close the Perform inspection and lid of the ashtray to put out the match or maintenance daily cigarette. � Do not leave the cigarette lighter in the operator’s compartment. When room temperature rises, the lighter may explore.
- Page 14 SAFETY Starting Precautions Maintain three point contact when Clear the area of other persons mounting and dismounting before starting the machine � Do not jump on or off the machine. Never Do not start the engine until you are sure it attempt to mount or dismount a moving is safe.
- Page 15 SAFETY Starting Precautions Starting with jumper cables In cold weather Use jumper cables only in the recommended � Be careful of slippery conditions on manner. Improper use of jumper cables can freezing ground, steps and hand holds. result in battery explosion or unexpected �...
- Page 16 SAFETY Operating Precautions Ensure good visibility Check for safety in the surrounding area before starting � When working in dark places, turn on the machine’s working lights and headlights and/or provide extra stationary lighting if necessary. � When visibility is poor due to severe weather (fog, snow or rain), stop operating the machine and wait until conditions improves.
- Page 17 SAFETY Operating Precautions � Do not slew (swing) while traveling. If Check the position of the you must operate the hoe attachment undercarriage (tracks) before while traveling, operate at speeds slow traveling enough so you have complete control at all times. �...
- Page 18 SAFETY Operating Precautions Cautions on traveling on slopes When traveling on slopes or grades, be careful that the machine does not tip (roll) over or slide. � Never exceed the machine’s stability capabilities (maximum gradeability – 35°, lateral tipping angle – 15°). Also note that when actual working area conditions are �...
