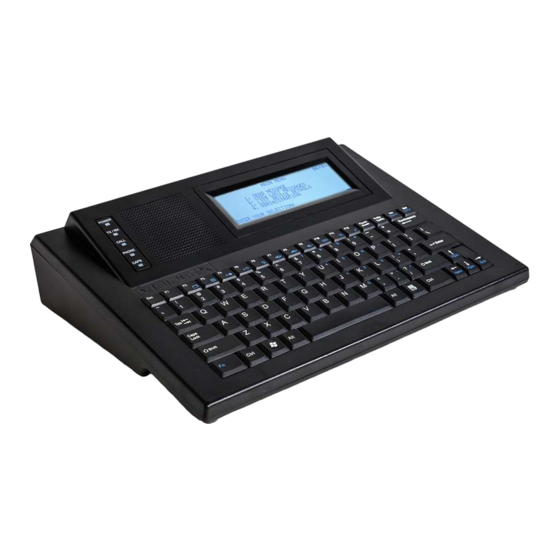

visiplex VS4810 Quick User Manual

VS4810 Demo System – Quick User Guide

System Setup

1. If your system is equipped with an external transmitter, connect the provided data cable between the DATA port on the external
transmitter and the DATA I/O port.
2. If your system is equipped with an external transmitter, connect the antenna to the RF-OUT port on the external transmitter.
Otherwise, connect the antenna to the RF-OUT port on the VS4810.
3. Turn on the VS4810 system. If your system is equipped with an external transmitter, turn it on.

Sending an Alert to Wireless Devices using the Keyboard or Keypad

1. Determine the type of wireless device to be activated and identify its number. The device number can be identified by the last 3
digits of its capcode (see label on back of each device).
2. Press 1 from the Main Menu.
3. Enter a device number from the list below according to the type of device to be activated:
Pagers
a. Enter the device number of the individual pager (101-105) or enter 199 to access all pagers.
b. To retrieve a sample alphanumeric message, press F1. Otherwise, enter an alphanumeric message in the Message field.
c. Press the Enter key to send the message.
Note: These devices are assigned with capcodes 0800101-0800105, Group capcode 0800900.

Wireless Speaker for Live Voice Announcements

a. Enter the device number of the individual speaker (201-205) or enter 200 to access all speakers.
b. Follow the instructions on the LCD display and use the provided microphone to announce your message.
c. To end the transmission, press the Esc key.
Note: These devices are assigned with capcodes 0760201-0760205, Group capcode 0760904.

Wireless Speaker for Pre-Programmed Voice or Tone Announcements

a. Enter the device number of the individual speaker (301-305) or enter 300 to access all speakers.
b. To retrieve a sample tone activation command, press F5.
c. Press the Enter key to send the command.
d. For additional sample voice activation command, repeat the procedure with F6.
Note: These devices are assigned with capcodes 0760201-0760205, Group capcode 0760904.

Alphanumeric LED Display

a. Enter the device number of the individual display (401-405) or enter 400 to access all displays.
b. To retrieve a sample alphanumeric message, press F1.
c. Press the Enter key to send the message.
d. To clear the LED display, enter device number 499, press F2 followed by Enter.
Note: These devices are assigned with capcodes 0400401-0400405, Group capcode 0400904.

Intercom Stations

a. Enter the device number of the individual intercom station (501-505).
b. Follow the instruction on the VS4810 LCD display.

Strobe Lights

a. Enter the device number of the individual strobe light (601-605) or enter 600 to access all strobe lights.
b. To turn the strobe light ON, press F7 (sends "ST415999990*" command).
c. Press the Enter key to send the command.
d. To turn the strobe light OFF, press F8 followed by Enter (sends "ST0*" command).
Note: These devices are assigned with capcodes 0600601-0600605, Group capcode 0760904.
Dome & Corridor Lights
a. Enter the device number of the individual dome light (701-705) or enter 700 to access all dome lights.
b. To turn the dome light ON, press F9 (sends "VSA1*" command).
c. Press the Enter key to send the command.
d. To turn the dome light OFF, press F10 followed by Enter (sends "VSA0*" command).
Note: These devices are assigned with capcodes 0700701-0700705, Group capcode 0700904.

FM Radio Reception

a. Enter the device number of the individual speaker (301-305) or enter 300 to access all speakers.
b. To turn on FM reception, press F3. To turn off FM reception, press F4.
c. Press the Enter key to send the command.
Note: These devices are assigned with capcodes 0760201-0760205, Group capcode 0760904.
VS4810 Demo System – Quick User Guide – Version 1.14
