EZR34 SERIES QUICK GUIDANCE
EZR34.OutdoorRouter.xyz
Scan QR code or visit URL link to see the
complete edition of the online manual.
PACKAGE CONTENTS
Check and count the package contents.
STEP
1.1

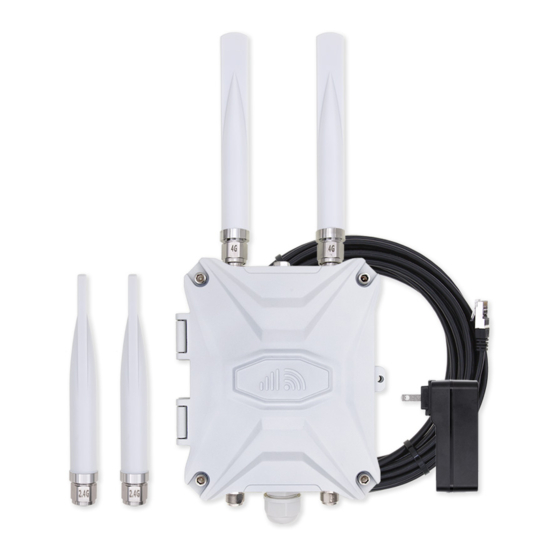

Outdoor Router
4G & WiFi Antennas
PLUG
for UK / EU
/ US / AU
PoE Injector
L-Bracket & T-Wrench
INTERFACE OVERVIEW
1
4G ANTENNA
MAIN
HEXAGON
BOLT
STEP
2.4
CLOSE THE ENCLOSURE
Use T-wrench to tighten
bolts in clockwise direction
WIFI ANTENNA
4
BREATHER VALVE
ARE EMBOSSED NUMBERS
~
6
ON THE ENCLOSURE
6
1
10-Meter LAN Cable
Mounting Kit
3
4G ANTENNA
LOCKHOLE
STEP
1.2
OPEN THE ENCLOSURE
Use hexagon head on the
T-wrench to lose bolts in
anti-clockwise direction
6
WIFI
ANTENNA
5
GLAND
5MM HEX
T-WRENCH
