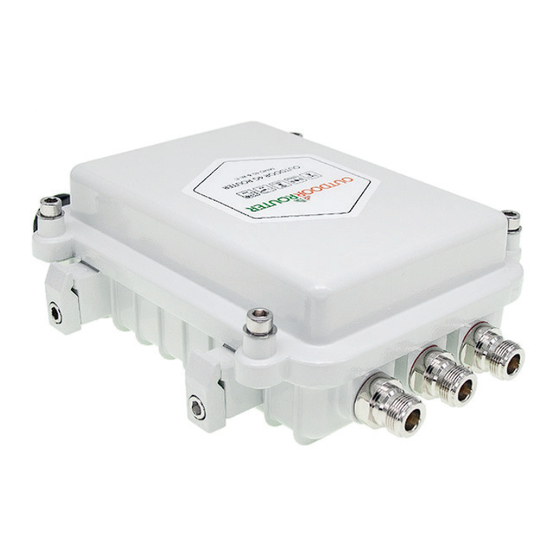

SKU: EZR30 Series
OUTDOOR MIMO ROUTER
Users Manual
1.
Introduction
Integrated 3G/4G mobile modem, EZR30 outdoor router connect your smartphone, tablet, computer, camera, etc. to the internet
via the 3G/4G mobile networks. Comes with dual 4G MIMO antennas, the router receive signals at a high sensitivity.
Complying with the IEEE 802.11b/g/n standard, the outdoor router output Wi-Fi signals at max 27dBm power with transmission
speeds of up to 300Mbps. You can control the Wi-Fi and LAN networks with OpenWrt enabled firmware, such as SSID, SSL, DNS,
encryption, firewall, port forwarding, Wi-Fi relay, and so on.
IP67 hardened industrial-grade aluminum alloy case enclosure the outdoor router to withstand extreme weather conditions and
rugged deployments. The built-in smart PoE module allows using the router on a wide-range PoE power 12~24~48Volt.

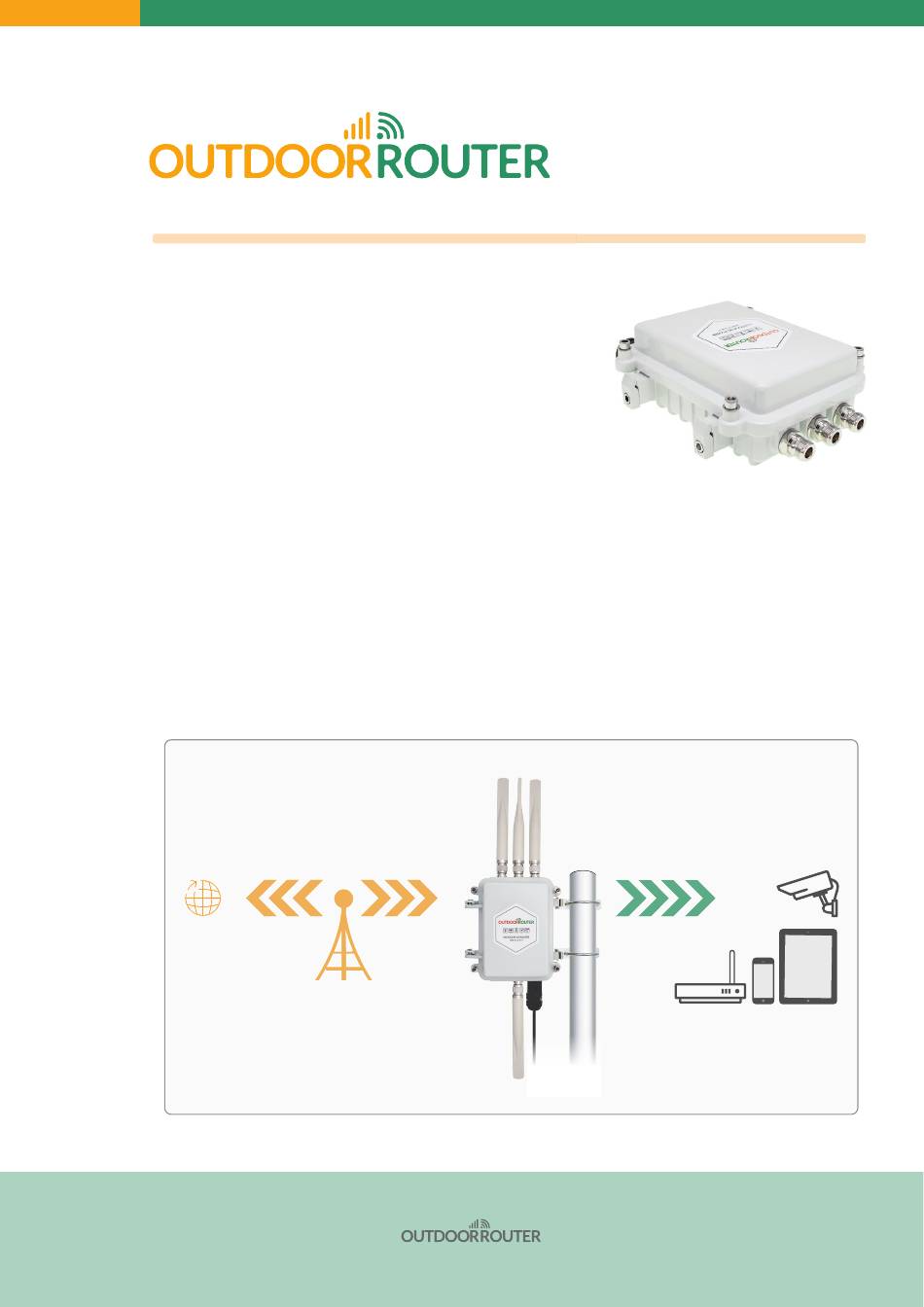

Internet
Mobile
Mast
Outdoor
4G Router
www.outdoorrouter.com
Provide Wi-Fi
& Ethernet
support secondary router
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Outdoor Router EZR30 Series
Summary of Contents for Outdoor Router EZR30 Series
- Page 1 3G/4G mobile networks. Comes with dual 4G MIMO antennas, the router receive signals at a high sensitivity. Complying with the IEEE 802.11b/g/n standard, the outdoor router output Wi-Fi signals at max 27dBm power with transmission speeds of up to 300Mbps. You can control the Wi-Fi and LAN networks with OpenWrt enabled firmware, such as SSID, SSL, DNS, encryption, firewall, port forwarding, Wi-Fi relay, and so on.
-
Page 2: Hardware Overview
• Avoid your gas lines when grounding your wires. • Tampering with your router will void your warranty. Hardware overview Package contents • 1 x 3G/4G outdoor router • 1 x 3-Meter LAN cable • 1 x Mounting set and tool •... -
Page 3: Indicator Description
Receive Boost Wi-Fi Wi-Fi AP mode Wi-Fi signal signal In the Wi-Fi AP mode, outdoor router could replay and boost the Outdoor Wi-Fi signal received from another router or access point (AP). router LAN cable to Make sure in the location of outdoor router could receive at least PoE injector 2 bars of the Wi-Fi signals. -
Page 4: Poe Injector
PoE injector Connect another RJ45 connector on the 10-meter LAN cable to PoE Port Power plug PoE port on the PoE injector. to outdoor router to electrical outlet PoE indicator **Not required** Connect indoor router or computer to Lan port on the PoE injector. - Page 5 Login your outdoor router The default IP address of the outdoor router is 192.168.1.1 with subnet 255.255.255.0. Make sure your smartphone or computer is connected to the router via Wi-Fi or LAN cable. Open a web browser and type http://192.168.1.1 in the URL address bar.
-
Page 6: Network Interfaces
When connecting your existing internet router to the LAN port on the PoE injector (or WAN port on the PoE switch), the WAN interface will be activated. It allows the outdoor router to connect to the internet rather than using the mobile network. -
Page 7: System Settings
Flash new firmware image. 4.5.4 Reboot System / Reboot, you can perform a soft reboot on the outdoor router. Under the section of If need to hardly reboot the router, please disconnect and reconnect the power supply. Firewall settings Surf to Network / Firewall to configure the firewall settings. -
Page 8: Troubleshooting
Make sure PoE injector is connected to the electrical outlet, the green indicator on PoE injector will turn on after connected to the electrical outlet. The PoE power indicator on the outdoor router will turn on Red after have PoE power input to the router. If PoE power indicator is off, check and ensure RJ45 connector on LAN cable connected to “PoE”...
