YANGTECH SMP Series Operation Manual

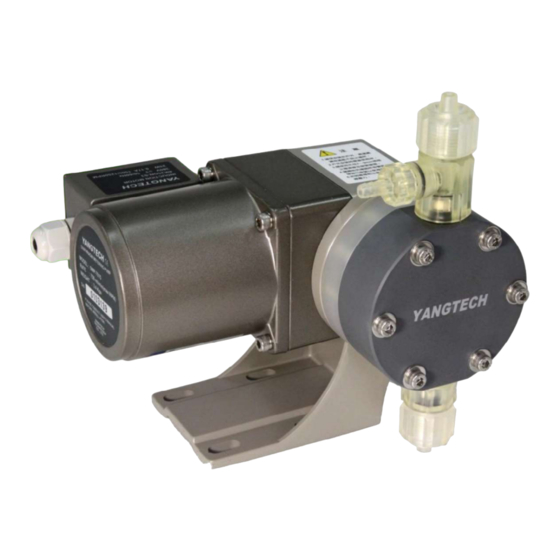

Mechanical-driven diaphragm pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

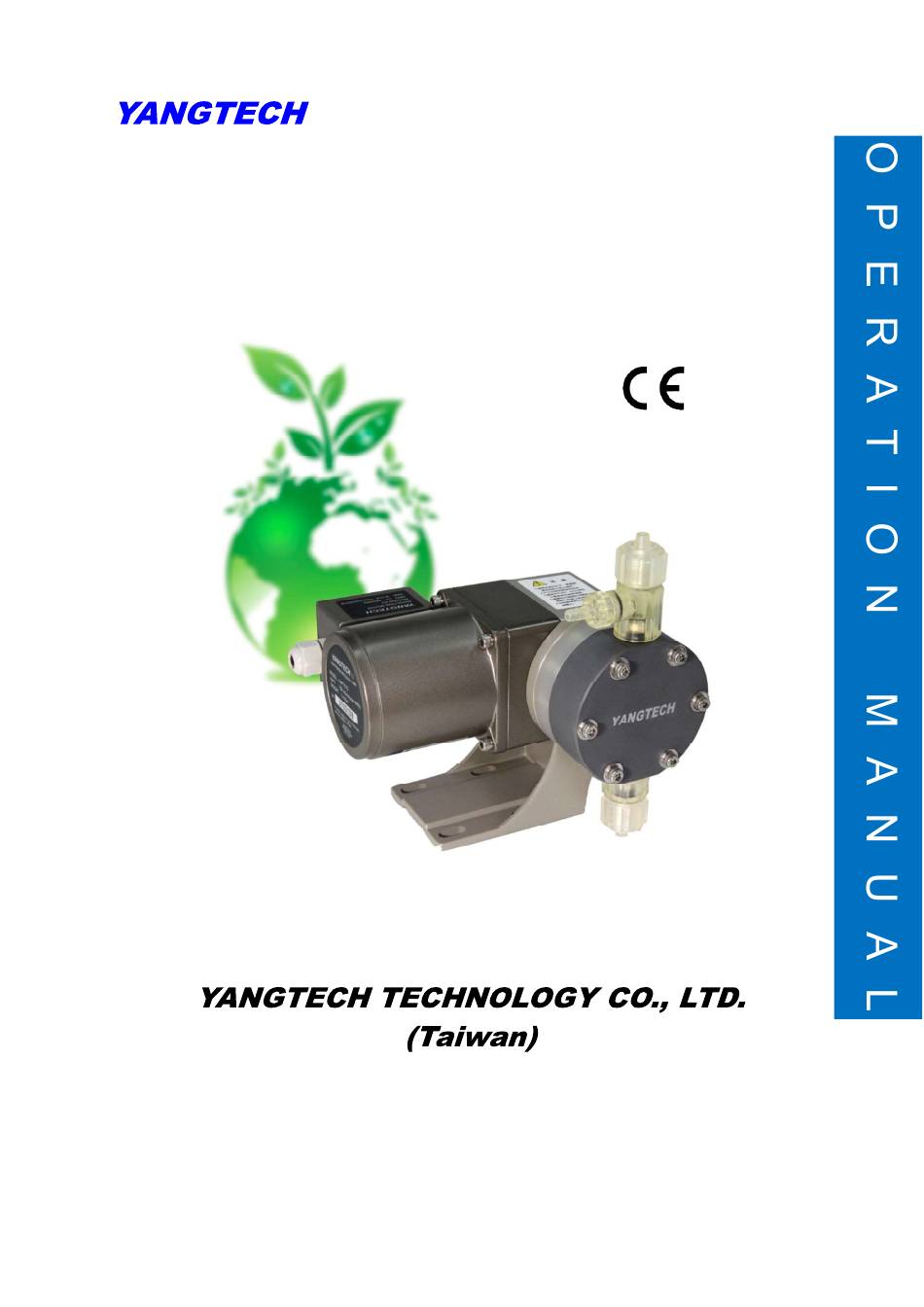

A05G048
(ENGLISH2206)
SMP-SERIES
MECHANICAL-DRIVEN DIAPHRAGM PUMP
SMP-7015/7030/7060/8015/8020
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YANGTECH SMP Series

Summary of Contents for YANGTECH SMP Series

  • Page 1 A05G048 (ENGLISH2206) SMP-SERIES MECHANICAL-DRIVEN DIAPHRAGM PUMP SMP-7015/7030/7060/8015/8020...

  • Page 2: Warranty

    A05G048 SMP- Series Diaphragm Metering Pump SMP-7015/7030/7060/8015/8020 Installation & Maintenance Manual NOTICES Not in accordance with the manual may cause malfunction of pump or even injury of operator! Read this manual thoroughly before installation and operation. Install this pump in a place of ventilation (environmental temp. between 5~40 ). Keep away from high temperature / high humidity / corrosive gases.

  • Page 3: Model Identification

    A05G048 MODEL IDENTIFICATION SMP-7015-ACH-221 A= Series Code (Pump Series) B= Diaphragm Diameter (70= C= Reduce Rate (15=1:15, 20=20:1, 30=30:1, 60=60:1) D= Material Code (Consult table below) E= Joint Code (H/H1= Hose Type ,U= Union Type, F= Flange Type) F= Power Code 1 Volts(11=100/110/120V, 22=200/220/240V, 38=380V, 41=415/440V, 48=480V) G= Power Code 2...
  • Page 4 A05G048 PACKING DIMANTIONS AND CONTENTS PACKING DIMENSIONS Net Weight Gross Weight Model Packing Dimensions (Kg) (Kg) L253mm*W205mm*H242mm 7015/7030/7060 (Double layer corrugated paper carton) L273mm*W225mm*H250mm 8015/8020 (Double layer corrugated paper carton) Package Contects SMP-7015/7030/7060 Contents Pump*1 PVC Hose PTFE Hose 8*10mm*3.0m Set (M6-25screw+nut*2+washer *4) *1 Manual*1 PTFE Connector 8*10mm*1...

  • Page 5: Installation

    A05G048 INSTALLATION Make sure this pump is horizontally installed. Make sure that the power source is correct before power connections. The correct connections as below: 3-Phase 1-Phase W=White BK=Black BL=Blue R=Red C=Capacitor Use diameter of 7-8mm power cable (3 or 4-wires), turn tight cable hold nut and use gasket between cover and power box.
  • Page 6 A05G048 The pressure loss cause by pump pulse should below 1.0 Kgf/cm2 ,otherwise the pipe start to vibrate. In this case, a pulse reducer can be installed or reduce piping length/elbow or increase pipe diameter. Be aware that pressure discrepancy between input output hose should higher than the inner pressure loss of this pump otherwise, overfeeding even siphon phenomenon may occur.
  • Page 7 A05G048 OPERATIONS Before operation make sure of correct power source and on leakage of pipe/connectors. Both direction of the motor is suitable for the pump. (No need to check the direction) To change the flow rate, loosen the fix-nut then turn the flow regulator knob while the pump is running.
  • Page 8 A05G048 COMMON ABNORMAL SITUATIONS AND SOLUTIONS SITUATIONS FACTORS SOLUTIONS No power or power source is Support correct power source incorrect Power switch not turn on Turn on power switch Can not start the Repair(renew) the magnetic Malfunction of Magnetic switch motor switch or reset the current or an action of current protector...

  • Page 9: Maintenance

    A05G048 MAINTENANCE Keep low temperature and good ventilation of the operating environment If blocking happens, disassemble the connector/foot-valve/pipe then clean up and reassemble the parts according to the illustrations at P.9-10. Check the power cable is normal and connectors are clean and tight regularly. Avoid the chemical splash on the pump.
  • Page 10 A05G048 WET PARTS EXPLODED VIEWS SMP-7015/30/60...
  • Page 11 A05G048...
  • Page 12 A05G048 SMP-8015/20...

  • Page 13: System Exploded Views

    A05G048 SYSTEM EXPLODED VIEWS SMP-7015/30/60 The wet parts exploded view consult P.10...
  • Page 14 A05G048 SMP-8015/8020 Other types of head section exploded view consult P.12...

  • Page 15: Dimensions And Specifications

    A05G048 Dimensions and Specifications 8015/20 ISO9001 7015/30/60 Dimensions (mm) SMP-7060/30 SMP-7015 SMP-8020 SMP-8015 Specifications Model SMP-7060 SMP-7030 SMP-7015 SMP-8020 SMP-8015 Item \ Frequency 625 1000 800 1400 1150 760 1320 1080 1. Discharge Rate (Max.) 700 1240 1000 (ml/min) 650 1150 10.0 2.
  • Page 16 A05G048 Manufacturer/Sale ®...

This manual is also suitable for:

Smp-7015Smp-7030Smp-7060Smp-8015Smp-8020
