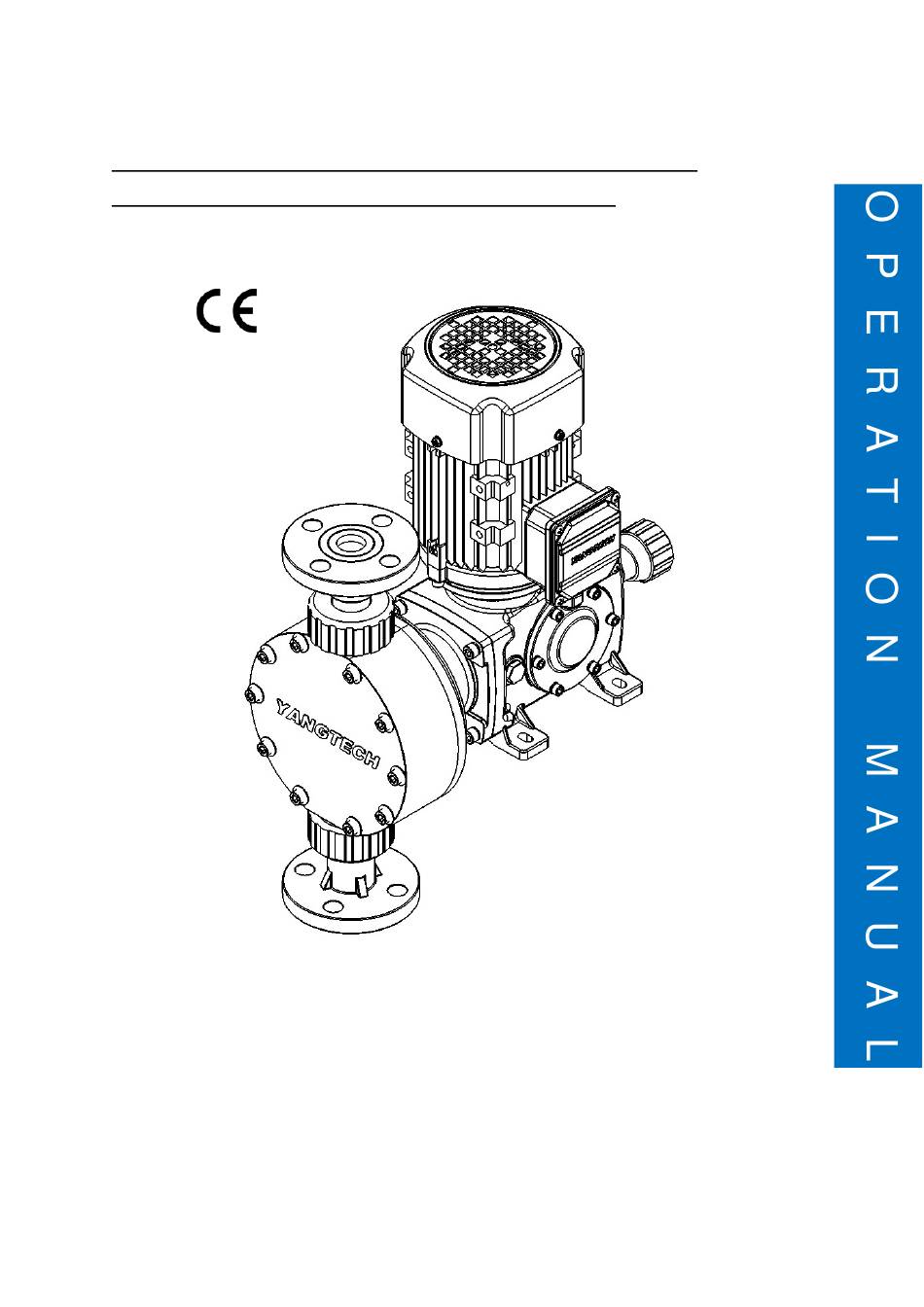

- Page 1 A05G072 ANGTECH (ENGLISH 20/03) HP - SERIES DIAPHRAGM METERING PUMP FOR MODEL HP-1315/1330/1715/1730 YANGTECH TECHNOLOGY CO., LTD. (Taiwan)
- Page 2 A05G072 YANGTECH HP- SERIES DIAPHRAGM METERING PUMP HP-1315/1330/1715/1730 OPERATION & MAINTENANCE MANUAL 1. NOTICES Not in accordance with this manual may cause malfunction of pump or even injury of operator ! Read this manual thoroughly before installation and operation.
-
Page 3: Model Identification
A05G072 2. MODEL IDENTIFICATION HP-13 15 - AC F-22 3 A= Series Code (Pump Series) B= Diaphragm Diameter (13=φ130mm: 17=φ170mm) C= Transmission Ratio (15=15:1 / 30=30:1) D= Material Code (Consult following diagram) E= Joint Code (U=UnionType / F=FlangeType) (23=220V,φ3 / 21=220V,φ1/ 33=380V,φ3/ 11=110V,φ1) F= Power Code G= Special Code (Null =Standard Product / S=Customized Product) -
Page 4: Installation
A05G072 3. PACKING DIMANTIONS AND CONTENTS PACKING DIMENSIONS：： Model Packing Dimensions N.W.(Kg) G.W.(Kg) HP-1315/1330 L520mm*W250mm*H490mm 17.5 20.5 HP-1715/1730 L520mm*W250mm*H530mm STANDARD CONTENTS： Item Contents Quantity Unit Remark piece Pump 1.0” 10K Flange (PVC) piece flange type only Screw sets (M8-30screw*4、M8 nuts*4,M8 washers*8 piece Operation / Installing manual piece... - Page 5 A05G072 Install pump that pump-head is lower than the lowest level of pumping fluid. If it is not , a check valve should be installed. The sucking head of this pump is lower than 100cm and which is no guarantee. ...
- Page 6 A05G072 Pipe configuration illustrated below： System configuration (Example) 5. OPERATIONS After correct installation, turn on the power control switch to start the pump. Both direction of the motor are suitable for the pump. Make sure all the pipes are connected properly and no leakage before start the pump. ...
-
Page 7: Performance Diagram
A05G072 fix-nut indicator flow regulator knob Indicator (unit: mm) 6. PERFORMANCE DIAGRAM Test Fluid：H Temperature：25℃ Power Source：220V/φ3/60Hz Stroke length：100% (12mm) Pulse rate： 200 Pulses/min Pressure unit：kg/cm Note： Pipe altitude/length/number of valves/liquid viscosity/pressure, all these factors change discharge rate. For best accuracy, calibrate discharge rate before normally use. - Page 8 A05G072 COMMON ABNORMAL SITUATIONS AND SOLUTIONS ITEM SITUATIONS POSSIBLE CAUSES SOLUTIONS Supply power or correct No power or incorrect power power source Pump stop or Magnetic switch damaged Replace a new one pump can`t Fuse/current protector action Reset or change fuse start Motor coil fail / damaged Replace a new one...
-
Page 9: Maintenance
A05G072 O-ring / seal gasket is broken or Replace with a new one deformed Lack of O-ring / seal gasket or Supply new one or reinstall Leakage of incorrect installation correctly fluid Pump head fixing screws loose Tighten screws of pump head Rift of the diaphragm (Fluid draining from bottom Replace with a new one... - Page 10 A05G072 CONNECTOR DISASSEMBLE ILLUSTRATION...
- Page 11 A05G072 SPECIFICATIONS DIMENSIONS Model HP-1315 HP-1330 HP-1715 HP-1730 SPECIFICATIONS HP-1315 HP-1330 HP-1715 HP-1730 Item \ Model\ Frequency 16.5 13.8 16.3 13.6 1. Capacity. (L/min) 15.7 13.1 O at 25℃) 10.0 PVC/PVDF 10.0 2. Pressure Max. (kg/cm 12.0 3. Stroke Length (mm) 0.0~12.0 4.
- Page 12 A05G072 YANGTECH ™ YANGTECH TECHNOLOGY CO., LTD. (Taiwan)
