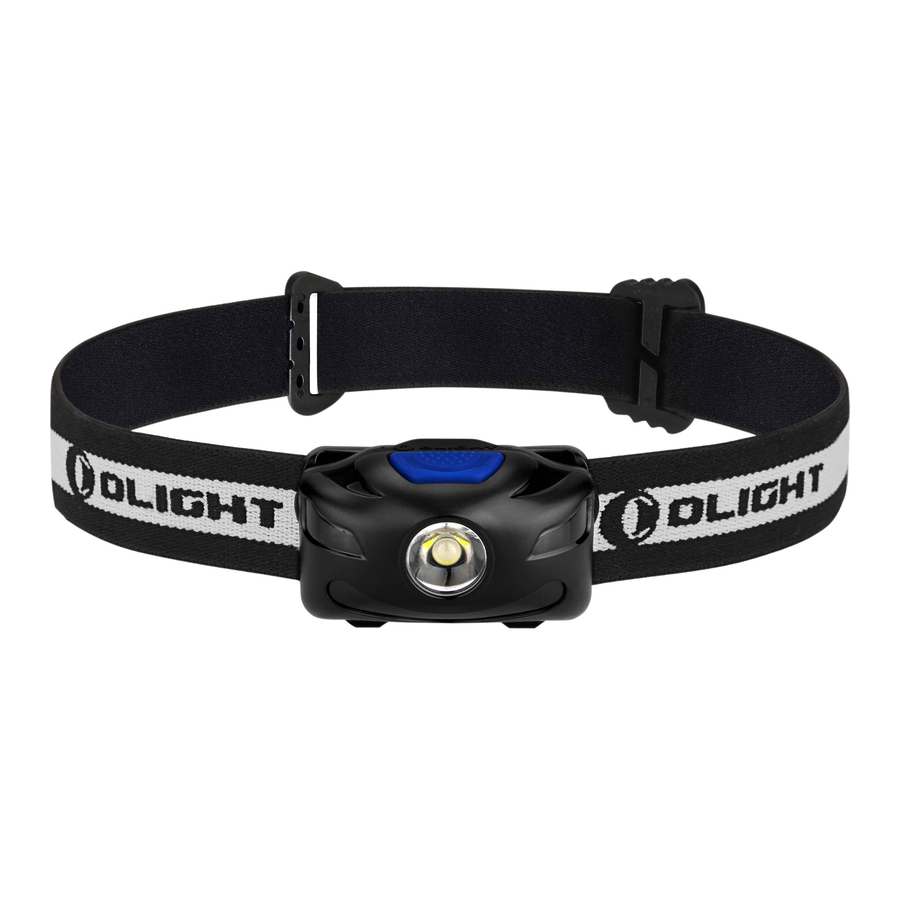

OLIGHT H05S ACTIVE - Compact Headlamp Manual

INSIDE THE BOX

H05S Active, 2 x AAA Lithium batteries (installed inside the headlamp), User manual

SPECIFICATIONS

Material: PC(Plastic)

OUTPUT & RUNTIME		2 x AAA Lithium batteries (Included)	2 x AAA Alkaline batteries
HIGH (200 120 lm)		10+200 min	10+120 min
MEDIUM (30 lm)		8.5 hours	6 hours
LOW (10 lm)		24 hours	20 hours

All performance claims to ANSI/NEMA FL1-2009 Standard.

HOW TO OPERATE

1. Before first use, please open the battery compartment as the diagram shown, take off the insulating film then cover the battery compartment.

2. Single click the switch to turn on, the flashlight outputs at the high brightness level. Click it again, every click on the switch, the brightness level will decreased in sequence until off.
3. When the flashlight is on, quickly double click the switch, the output turn to red light.
4. When the flashlight is in red light mode, single click the switch, the red light blinks, two times per second. Click again to turn the flashlight off.
5. When turned off in the red light mode, still maintain red light output when turned on again, quickly double click turn to white light.

The headlamp contains two led colors and two operation modes including switch operation mode, and wave operation mode.

Switch operation mode

1. When reinstalling the batteries, the switch operation mode is activated as the default setting. Press the switch to turn the light on or off, change the brightness level/led color, and switch to the alternative operation mode.
2. Under the switch operation mode, single click the switch to turn on the light. The light will output on the high mode and its brightness level will reduce to a lower mode till it turns off by each click. Quickly double click the switch to cycle the output between the white and red LEDs.
3. There are two output modes with the red LEDs. Single click the switch to enable the two red indicator LEDs on flash mode which turns them on every two seconds. Single click the switch again to shut the light off. The light re-lights in the red light mode as before when it is turned on again.

Change operation mode

With the light on, press and hold the switch for more than 1 second to change the operation mode. The light will flash once when the change has happened.

Wave operation mode

All operations under the switch operation mode are also available in the wave operation mode. Wave operation mode is used to turn the light on or off. Wave or swipe your hand 5 to 20 cm in the front of the headlamp to turn the light on or off. Under the wave operation mode, the light will return to the last output mode (brightness level & light color) used when it turns on. If there is no operation for 10 minutes after the light is turned off by wave operation, the light will automatically be totally switched off for safety purposes. Quickly wave or swipe your hand in front of the headlamp from one side to the other once to turn the light on or off for 10 times, the light will also be totally switched off.

NOTE: Under the wave operation mode, the wave feature is unavailable within 1 second after manual switch operation.

BATTERY INSTALLATION

When replacing the batteries, open the cover of the battery compartment and remove the used batteries. The "+" sign in the battery compartment will glow red indicating the installation direction of the batteries. Insert the batteries as indicated into the battery compartment and then close the cover.
