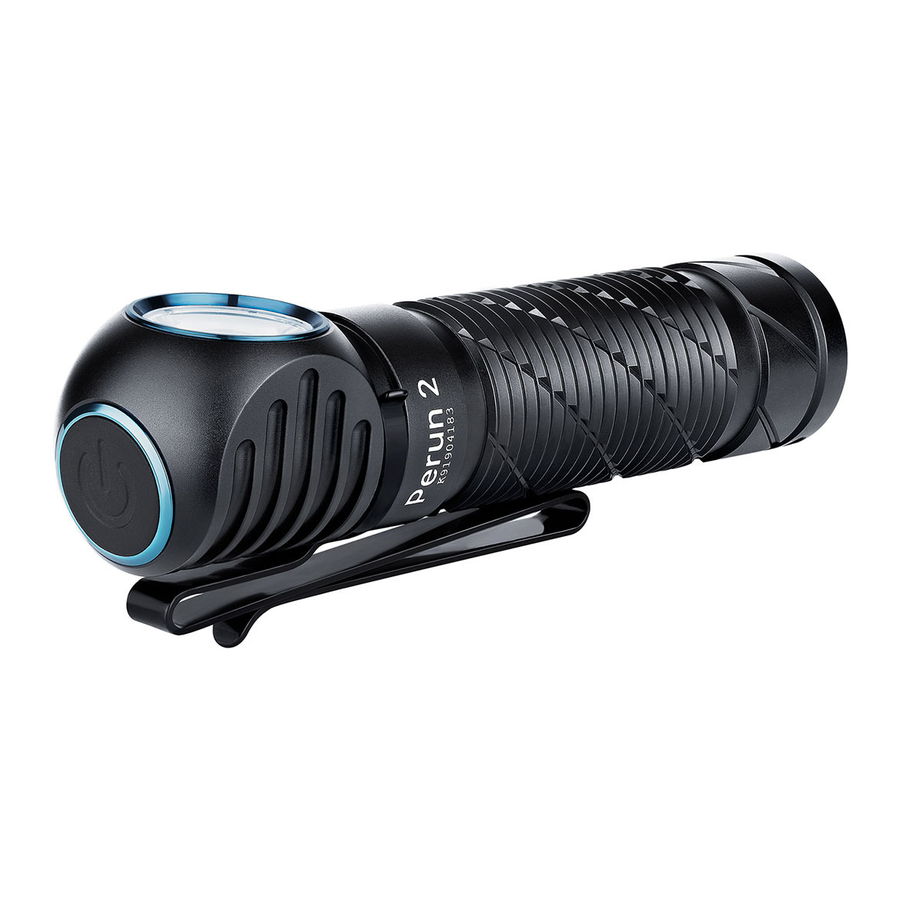

OLIGHT Perun 2 - Headlamp Manual

IN THE BOX

Perun 2 (with Battery and Pocket Clip)

USB Magnetic Charging Cable

Lanyard with A Pin Tool

Headband With Silicone Bracket

LANYARD ATTACHMENT

Put the pin tool through the light lanyard hole and then hook the lanyard to the hole.

PROXIMITY PROTECTION FUNCTION

When the proximity sensor detects an obstruction nearby, the brightness will automatically reduce. The light will shut down directly if the blockage continues for more than 60 seconds. The sensor is sensitive to occlusion only (the sensing distance will be different due to different colors and materials).

1. Please keep the surface of the lens clean. Stains or water mist will affect the performance of the built-in sensor located in the black area, resulting in the failure of high and above modes, please erase in time.
2. Pay attention to protect the lens from scratches. Scratches on the surface of the lens will reduce the luminous flux. In severe cases, it will affect the internal sensor performance, resulting in the failure of high and above modes.

HOW TO TURN IT INTO A HEADLAMP

1. Remove the pocket clip.



2. Put the flashlight into the bracket with the tail first.


3. Adjust the flashlight to the appropriate position.


• DO NOT throw the light directly into human eyes. This may cause temporary blindness, or permanent damage to the eyes.
• The battery can only be charged while installed in the flashlight. When charging, please use the provided charger for your light.

• Keep out of reach of children.
• If the light is about to be put aside for a long time or be transported, please unscrew the body for half a circle to cut off the circuit.
• DO NOT use the turbo mode continuously when the environmental temperature is high in case the light body is too hot to hold.
• Ensure the battery is inserted with the negative ( - ) end pointing to the head of the light ( LED side ).
• Take good care of the battery; if the battery needs to be replaced, please keep the removed battery in a safe place. DO NOT mix it with the conductive metals.

NOTICE:

• Moonlight and turbo mode are not the normal brightness levels ( low, medium, and high mode ). Under moonlight and turbo mode, press and hold the switch to enter the normal brightness level cycle.
• When the light is turned on, the light will return to the last used setting. Only moonlight, low, medium, and high mode can be memorized when the light is turned off. If the light is turned off on turbo mode, it will memorize high mode and will revert to the medium setting after 10 minutes. SOS mode cannot be memorized.
• When the battery capacity is less than 60%, the internal MCU will automatically shield the turbo mode and reset high mode to the highest brightness level.
• Active thermal management: On turbo mode, overheating can be avoided by adjusting the power output.

EXCLUSION CLAUSE

Olight is not liable for damages or injuries sustained resulting from the usage of the product inconsistent with the warnings in the manual, including but not limited to using the product inconsistent with the recommended lockout mode.

HOW TO OPERATE

ON/OFF: When the light is not locked out, single click switch to turn on/off.

CHANGE BRIGHTNESS LEVEL: When the light is on, press and hold the switch to cycle through the mode sequence moonlight (or turbo, SOS) - low - medium - high - low. The mode is selected when the switch is released.

MOONLIGHT MODE: When the light is off or in standby mode, press and hold the switch for over one second to access the moonlight mode.

DIRECT ACCESS TO TURBO: Enter and exit Turbo mode: quickly double click the switch to enter Turbo mode, and quickly double-click the switch again to exit Turbo mode. When the memorized mode is on high, quickly double-click the switch to exit Turbo mode and switch to medium mode. When the memorized mode is Medium, Low, or Moonlight, quickly double click the switch to exit turbo mode and switch to the previously memorized mode.

SOS: Quickly triple click the switch to access the SOS mode.

TIMER: The Perun 2 has a long (9 minutes) and short (3 minutes) timer when the light needs to be automatically turned off. When the flashlight is on, double click and hold the switch under the current brightness level to access the timer settings. A single blink accesses the short timer while two blinks accesses the long timer. The flashlight will automatically turn off when the timer is up. After the timer is set, double click and hold the switch to shift the timer settings. When the timer is up and the user is about to enter the timer again, the light will return to the last timer setting.

LOCKOUT: When the light is off, press and hold the switch for two seconds to access the button lockout mode. Under the lockout mode, press and hold the switch for less than two seconds without releasing it and the light will enter the moonlight mode again. The light will quit the moonlight mode once the switch is released and it will return to and stay at the button lockout mode.

BUTTON UNLOCK: Press and hold the switch for about two seconds until the light gives a single blink and then release the switch. The light will unlock and will return to the moonlight mode.

SPECIFICATIONS

	TURBO	HIGH	MEDIUM	LOW
	6889cd	1369cd	324cd	81cd
	166m	74m	36m	18m

IPX8	1.5m	(L)4.75 x (D)1.13in (L)120.7 x (D)28.6mm	161g / 5.68oz (Including Battery)

EU-DECLARATION OF CONFORMITY

EU-Declaration of Conformity can be found here:
https://olightworld.com/ec-declaration
