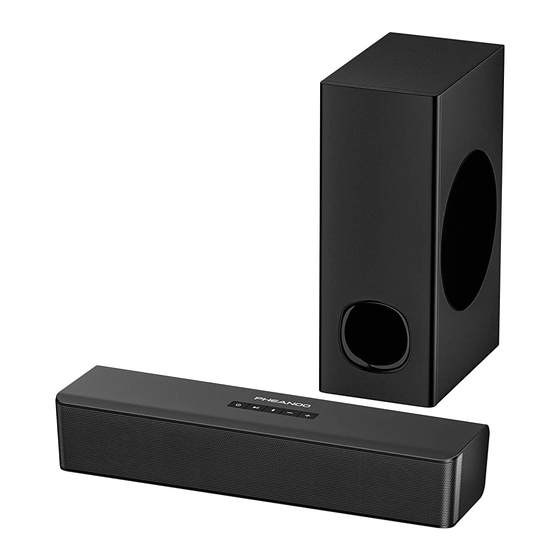

Pheanoo P15 Quick Start Manual

READ
ME FIRST
Everything you need to know about setting up included
Quick Start Guide
2

CONNECTING A TV

Are there any HDMI IN jacks labeled "ARC" on your TV?
YES
HDMI ARC PORT ONLY
HDMI ARC
OPTION 1 (Preferred) : HDMI ARC
If your TV has an HDMI ARC jack, connect the HDMI cable
(supplied) to your TV's HDMI ARC jack and the soundbar's
HDMI ARC jack.
NOTE
HDMI connection is unavailable if your TV does not support HDMI ARC
Connecting via HDMI(ARC) enable the following functions using the TV's
remote control:
– Turn the power on and off
Both the TV and the sound bar turn on/off at the same time.
– Volume adjustment
The sound bar's volume can be adjusted when the TV's audio output is set
to the sound bar.
5

CHANGE AUDIO SETTINGS ON YOUR TV

!
Very Important!!!
TV
1. Change the TV audio output format to
Consumer Electronics Control
2.Enable
(CEC)
on your TV
NOTE
These are names different brands might use for HDMI-CEC: Samsung(Anynet+++), Vizio(CEC),
Sony(Bravia Sync), LG(SimpLink), Sharp(Aquos Link), Philips (EasyLink), Roku(1-Touch Play)
WE ARE
READY TO
HELP
Prefer video tutorials ?
Take a look at our official Youtube Channel for the
set up guidance
Model: P15
NO
AUX IN
OPTION 2 : AUX
If your TV doesn't have an HDMI ARC jack, connect the 3.5mm
to RCA audio cable (supplied) to your TV's AUDIO OUT jack
and the soundbar's AUX IN jack.
NOTE
Make sure that the cable ends match the color of the ports.
Some TV models have AUDIO IN jack only. it can't deliver audio
signal to soundbar.
Samsung TV
Settings > Sound > Sound Output > select Receiver (HDMI)
Settings > Sound > Expert Settings > Digital Output Audio Format > PCM
Settings > General > External Device Manager > Anynet+(HDMI-CEC) > ON
Vizio TV
Settings > Audio > TV Speakers > Off
Settings > Audio > Digital Audio Out > PCM
Settings > System > CEC > Enabled
Sony TV
Settings > Display & Sounds > Audio Output > Speakers > Audio System
PCM
Settings > Display & Sounds > Audio Output > Digital Audio Out > PCM
Kindly refer to the Settings > Display & Sounds > Audio Output > Pass Through Mode > OFF
recommended TV audio
Settings >Channels&Inputs > External inputs > BRAVIA Sync > BRAVIA Sync control > ON
settings on the right
LG TV
All Settings > General-Devices > HDMI Settings > SIMPLINK(HDMI-CEC) > ON
All Settings > Sound > Advances Settings > Digital Sound Output > PCM
All Settings > Sound > Sound Out > Use Wired Speaker > HDMI(ARC)Device
TCL ROKU TV
Settings > Audio > Audio output > Auto
Settings > Audio > Digital audio format > Select Stereo
FIRMWARE
UPDATE
PDF
User
manual
SUPPORT@PHEANOO.COM
WWW.PHEANOO.COM/CONTACT
NO
OPTICAL IN
OPTION 3 : OPTICAL
If your TV doesn't have an HDMI ARC connector, connect the
optical cable (not supplied) to your TV's OPTICAL OUT jack and
the soundbar's OPTICAL IN jack.
NOTE
If you hear audio coming from TV's internal speaker, make sure TV
speaker off or min volume
Hisense ROKU TV
Settings >Audio >TV Speakers >Select Disabled
Settings >Audio>Digital Audio out >Select Stereo
ONN ROKU TV
Settings >Audio >TV Speakers >Select Disabled
Settings >Audio>Digital Audio Format >Select Stereo
TCL TV(Powered by Android)
TV Settings >Audio >Advanced Settings >Digital Audio Out >Select PCM
TV Settings >System>T-Link>Select ON
Hisense TV (Powered by Android)
Settings >Sound >Speakers >select ARC
Settings >Sound>Advanced Settings>Digital Audio Out >select PCM
Sharp TV
Settings>sound>Advanced audio settings>TV Speaker & ARC>select ARC
Settings>sound>Advanced audio settings>Digital Audio Out>select PCM
Insignia Fire TV
Settigs >Display & Sounds >Audio Output> TV Speakers>select OFF
Settings > Display & Sounds > Audio Output > Digital Audio Format > select PCM
Settings > Display & Sounds > HDMI CEC Device Control >ON
If you do not find your TV or streaming devices here, Contact us at : support@pheanoo.com
1
CHECKING THE COMPONENTS
Soundbar x 1 HDMI(ARC) cable x 1
Subwoofer x 1 AC power cord
User manual
Screws bagx 1 User manual x 1
Remote control x 1
3

POWER YOUR SYSTEM

AC IN SW OUT OPTICAL IN AUX IN SERVICE HDMI ARC
"Batteries not included for shipping safety. Two AAA batteries needed"
4

CHOOSE INPUT MODE

Select the soundbar input mode by pressing the TV ARC, AUX, OPT, and
BT mode button on the remote control
INPUT MODE INDICATORS
TV ARC mode Option 1 (Preferred) : HDMI ARC
AUX mode Option 2 : AUX
OPT mode Option 3 : Optical
BT mode BLUETOOTH CONNECTION
LED Indicators are located here
NOTE
Input mode on soundbar needs to match the connected external device (TV, Projector, Cable box, etc.) output mode.
Make sure LED light on soundbar matches TV connection method.
Toshiba Fire TV
Settigs >Display & Sounds >Audio Output> TV Speakers>select OFF
Settings > Display & Sounds > Audio Output > Digital Audio Format > select PCM
Settings > Display & Sounds > HDMI CEC Device Control >ON
Panasonic TV
Menu >Audio Settings >Advanced Audio >TV Speakers >select OFF
Menu >Audio Settings >Advanced Audio>HDMI>select DIGITAL
Menu >Audio Settings >Advanced Audio>Digital Audio Out >select PCM
Sharp TV (Powered by Android)
settings > devices preferences > sound > Digital Output > select PCM
settings > devices preferences > sound > Speakers > External audio system
Roku TV Stick
Settings>Audio>Digital Output Format>Stereo
Settings >Audio>Audio Mode>Select Stereo
Fire TV stick
Settings >Display & Sounds >Audio>Surround Sound>PCM
Settings > Display & Sounds > HDMI CEC Device Control >ON
Continued on back page
3.5mm to RCA audio cable
mounting template

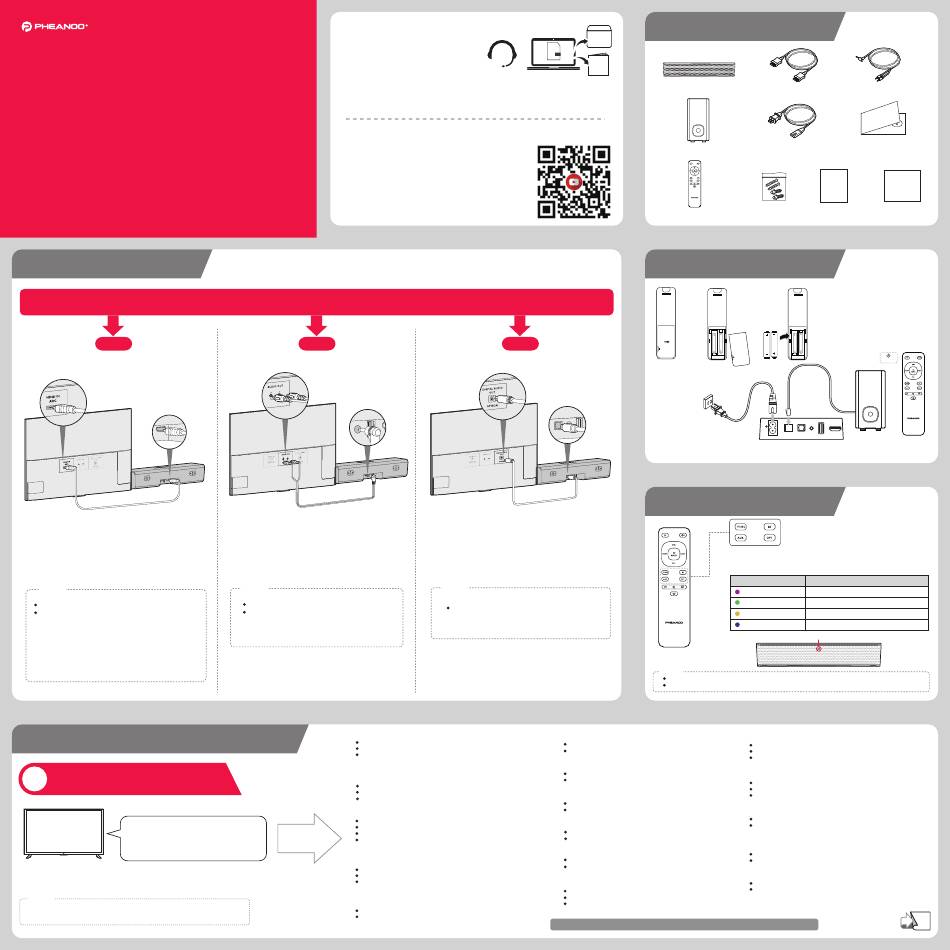

Quick
Start Guide
Quick Start Guide x 1
Turning On
TV CONNECTION
