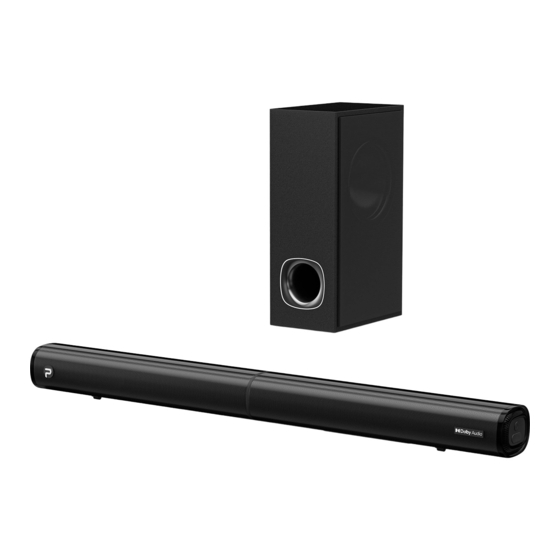

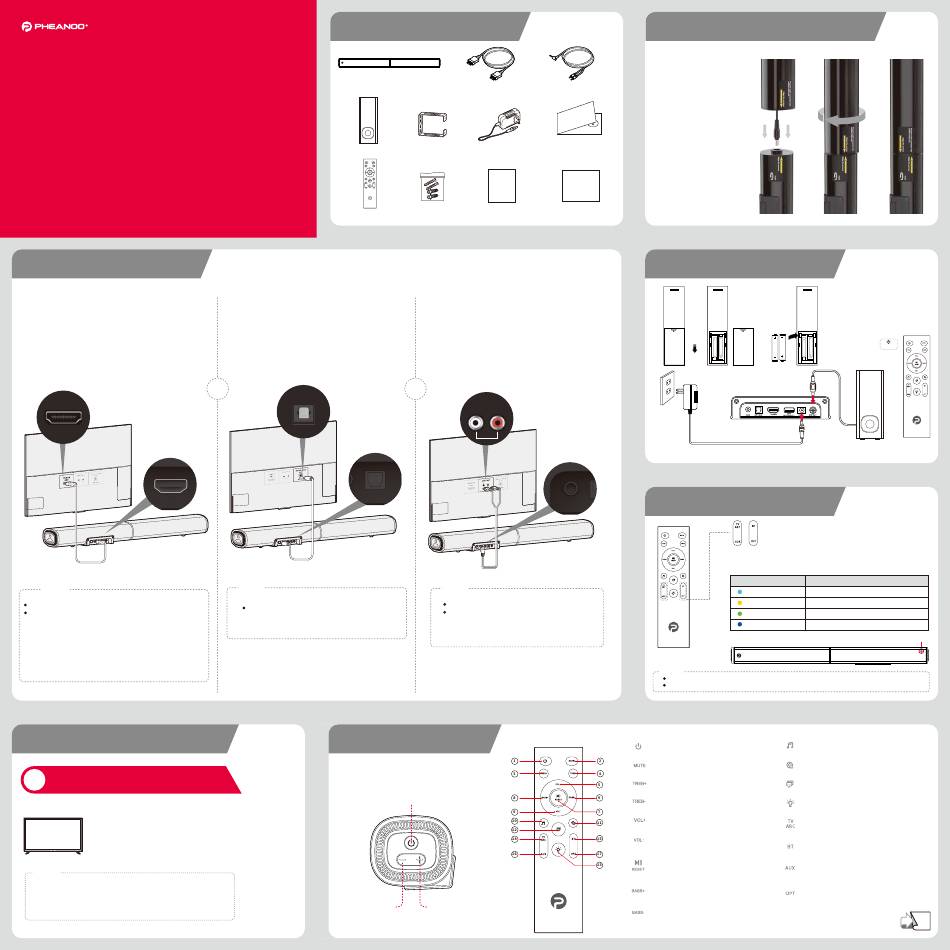

Pheanoo D6 Quick Start Manual

READ
ME FIRST
Everything you need to know about setting up included
Quick Start Guide
3
CONNECTING A TV
OPTION 1 (Preferred) : HDMI ARC
If the TV has an ARC (Audio Return Channel) label
on one of its HDMI ports, connect the HDMI cable to
your TV's HDMI ARC jack and the soundbar's
TV(ARC) jack.
HDMI IN
HDMI ARC PORT ONLY
ARC
TV(ARC)
NOTE
HDMI connection is unavailable if your TV does not have a HDMI port labeled "ARC"
Connecting via HDMI(ARC) enable the following functions using the TV's remote
control:
– Turn the power on and off
Both the TV and the sound bar turn on/off at the same time.
– Volume adjustment
The sound bar's volume can be adjusted when the TV's audio output is set to the
sound bar.
6
CHANGE AUDIO SETTINGS ON YOUR TV
!
Very Important!!!
Consumer Electronics Control
2.Enable
TV
(CEC)
on your TV
(Exclusive for Option 1: HDMI ARC connection)
NOTE
1. Only Option 1: HDMI ARC connections needs to enable CEC
2. These are names different brands might use for HDMI-CEC: Samsung(Anynet+++), Vizio(CEC),
Sony(Bravia Sync), LG(SimpLink), Sharp(Aquos Link), Philips (EasyLink), Roku(1-Touch Play)
1
CHECKING THE COMPONENTS
Soundbar x 1
Subwoofer x 1
Model: D6
Remote control x 1
OPTION 2 : OPTICAL
If the TV has no ARC label on its HDMI ports,
connect the optical cable to your TV's OPTICAL
OUT jack and the soundbar's OPTICAL jack.
OR
DIGITAL AUDIO
OUT
OPTICAL
OPTICAL
NOTE
If you hear audio coming from TV's internal speaker, make sure TV
speaker off or min volume
7
CONTROL YOUR SOUNDBAR
7a. Top panel
Long Press 3 Seconds---Power On/Off
Short Press 1 Second---Switch Input Source
Volume Down
HDMI(ARC) cable x 1 3.5mm to RCA audio cable x 1
Mounting template x 1
Adapter x 1
Wall brackets x 2
User manual
Quick
Start Guide
Screws bagx 1 User manual x 1 Quick Start Guide x 1
OPTION 3 : AUX
If the TV has no ARC label on its HDMI ports, connect
the 3.5mm to RCA audio cable to your TV's AUDIO
OUT jack and the soundbar's AUX jack.
OR
AUDIO OUT
L R
AUX
NOTE
Make sure that the cable ends match the color of the ports.
Some TV models have AUDIO IN jack only. it can't deliver audio
signal to soundbar.
7b. Remote control
Volume Up
2
SOUNDBAR ASSEMBLE DETAILS
STEP1
STEP 1: Plug the audio connector
into the audio input port on
another main unit
STEP 2: Align the arrows on the
two stickers
STEP 3: Twist clockwise about 20
degrees until locks securely
4
POWER YOUR SYSTEM
"Batteries not included for shipping safety. Two AAA batteries needed"
5
CHOOSE INPUT MODE
Select the soundbar input mode by pressing the TV ARC, AUX, OPT, and
BT mode button on the remote control
INPUT MODE INDICATORS
TV ARC mode Option 1 (Preferred) : HDMI ARC
OPT mode Option 2 : OPTICAL
AUX mode Option 3 : AUX
BT mode BLUETOOTH CONNECTION
NOTE
Input mode on soundbar needs to match the connected external device (TV, Projector, Cable box, etc.) output mode.
Make sure LED light on soundbar matches TV connection method.
10. MUSIC
1. POWER
Selects MUSIC for the sound effect
Turns on the Sound Bar or sets it to standby mode.
11. MOVIE
2. MUTE
Selects MOVIE for the sound effect
Turns off the sound temporarily
3.TREB+ 12. DIALOGUE
Increase treble level Selects DIALOGUE for the sound effect
4.TREB-
13. INDICATOR
Decrease treble level
Press to turns on/off the indicators on the Bar Speaker.
5. VOL+
14. TV ARC
Increase volume
Set the input source for the Soundbar to HDMI ARC mode
6. VOL-
15. BT
Decrease volume
Set the input source for the Soundbar to Bluetooth mode
7. RESET(PLAY/PAUSE)
Start, pause or resume play in BT Mode Press and
16. AUX
hold for about 2 seconds to reset the volume
Set the input source for the Soundbar to AUX mode
level and switch to the Music EQ effect.
8. BASS+ 17. OPT
Increase bass level Set the input source for the Soundbar to Optical mode
9. BASS-
Decrease bass level
Continued on back page
STEP2 STEP3
Turning On
TV CONNECTION
LED Indicators are located here
