Relion
SERIES
670/650 series and SAM600-IO IEC
Accessories
Product Guide

Advertisement

Table of Contents
loading

Related Manuals for ABB Relion Series

Summary of Contents for ABB Relion Series

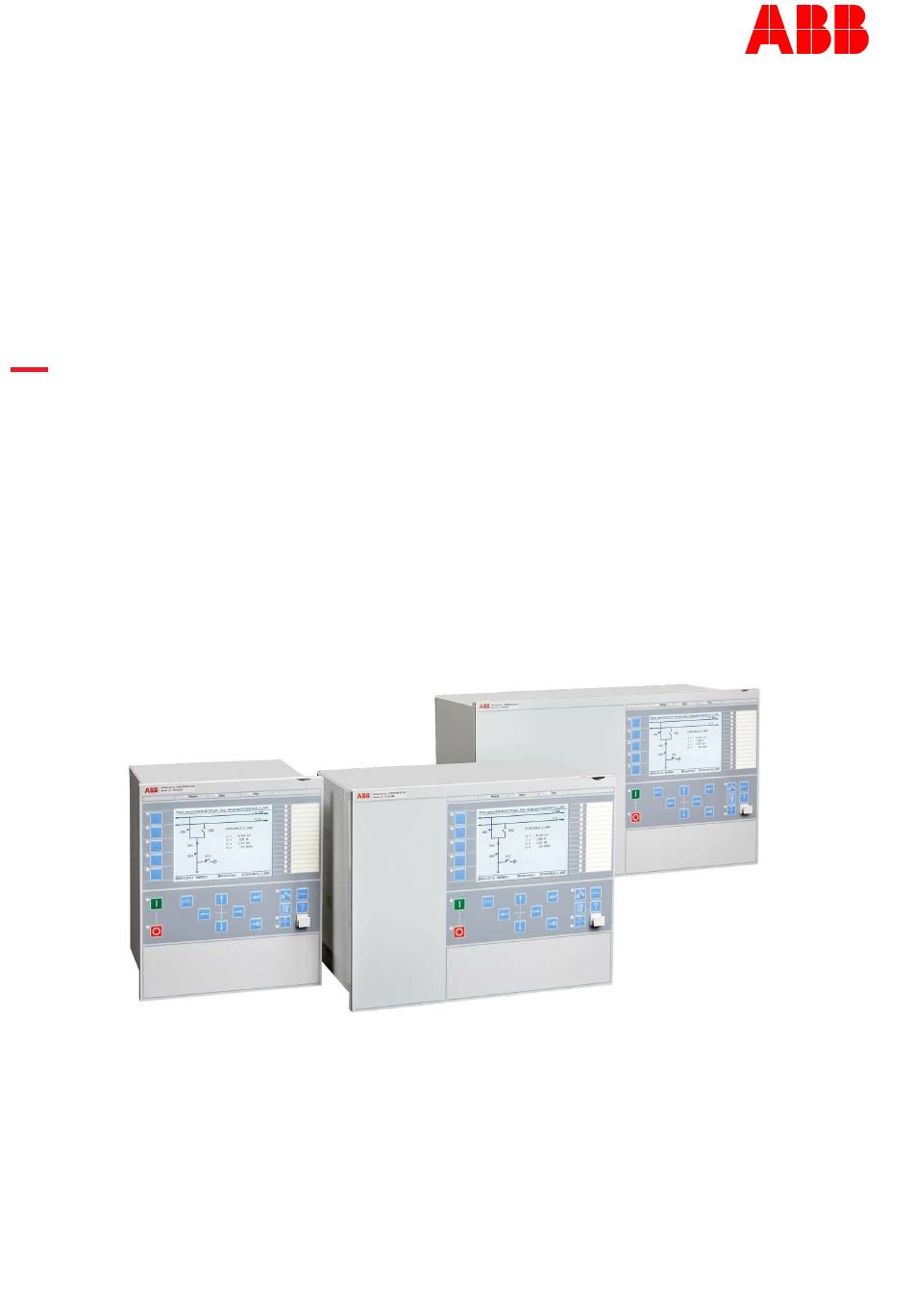

  • Page 1 ® Relion SERIES 670/650 series and SAM600-IO IEC Accessories Product Guide...
  • Page 2 (eay@cryptsoft.com) and Tim Hudson (tjh@cryptsoft.com). Trademarks ABB is a registered trademark of ABB Asea Brown Boveri Ltd. Manufactured by/for a Hitachi Power Grids company. All other brand or product names mentioned in this document may be trademarks or registered trademarks of their respective holders.
  • Page 3 Disclaimer This document has been carefully checked by Hitachi Power Grids but deviations cannot be completely ruled out. In case any errors are detected, the reader is kindly requested to notify the manufacturer. Other than under explicit contractual commitments, in no event shall Hitachi Power Grids be responsible or liable for any loss or damage resulting from the use of this manual or the application of the equipment.
  • Page 4 Conformity This product complies with the directive of the Council of the European Communities on the approximation of the laws of the Member States relating to electromagnetic compatibility (EMC Directive 2004/108/EC) and concerning electrical equipment for use within specified voltage limits (Low-voltage directive 2006/95/EC). This conformity is the result of tests conducted by Hitachi Power Grids in accordance with the product standard EN 60255-26 for the EMC directive, and with the product standards EN 60255-1 and EN 60255-27 for the low voltage directive.

  • Page 5: Table Of Contents

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Contents 1. Available accessories............ 6 13. Coupling capacitor unit REX061........ 15 2. Mounting kits..............6 14. Shunt resistor unit REX062........17 3. RHGS cases..............8 15. Voltage injection unit RXTTE4........19 4. Test switch module............8 16.

  • Page 6: Available Accessories

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Issued: June 2021 Revision: K Configuration and monitoring tools SEMOD124331-1 v1 M1890-1 v2 1. Available accessories • Protection and control manager, PCM600, used to – configure the IED Mounting kits – set parameters M1831-1 v3 •...
  • Page 7 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K IEC04000452-3-en.vsd IEC04000452 V3 EN-US Figure 1. The rack mounting kit IEC16000080=1=en.vsd IEC16000080 V1 EN-US Figure 3. The flush mounting kit (release 2.2 onwards) Flush mounting for 670 and 650 series M1929-3 v2 IP652-1 v2 Use the flush mount kit for installation in a panel cut-out.

  • Page 8: Rhgs Cases

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K For more details on wall mounting, refer to Installation Protection cover for rear area manual. M10592-3 v1 The protection cover for the rear area is a steel cover with a slot for cable entrance at the bottom part. IEC05000503-3-en.vsdx IEC05000503 V3 EN-US Figure 7.

  • Page 9: Key Switch For Settings

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Test switch DC switch Spare seat, can be used for Key switch RHGS 6 case xx1MRK000371-DA_1.vsd IEC1MRK000371-DA-1 V1 EN-US Figure 8. Example of a test switch module Test switch M1952-3 v1 6.

  • Page 10: Connectors

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Push button and selector switch Breaker SEMOD121142-4 v2 The push button is available with or without pilot lamp and with one or two buttons. It is used to reset the lock-out relays when an external independent lock-out and lock-out RXME 1 indications is required.

  • Page 11: External Resistor Unit

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K to the wires. Use the bridge connector to jumper terminal points in a connector. Use ring-lugs to connect the wires to terminal points of a connector of ring-lug type. Select ring-lugs suitable to wiring dimension and size of fitting screw.
  • Page 12 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K [18.31] [0.33] [0.79] [7.68] [18.98] Dimension mm [inches] xx06000232.eps IEC06000232 V2 EN-US Figure 18. Dimension drawing of a one phase high impedance resistor unit [18.31] [0.33] [0.79] [7.68] [18.98] en06000234.eps [inches] IEC06000234 V2 EN-US Figure 19.

  • Page 13: External Current Transformer Unit

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K 9. External current transformer unit Summation CT SEMOD121170-4 v3 The external auxiliary summation current transformers are used for the cost effective summation type differential principle. xx06000061.eps IEC06000061 V1 EN-US Figure 20. Summation CT 482.6 [19] Dimension...

  • Page 14: Injection Unit Rex060

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K xx04000155.vsd IEC04000155 V2 EN-US Figure 23. Antenna with console SEMOD55693-2 v5 where: GPS antenna TNC connector Console, 78x150 mm Mounting holes 5.5 mm Tab for securing of antenna cable Vertical mounting position Horizontal mounting position Table 1.

  • Page 15: Coupling Capacitor Unit Rex061

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Local operation shall only be performed Rotor injection module RIM according to the operation regulations set GUID-B2CA6C9E-2A24-483C-B9C2-47FFF2BBB283 v2 The RIM module is installed into the REX060 enclosure. up by the relevant operation authority of the The RIM module generates a square wave voltage signal for plant.
  • Page 16 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Coupling capacitor unit REX061 GUID-59726B2B-0888-4CC1-8DEA-209F77CA5173 v5 IEC11000019-2-en.vsd IEC11000019 V1 EN-US Figure 25. Coupling capacitor unit REX061 Hitachi Power Grids © 2017 - 2021 Hitachi Power Grids. All rights reserved.

  • Page 17: Shunt Resistor Unit Rex062

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K 217 [8,54] 155 [6,1] 2 [0,079] 84 [3,3] 84 [3,3] Ø 5,5 [0,22] IEC11000037-2-en.vsd IEC11000037 V2 EN-US Figure 26. Measure and drilling plan Example 1 REX061 shall be mounted close to the generator in order to limit the exposure of the field circuit.
  • Page 18 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Shunt resistor unit REX062 GUID-184D9033-33F3-4F85-8847-E9FDC95C3C41 v5 IEC11000038-1-en.vsd IEC11000038 V1 EN-US Figure 27. Shunt resistor unit REX062 Hitachi Power Grids © 2017 - 2021 Hitachi Power Grids. All rights reserved.

  • Page 19: Voltage Injection Unit Rxtte4

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K 217 [8,54] 155 [6,1] 2 [0,079] 84 [3,3] 84 [3,3] Ø 5,5 [0,22] IEC11000039-2-en.vsd IEC11000039 V2 EN-US Figure 28. REX062 measures and drilling plan REX062 shall be mounted close to the IED. It is capacitors and resistors into the rotor circuit.
  • Page 20 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Rotor earth fault protection can be RXTTE4 integrated in the IED among all other protection functions typically required for generator protection. How this is achieved by using COMBIFLEX injection unit RXTTE4 is described in Instruction 1MRG001910.

  • Page 21: Esd Field Kit

    Use PCM600 to adjust the default configuration, or to make a new configuration. For more information about PCM600 visit www.abb.com/substationautomation. 19. Cable and dust cover Front communication M1876-3 v2 The front connection cable is used to connect a PC to the RJ45 port on the local human machine interface.

  • Page 22: User Interface

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K M2002-3 v3 http://www.abb.com/substationautomation for more • Display (LCD) details about the tool, PC requirements etc. • Keypad • LED indicators • Communication port for PCM600 21. User interface • Serial cable for connection between the SAM600-IO LHMI service kit and the service port on the device.

  • Page 23: Ordering

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K 22. Ordering Mounting accessories M1823-5 v6 Name For case size Quantity Article number Protection cover for rear area (release 2.1 and earlier): consisting of a steel cover with a slot for cable entrance at the bottom part, fixing screws 6U x 1/1 1MRK 002 420-AA and assembly instruction.
  • Page 24 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K RHGS Cases SEMOD121182-4 v2 RHGS 6 with door, size 6Ux1/4, color RAL 7035 Quantity: 1MRK 000 315- AG RUTAKVADRA T V1 EN-US RHGS 12 with door, size 6Ux1/2, color RAL 7035 Quantity: 1MRK 000 315- BH RUTAKVADRA...
  • Page 25 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Product Remark Type of earthing Criteria Article number RET / REG 670 2-wind / 1CB Internal neutral RK 926 315-BD RUTA V1 EN- External neutral Quantity: RK 926 315-BH RUTA V1 EN- 2-wind / 2CB Internal neutral 3 phase current groups,...
  • Page 26 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Product Remark Type of earthing Criteria Article number Internal neutral 1 three phase current RK 926 315-BN group RUTA V1 EN- REB 670 Internal neutral 4 three phase current RK 926 315-CA groups / 4 bays RUTA V1 EN- External neutral...
  • Page 27 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Connectors M2041-3 v4 Female connector Quantity: 1MKC 860 001-2 18 terminals of screw compression type, conductor area max 1 x 2.5 mm or 2 x 1.0 mm , 1 pc RUTAKVADRA T V1 EN-US Female connector Quantity:...
  • Page 28 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K GPS antenna and mounting details GUID-516667A3-593C-4245-8EAE-198B9DA7F07B v1 GPS antenna, including mounting kits Quantity: 1MRK 001 640-AA Cable for antenna, 20 m Quantity: 1MRK 001 665-AA Cable for antenna, 40 m Quantity: 1MRK 001 665-BA Hitachi Power Grids ©...
  • Page 29 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K Injection equipment GUID-3447C871-562C-46B4-A36C-0B8B62D38E48 v8 Rule: If injection equipment is ordered, ROTIPHIZ or STTIPHIZ is required in the IED. Injection unit, REX060 Quantity: 1MRK 002 500-AA The REX060 injection unit requires a connection to a VT across the generator neutral point earthing resistor.
  • Page 30 670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K External interface units for Rotor earth fault protection GUID-A7E65525-260E-4245-85C2-20A26B0DE798 v4 Injection unit for Rotor earth fault protection (RXTTE 4) Quantity: 1MRK 002 108-BA Protective resistor on plate. R1 = 100 Ώ, R2 = 120 Ώ Quantity: RK 795 102-AD Protective resistor on plate.

  • Page 31: Related Documents

    670/650 series and SAM600-IO IEC 1MRK 514 012-BEN K SAM600-IO LHMI service kit GUID-AA273B49-34F4-4F54-8F22-F4A4261785A6 v2 SAM600-IO LHMI service kit Quantity: 1MRK 000 028-SA 23. Related documents M1827-2 v4 Combiflex, connection and installation 1MRK 513 003-BEN components Combitest 1MRK 512 001-BEN Auxiliary, signalling and tripping relays 1MRK 508 015-BEN Auxiliary relays...
  • Page 33 ABB Power Grids Sweden AB Grid Automation Products SE-721 59 Västerås, Sweden Phone +46 (0) 10 738 00 00 Scan this QR code to visit our website https://hitachiabb-powergrids.com/protection-control © 2017 - 2021 Hitachi Power Grids. All rights reserved.
