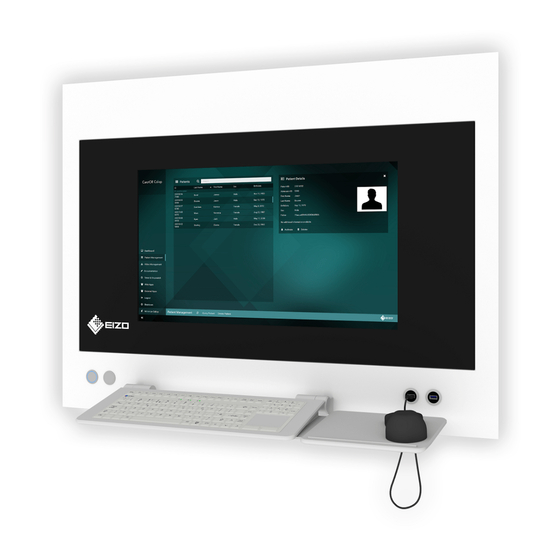

Eizo CuratOR SP1-24 Instructions For Use Manual

Surgical panel

Hide thumbs Also See for CuratOR SP1-24:

Instructions for use manual (26 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

Instructions for Use

Digital image and video viewing system

Important

Please read the safety information and all information delivered

with the product carefully to familiarize yourself with safe and

effective usage.

Table of Contents

Need help?

Do you have a question about the CuratOR SP1-24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eizo CuratOR SP1-24

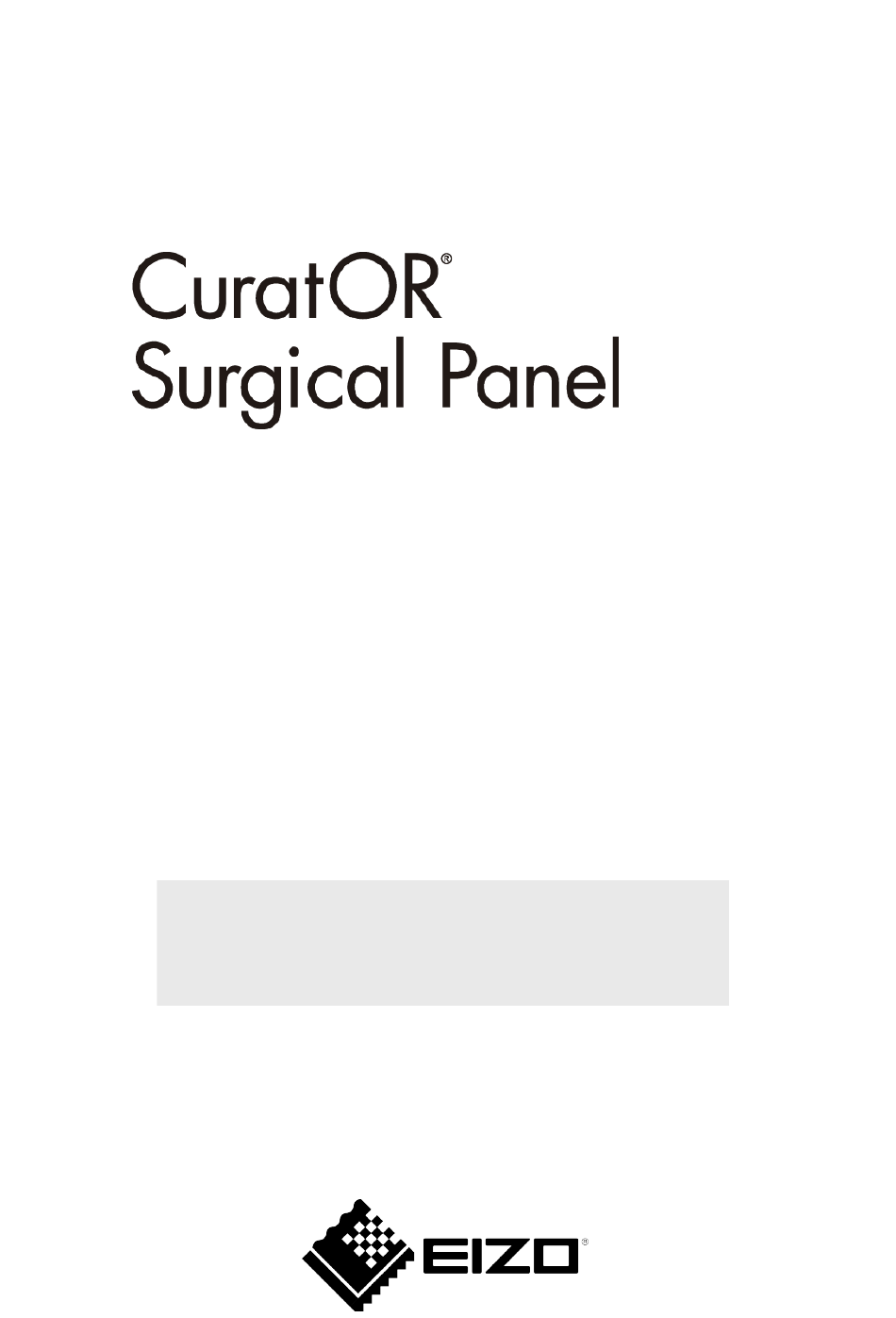

Page 1 Instructions for Use Digital image and video viewing system Important Please read the safety information and all information delivered with the product carefully to familiarize yourself with safe and effective usage.
Page 2: Legal Information
Use of EIZO products WARNING EIZO products may only be used for the applications described in the catalog and in the relevant tech- nical documentation. If products and components from other manufacturers are used, these must be recommended or approved by EIZO. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 3: Table Of Contents
Table of contents Table of contents Legal information ...................... 2 1 Introduction........................ 4 Contents of this document .................. 4 Intended use ...................... 4 User groups ...................... 4 2 Safety information ...................... 5 General safety instructions .................. 5 3 Description........................ 7 General information .................... 7 Design........................ 8 4 Installation and start-up....................
Page 4: Introduction
Note • The current electronic version of instructions for use can be found on the EIZO GmbH home page www.eizo-or.com. • Information regarding installation and start-up of the CuratOR Surgical Panel will be provided to you by your EIZO contact.
Page 5: Safety Information
Safety information 2.1 General safety instructions 2 Safety information 2.1 General safety instructions Careful operation is a prerequisite for correct and safe operation of the CuratOR Surgical Panel. The devices may only be used for applications for which they are commonly used. For safety reasons, the following precautions must be observed: DANGER Please observe all warning information present on the device and in the instructions for use...
Page 6 Safety information 2.1 General safety instructions CAUTION Care of device / cleaning agents • Remove water drops immediately. • Only clean the surfaces using the cleaning agents referred to in the Instructions for Use. What to do if the device is faulty If the following conditions exist, the device must be disconnected from line power and checked by qualified personnel: •...
Page 7: Description
By default, the Surgical Panel comes with a Microsoft Windows operating system. Follow the information in the corresponding documentation. If you are using EIZO Caliop software, please follow the information in the software docu- mentation. Input devices include a medical silicone keypad with or without touch pad, which is fit into a purpose-built holder, and a medical silicone mouse.
Page 8: Design
Description 3.2 Design Standard versions of the CuratOR Surgical Panel Standard version Description SP1-24 Nurse Station with 24" FHD panel. SP1-24T Nurse Station with 24" FHD Touchscreen. SP1-324K Viewing Station with 32" 4K Panel. SP1-324KT Viewing Station with 32" 4K Touchscreen. SP1-434K Viewing Station with 43"...
Page 9 Description 3.2 Design The following components can also be included as options: • Button for switching the connected video signals (VMbasic) • Input and output interfaces • Blanking plate for upgrade of interfaces Examples Fig.: CuratOR Surgical Panel SP2-24-494K / SP2-24T-494K Fig.: CuratOR Surgical Panel SP1-494K CuratOR Surgical Panel Instructions for Use, 11/2022...
Page 10: Installation And Start-Up
Start-up includes the first intended use of the CuratOR Surgical Panel. CAUTION Installation and start-up • The CuratOR Surgical Panel may only be installed and put into operation by EIZO em- ployees or by service personnel. • The CuratOR Surgical Panel must be installed and operated in accordance with all applicable national directives and regulations currently in effect.
Page 11: Operation
Operation 5.1 Switching on and off 5 Operation 5.1 Switching on and off 5.1.1 Switch on 1. Use the switch labeled “Power Switch” to turn on the system. ð Operating voltage is turned on. 2. Wait until the border of the switch labeled “PC on/off” illuminates green. ð...
Page 12: Shutdown
Operation 5.2 Avoiding image sticking 5.1.2 Shutdown NOTICE Note the sequence during shutdown The blue-bordered switch labeled “Power Switch” may not be turned off until the border of the switch labeled “PC on/off” is off. Of necessity, any other sequence will cause the IT components to be abruptly discon- nected from the power supply, which can result in hardware damage such as hard drive failure.
Page 13: Check For Pixel Defects
Use trusted data media only. Observe the facility's applicable security guidelines. Interface extension (video) The front can be equipped with optional interfaces. The configuration must be coordinated with EIZO on a project-by-project basis. NOTICE Connecting devices • During connection of devices, make sure the socket will not be damaged when inserting the connector.
Page 14: Switching Video Sources
Operation 5.6 Switching video sources 5.6 Switching video sources The Surgical Panel is equipped with video source switching as standard. The video signals connected internally or to the front can be switched through for display by pressing a button. Fig.: Button for switching the video sources 5.7 VMbasic video management (optional) The modular design of the Surgical Panel enables project-specific configuration.
Page 15: Cleaning And Maintenance
Cleaning and Maintenance 6.1 Cleaning 6 Cleaning and Maintenance 6.1 Cleaning External cleaning of the protective front pane and housing should be incorporated into the OR cleaning plan. NOTICE Cleaning / Disinfection • Clean/disinfect the surfaces of the device with a soft cloth and, if necessary, with a rec- ommended cleaning agent/disinfectant.
Page 16: Maintenance
6.2 Maintenance WARNING Maintenance • Maintenance may only be performed by EIZO or service personnel. • Maintenance may not take place during device use or ongoing treatment. Note • Perform maintenance and inspection at least once per year, including the protective conductor test.
Page 17: Technical Specifications
• Specifications regarding the CuratOR Surgical Panel such as data on the housing, panel, as well as dimensions of the standard versions can be found on our website. • The product brochures with additional information can also be found on our website www.eizo-or.com. 7.1 Power supply Line voltage...
Page 18: Appendix
Appendix 8.1 Information on electromagnetic compatibility (EMC) 8 Appendix 8.1 Information on electromagnetic compatibility (EMC) CuratOR Surgical Panel is a digital image and video viewing system and is intended for use in the OR or other medical environments. NOTICE Special EMC provisions are required for use of the CuratOR Surgical Panel. Installation, assembly, and operation must take place in compliance with the following instructions: •...
Page 19 Appendix 8.1 Information on electromagnetic compatibility (EMC) Electromagnetic interference immunity The CuratOR Surgical Panel was tested with the following compliance levels in accordance with the test requirements for professional healthcare facilities, as established in IEC/EN 60601-1-2. Operators and users of the device have to ensure that the device is used in such an environment. Interference Measurement Compliance...
Page 20 Appendix 8.1 Information on electromagnetic compatibility (EMC) Electromagnetic interference immunity The CuratOR Surgical Panel was tested with the following compliance levels in accordance with the test requirements for professional healthcare facilities, as established in IEC/EN 60601-1-2. Operators and users of the device have to ensure that the device is used in such an environment. Interference Measure- Compliance...
Page 21 Appendix 8.1 Information on electromagnetic compatibility (EMC) Recommended minimum distance between portable or mobile RF communications devices and the CuratOR Surgical Panel The CuratOR Surgical Panel is intended for use in an electromagnetic environment in which interfer- ence due to electromagnetic radiation is controlled. For other portable and mobile RF communication devices (transmitters), the recommended minimum distance between the portable and mobile RF communication devices (transmitters) and the device applies as listed below.
Page 22 Appendix 8.1 Information on electromagnetic compatibility (EMC) Recommended minimum distance between portable or mobile RF communications devices and the CuratOR Surgical Panel The CuratOR Surgical Panel is intended for use in an electromagnetic environment in which interfer- ence due to electromagnetic radiation is controlled. The operator or user of the device can help pre- vent electromagnetic interference by maintaining the recommended minimum distance between por- table and mobile RF communications devices (transmitters) and the device.
Page 23: Markings And Symbols
Appendix 8.2 Markings and symbols 8.2 Markings and symbols Marking / symbol Meaning Caution symbol CE marking (EU conformity mark) UKCA marking (UK conformity mark) Legal manufacturer WEEE marking: Product must be disposed of separately; materials may be recy- cled Fuse Protective ground Equipotential bonding connection...
Page 24: Environmental Protection
The operator alone is responsible for the safe combination and use with other devices. Additional accessories may be installed only in consultation with EIZO GmbH. 8.5 Contact Support during installation and for technical questions www.eizo-or.com...
Page 25: Trademarks
ENERGY STAR is a registered trademark of the United States Environmental Protection Agency in the United States and other countries. EIZO, the EIZO Logo, ColorEdge, CuratOR, DuraVision, FlexScan, FORIS, RadiCS, Radi- Force, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corpora- tion in Japan and other countries.
