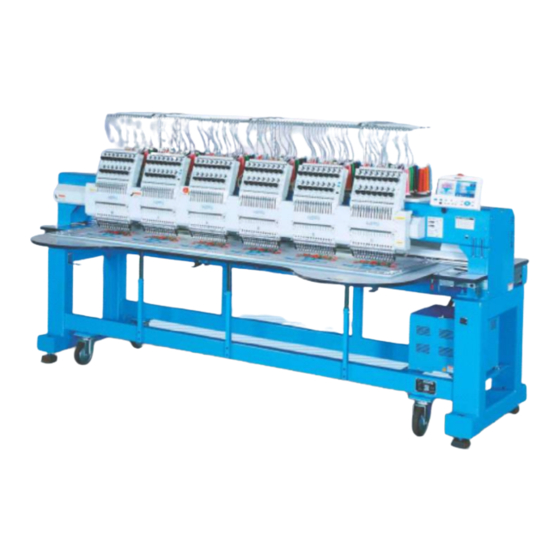

How to install the Borer device to model HCR
Ver. 1.0
For qualified personal only
For safe adjustment and repair ------------------------------------ 2
1. Additional parts and steps for parts replacement ------------ 3
2. Update machine program ---------------------------------------- 4
4. Installation of Borer device --------------------------------------- 5
Advertisement
Related Manuals for Happy Industrial Corporation HCR Series
Summary of Contents for Happy Industrial Corporation HCR Series
- Page 1 How to install the Borer device to model HCR Ver. 1.0 For qualified personal only For safe adjustment and repair ------------------------------------ 2 1. Additional parts and steps for parts replacement ------------ 3 2. Update machine program ---------------------------------------- 4 4. Installation of Borer device --------------------------------------- 5...
-
Page 2: For Safe Adjustment And Repair
# For safe adjustment and repair # In order to conduct adjustment and repair safely and surely, Please be sure to abide by what is mentioned in this manual to prevent trouble. 1. When you conduct adjustment and repair of this embroidery machine or handle electric related parts, you are required to take technical lesson in advance. - Page 3 1. Required Parts and Steps of installation For making Borer embroidery on HCR machine, the below Borer device set is required. (Required same quantity of number of machine head) Also Needle plate (universal) which has hole for Borer blade is required to use Boer device. In case your machine does not have this type of needle plate, please prepare this needle plate too.
- Page 4 (Set Borer) icon is on submenu. 2-2 Change Machine setting + Machine setting Borer device: Yes (Use of Borer device YES) + Refer manual [ Maintenance Manual for HCR series ] Maintenance mode E5-1 How to enter maintenance mode E5-5 Setup- Machine setting...
-
Page 5: Installation
3. Installation of Borer device Setting of Blade holding bracket Installation 1.Temporally set Cap screw M3x5 and Cap screw M4x10 to * Borer device should be installed on Needle no.15. Blade holding bracket. 1. Move moving head to the position which 1 needle is Cap screw M3x5 should not be seen from hole of bracket. - Page 6 3. Loosen screw for needle bar boss and take the following items out ; * Pressure foot spring (lower) * Pressure foot block * Cushion * Pressure foot boss * Pressure foot spring 5. Set Blade holding bracket to Needle bar and fix by Cap Screw for needle bar boss screw M3x5 at lower hole of needle bar.
- Page 7 6. Loosen screw for needle bar boss and set needle bar 8. Set Borer plate and fix by Set screws which were taken in position with the following condition, then tighten screw previous operation. Keep pressing Borer plate to the arrow again ;...
- Page 8 11. Move moving head to the position which 15 needle is 13. Turn upper shaft to set dial disc to [ 270 degrees (C active. point) ]. Press needle bar down until needle driver catches needle bar boss. Turn upper shaft to set dial disc to [ L+5 degrees ]. 14.
- Page 9 2010 / 8 HAPPY Industrial Corporation 9-5. TAITO 2-CHOME,TAITO-KU,TOKYO,JAPAN TEL +81-3-3834-0711 FAX +81-3-3835-8917...
