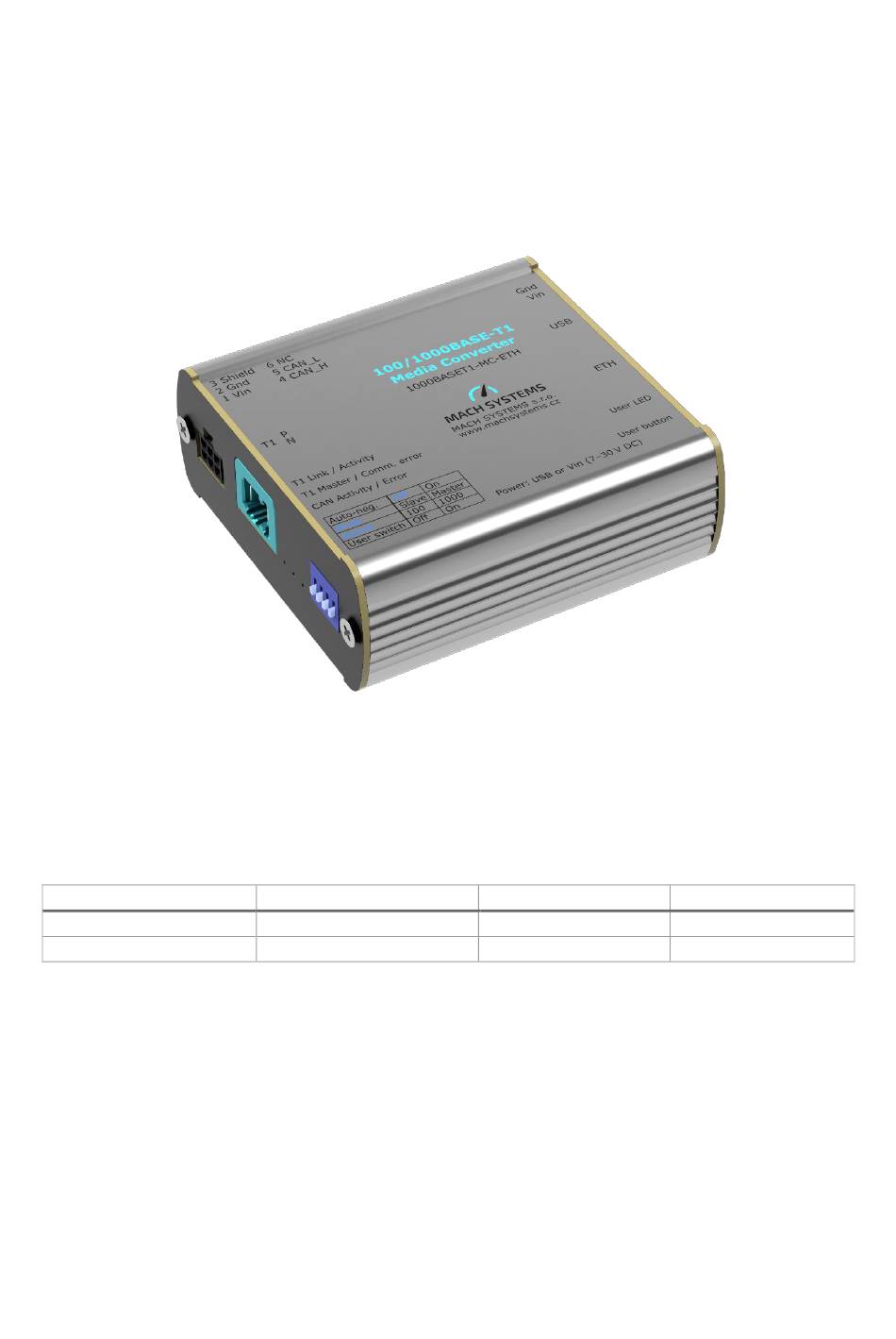

- Page 1 100/1000BASE-T1 Media Converter User Manual CHANGES Date Description Created By Review By 20.12.2022 Initial release...
-
Page 2: Table Of Contents
Firmware Update ........................15 Legal Information .......................... 17 Usage Warning ........................17 Disposal and Recycling Information ..................17 Patents, Copyrights and Trademarks ..................17 References ............................. 18 Ordering Information ........................18 MACH SYSTEMS s.r.o. Page 2 of 18 www.machsystems.cz info@machsystems.cz... - Page 3 Figure 6 CAN bus termination ....................... 11 Figure 7 PC application .......................... 13 Figure 7 TE MATEnet cable harness ...................... 13 Figure 7 Molex Micro-Fit cable harness ....................14 Figure 7 Molex Micro-Fit cable harness details..................14 MACH SYSTEMS s.r.o. Page 3 of 18 www.machsystems.cz info@machsystems.cz...
-
Page 4: About

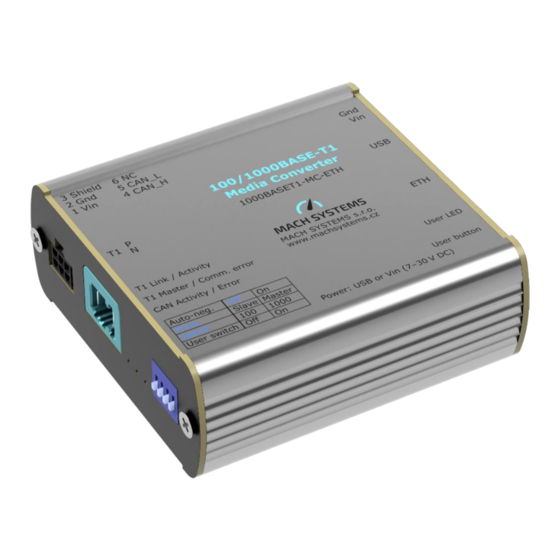

2 Introduction The 100/1000BASE-T1 Media Converter realizes a full-duplex physical-layer conversion between 1000BASE-T1 and 1000BASE-T (Gigabit Ethernet), or 100BASE-T1 and 100BASE-TX (Fast Ethernet) networks, and features TE MATEnet and RJ-45 connectors. Communication speed and master/slave settings can be auto-negotiated with a link partner or set manually by the user. A USB port (VCP) can be used to read device status and port diagnostic. -
Page 5: Features
100/1000BASE-T1 Media Converter – User Manual 3 Features • Media conversion 1000BASE-T1 to 1000BASE-T1 or 100BASE-T1 to 100BASE-TX • Configuration: o Speed: 100 / 1000 / Auto-negotiation o Mode: Master / Slave / Auto-negotiation o Frame generator: On / Off o Link mode: IEEE / Legacy •... -
Page 6: Technical Specification
100/1000BASE-T1 Media Converter – User Manual 4 Technical Specification Communication channels Automotive Ethernet 1000BASE-T1 (IEEE 802.3bp) or 100BASE-T1 (IEEE 802.3bw) Ethernet 1000BASE-T (IEEE 802.3ab – Gigabit Ethernet) or 100BASE-TX (IEEE 802.3u – Fast Ethernet) CAN-HS channel with CAN FD support (ISO 11898-1:2015;... -
Page 7: Device Description
6-pin Molex Micro-Fit connector. The external power range is 7 - 30 V DC. All grounds are connected together. Figure 4 Power options Figure 5 depicts the internal power block. When the external power is connected, there is no power drawn from USB. MACH SYSTEMS s.r.o. Page 7 of 18 www.machsystems.cz info@machsystems.cz... -
Page 8: Connector Pin Assignment
Name Description Power input positive (7 – 30 V DC) Power input negative Shield (connected to the conductive enclosure) CAN_H Front view CAN_L Table 3 Molex Micro-Fit connector - pin assignment MACH SYSTEMS s.r.o. Page 8 of 18 www.machsystems.cz info@machsystems.cz... -
Page 9: Te 2-Pin
• Legacy mode (default): On: Legacy mode enabled Off: Legacy mode disabled (IEEE Mode) • Packet generator: On: Packet generator enabled Off: Packet generator disabled Table 5 Switches MACH SYSTEMS s.r.o. Page 9 of 18 www.machsystems.cz info@machsystems.cz... -
Page 10: Leds
The 100/1000BASE-T1 Media Converter contains 7 status LEDs in total. 5.5.1 Front Panel 3 LEDs are on the front panel. LED Name Note T1 Link / Activity Green on: 100BASE-T1 link Green blinking: 100BASE-T1 activity Orange on: 1000BASE-T1 link Orange blinking: 1000BASE-T1 activity Off: no link T1 Master / On: T1 PHY is configured as Master Comm. -
Page 11: User Button
COM port (see 6.5). 5.9 Galvanic Isolation The device does not have any galvanic isolation. All ground signals are connected. The user has to make sure there are no ground loops in his setup. MACH SYSTEMS s.r.o. Page 11 of 18 www.machsystems.cz info@machsystems.cz... -
Page 12: Usage
6.2 Physical-Layer Conversion The media converter realizes a full-duplex physical-layer conversion between 1000BASE-T1 and 1000BASE-T (Gigabit Ethernet), or 100BASE-T1 and 100BASE-TX (Fast Ethernet) networks. The T1 communication speed and Master/Slave settings can be auto-negotiated with a link partner, set manually by the user, or programmatically over USB or CAN(/FD). -
Page 13: Cable Harnesses
MATEnet connectors are wired 1:1. Figure 9 TE MATEnet cable harness 6.6.2 Molex Micro-Fit This is a Molex Micro-Fit 6-pin to an open-end wire harness. The wires are 1 meter long, each 0.65 (22 AWG). MACH SYSTEMS s.r.o. Page 13 of 18 www.machsystems.cz info@machsystems.cz... -
Page 14: Table 4 Molex Micro-Fit Cable Harness Colours
The following table shows the wire colours: Pin Number Colour Note Twisted together Black Green/Yellow White Twisted together Green Blue Table 8 Molex Micro-Fit cable harness colours Figure 11 Molex Micro-Fit cable harness details MACH SYSTEMS s.r.o. Page 14 of 18 www.machsystems.cz info@machsystems.cz... -
Page 15: Firmware Update
4. Connect a USB cable (this also powers the device) to the PC 5. In the STM32CubeProgrammer: a. Click on the refresh arrows button to see available ports b. Select the interface (USB) c. Select the correct port MACH SYSTEMS s.r.o. Page 15 of 18 www.machsystems.cz info@machsystems.cz... - Page 16 „Download“ button. A .hex file can be used also but the Address of 0x8000000 has to be chosen manually. If you want to exit the bootloader, you must restart the device. MACH SYSTEMS s.r.o. Page 16 of 18 www.machsystems.cz info@machsystems.cz...
-
Page 17: Legal Information
CORRECTION OF DEFECTS, AND MACH SYSTEMS s.r.o. HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE MACH SYSTEMS s.r.o. DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 18: References
6-pin Molex Micro-Fit to open end; length 1 m DIN-BRACKET-UNI Universal holder for mounting any enclosure on a DIN rail Table 9 Product Numbers 10 Contact MACH SYSTEMS s.r.o. www.machsystems.cz info@machsystems.cz Czech Republic Company registration: 29413893 EU VAT number: CZ29413893 MACH SYSTEMS s.r.o.
