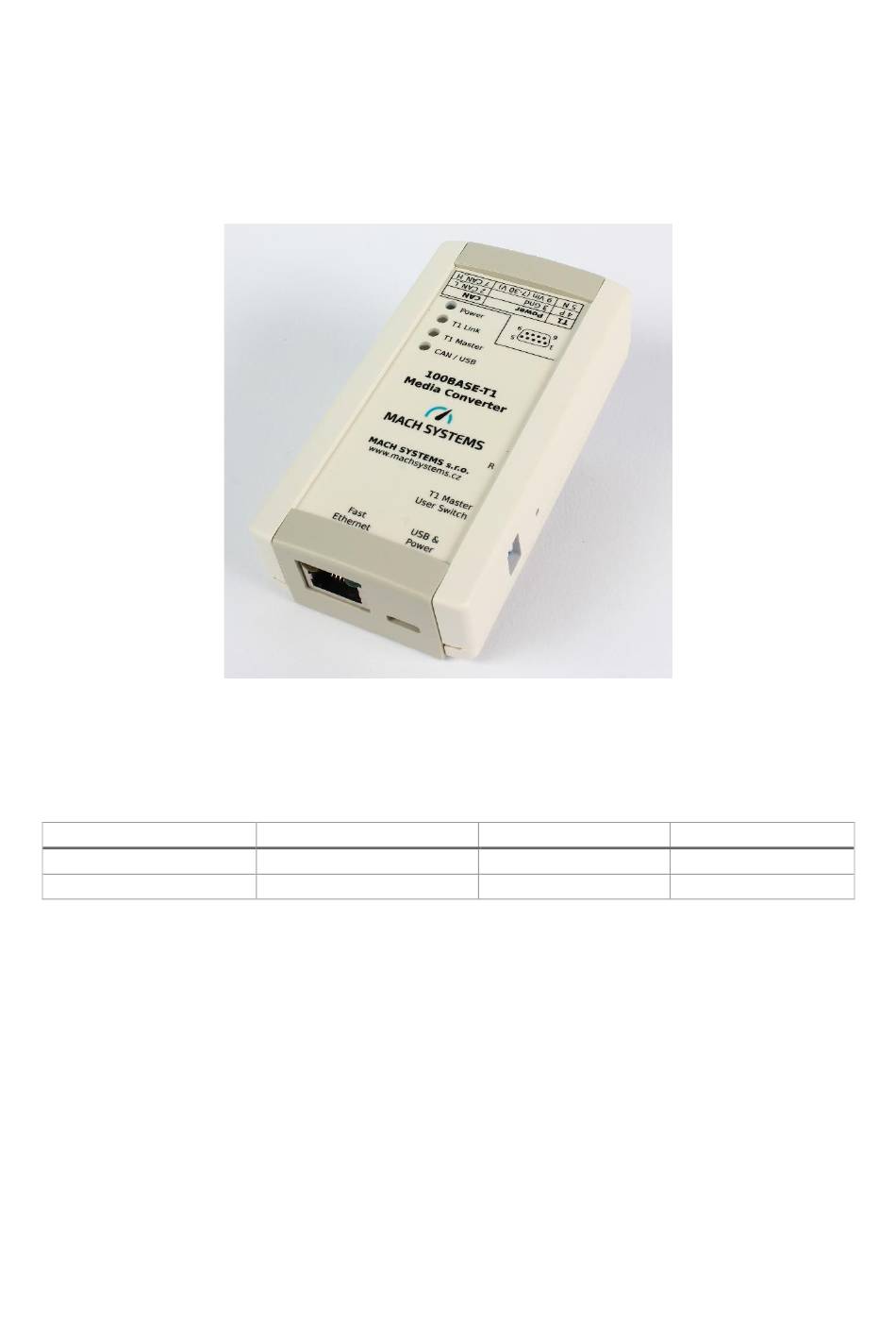

- Page 1 100BASE-T1 Media Converter User Manual CHANGES Date Description Created By Review By 9.11.2020 Initial Release...
-
Page 2: Table Of Contents
100BASE-T1 Media Converter - User Manual Contents About ............................... 4 Introduction ............................. 4 Features ........................... 5 Technical Specification ........................5 Device Description ........................... 6 Overview ..........................6 Power ............................6 Media Conversion........................6 Pinout ............................7 4.4.1 CON 1 ..........................7 4.4.2... - Page 3 Table 2 Connector 1 Pin Assignment ....................... 7 Table 3 DIP Switch Pin Assignment ......................7 Table 4 LED Function Description ......................8 Table 5 Ordering Codes for 100BASE-T1 Media Converter ..............15 List of Figures Figure 1 100BASE-T1 Media Converter ....................4 Figure 2 Block Diagram ..........................
-
Page 4: About

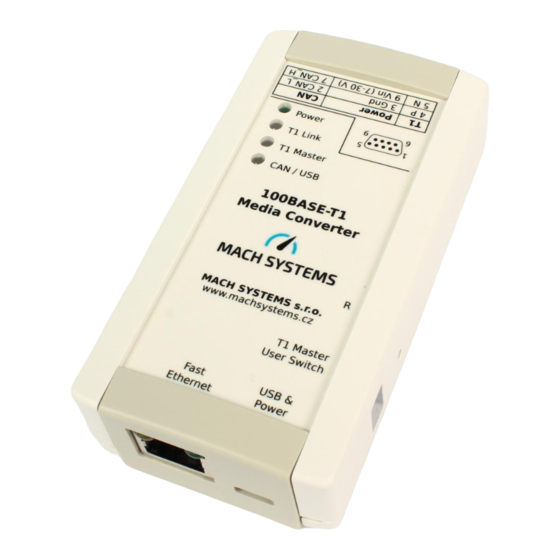

Figure 1 100BASE-T1 Media Converter 2 Introduction The Media Converter realizes a bi-directional network connection between 100BASE-T1 (BroadR- Reach) and 100BASE-TX (Fast Ethernet) physical layer. The converter easily connects devices with a standard OPEN Alliance BroadR-Reach (OABR) port, such as automotive cameras or ECUs, to a standard computer network. -
Page 5: Features
T1 port, carry out a BroadR-Reach media test to diagnose cable errors, fine-tune the PHYs parameters, and generally to read and write the registers. 2.1 Features • Physical Layer conversion between 100BASE-T1 and 100BASE-TX • Master / Slave configuration for OABR •... -
Page 6: Device Description
Figure 4 Power Options 4.3 Media Conversion Connect 100BASE-T1 network over CON1 (DSUB9M) pins 4 (BP - Positive) and 5 (BM - Negative). Connect 100BASE-TX (Fast Ethernet) network over CON2 (RJ-45). Do not forget to select the select T1 Master/Slave configuration depending on your use case (Chapter 4.4.2), and to power the device (Chapter 4.2). -
Page 7: Pinout
Both RJ-45 and Micro-USB connectors use the standard pinouts. From left on RJ-45 port is yellow and green LED. RJ-45 connector is galvanically isolated (Chapter 4.8). USB can be used for diagnostic purposes (Chapter 5.2). The 100BASE-T1 Media Converter forwards Ethernet communication packets between 100BASE-T1 and 100BASE-TX ports only. -
Page 8: Led Status Information
Table 4 LED Function Description 4.6 CAN Bus Termination Status information of the 100BASE-T1 Media Converter can be obtained over USB or CAN bus. In case of a CAN bus connection, there is no internal termination resistor inside the device. Therefore, a proper termination of the CAN bus is needed. -
Page 9: Usage
When connect the media converter to PC over USB, it will be enumerated as a virtual COM port. Windows 10 operating system and newer is supported. The 100BASE-T1 Media Converter Utility PC application allows to read the status of the device. The utility can be downloaded from www.machsystems.cz/en/support... -
Page 10: Figure 8 Media Converter Utility
100BASE-T1 Media Converter - User Manual Figure 8 Media Converter Utility (1) COM port number of the device (2) Device’s serial number (3) T1 signal quality (4) current T1 mode (5) T1 link status (6), (7), (8) T1 link errors... -
Page 11: Firmware Update
100BASE-T1 Media Converter - User Manual 6 Firmware Update For updating the device’s firmware, you will need a .MSF firmware file, MsFirmwareUpdater application, a Micro-USB cable, and a PC. 6.1 Preparations The device’s firmware can be updated over USB. To do so, connect your Media Converter to the PC over USB. -
Page 12: Figure 10 Msfirmwareupdater - Firmware Update Succedded
100BASE-T1 Media Converter - User Manual Figure 11 MsFirmwareUpdater - Device Connected Figure 10 MsFirmwareUpdater - Firmware Update Succedded MACH SYSTEMS s.r.o. Page 12 of 15 www.machsystems.cz info@machsystems.cz... -
Page 13: Legal Information
CORRECTION OF DEFECTS, AND MACH SYSTEMS s.r.o. HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE MACH SYSTEMS s.r.o. DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 14: Declaration Of Conformity
100BASE-T1 Media Converter - User Manual 7.3 Declaration of Conformity MACH SYSTEMS s.r.o. Page 14 of 15 www.machsystems.cz info@machsystems.cz... -
Page 15: Patents, Copyrights And Trademarks
100BASE-T1 Media Converter - User Manual 7.4 Patents, Copyrights and Trademarks All trademarks are the property of their respective owner. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Adobe, the Adobe logo, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
