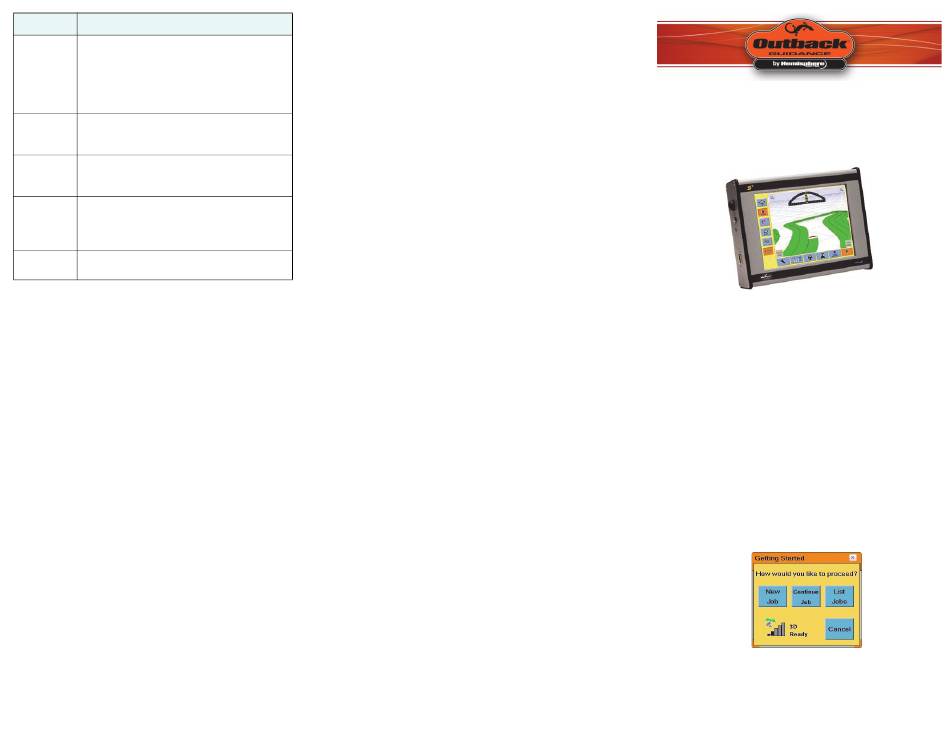

Outback S3 Quick Reference Manual

Buttons Description
Fore/Aft Set the fore or aft offset of the antenna from
Offset any implement; if the implement is in front
of the vehicle, enter the distance between
the implement and the antenna as a fore
offset; if the implement is behind the
vehicle, enter the distance as an aft offset.
Lightbar Reaction speed of the virtual lightbar
(manual guidance indicator sensitivity); set
to Low, Med (Medium) or High.
Headland Notifies you with an audible beep when the
Alert machine enters a previously worked area;
set to On or Off.
Lines Set the guidance lines (Off, AB, or Grid) that
display a regular pattern over an area by
which to guide; the distance between the
grid lines is based on the Grid Spacing field.
Grid Set the distance between the grid lines on
Spacing the Map screen.
Working with Jobs
Loading a Job
1. On the Jobs screen touch the Jobs button.
2. In the Manage Jobs window, select the job you want
to load.
3. Touch the Load button. The selected job (and its data)
is loaded as the current job.
Beginning a New Job
• On the Jobs screen touch the New button. The
number in the Job Name field and on the bottom of
the Job tab change.
Continuing a Job
• On the Jobs screen touch the Continue button.
The most recently closed job (and all its data) is
activated.
Deleting a Job
1. On the Jobs screen touch the Jobs button.
2. In the Manage Jobs window, select the job you want
to delete.
3. Touch the Delete button. The selected job (and its
data) is deleted from the S3.
Deleting All Jobs
1. On the Jobs screen touch the Jobs button.
2. In the Manage Jobs window, touch the Delete All
button. A confirmation message appears.
3. Touch Yes to continue. All jobs (and their data) are
deleted from the S3.
Exporting Data to the USB Drive
1. Insert the USB drive into the USB port on the side of
the S3.
2. On the S3 touch the Job tab.
3. Touch the Export button. The Export Data window
appears.
4. Select the job data (which includes associated
templates) to export and then touch the Export
button or touch the Export All button to export all
job data. A confirmation message appears.
5. Touch Yes to continue. The data is exported.
Importing Job Data from the USB Drive
1. Insert the USB drive into the USB port on the side of
the S3.
2. On the S3 touch the Job tab.
3. Touch the Import button. The Import Data window
appears.
Note: Only job data contained in the S3jobs folder on
the USB drive will appear in the Import Data window.
4. Select the data files to import and then touch the
Import button or touch the Import All button to
import all data files. A confirmation message appears.
5. Touch Yes to continue. The job is imported.
Closing a Job
1. On the Jobs screen touch the Close button. A
confirmation message appears.
2. Touch the OK button. The job closes.
Clearing Job Notes
You have the option of clearing the contents of all job
annotation fields (Farm ID, Field ID, Operator ID, Machine
ID, Crop, Operation, Temperature, Humidity, Wind
Speed, and Wind Direction).
• On the Jobs screen touch the Clear Notes button.
Job notes are cleared from the fields shown at
right.
Outback S3™
Quick Reference Guide
Part Number: 875-0197-000 Rev B1
Starting the S3
Upon startup the S3 starts acquiring a DGPS signal (as
long as the antenna has a clear view of the sky)—this
may take several minutes, during which the vehicle can
be moving or you can perform certain functions.
Upon achieving a GPS signal, the satellite icon on the
GPS tab turns from red to orange. Upon acquiring a
DGPS signal, the satellite icon turns green and the GPS
tab displays "3D" . The S3 must have DGPS present to
begin a job and provide guidance.
1. Power up the S3. If you have any additional
components connected to the S3 power them on as
well. Upon powerup the S3 completes a self test, the
LED illuminates green, and a Warning appears.
2. Touch Accept at the warning. The Getting Started
window appears.
3. Touch any of the Job buttons to work with a job or
touch Cancel to close the Getting Started window
without selecting a Job option.
