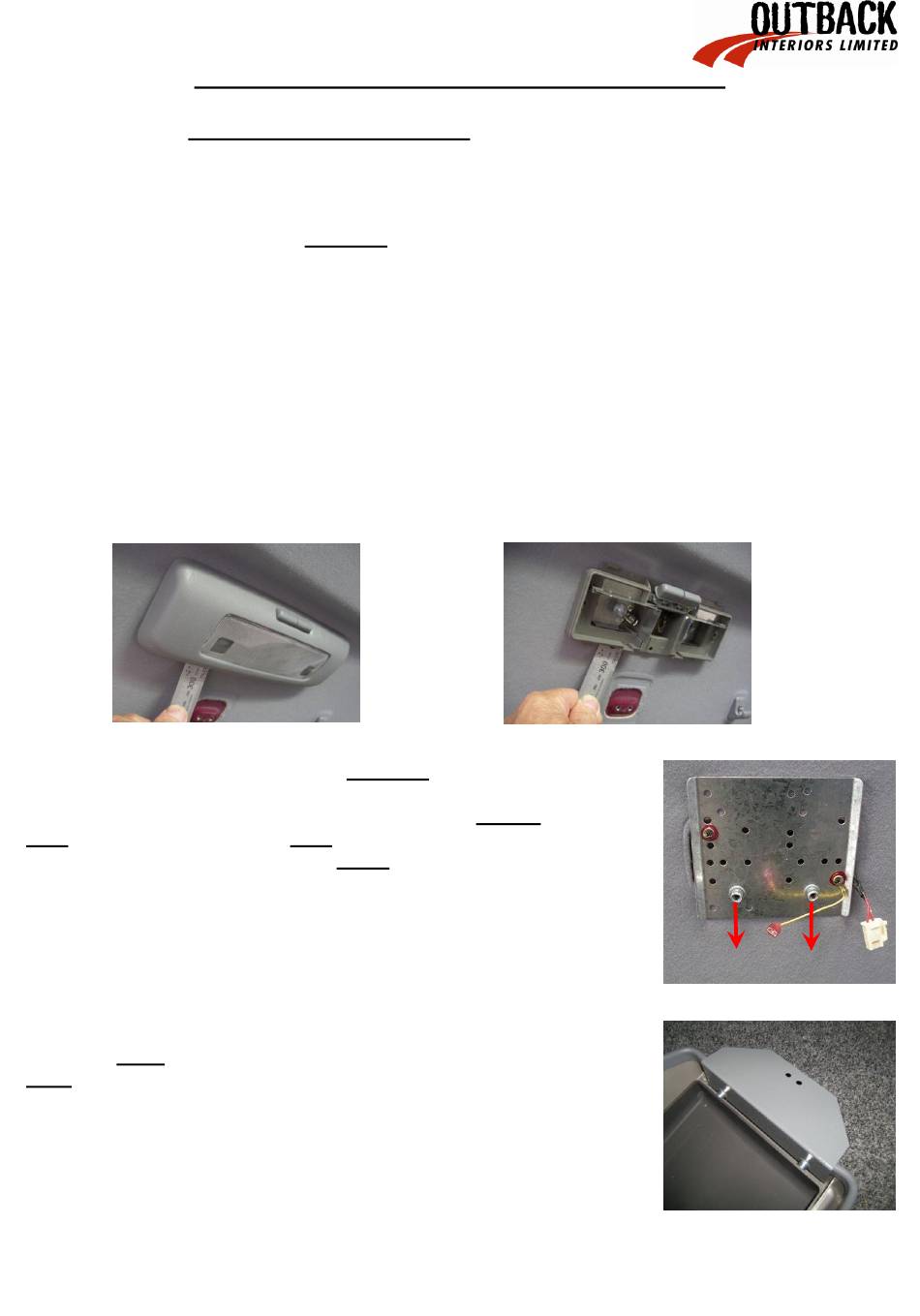

INSTALLATION OF 'OUTBACK' ROOF CONSOLE

PRADO 90 series 7/96 – 8/02

Failure to connect coloured wiring correctly and tape up all connections as described in following

instructions will result in an electrical short and void console warranty.

For this installation you will need a hand held Phillips screwdriver, steel ruler and insulation tape.

VEHICLE PREPARATION:

Swing Sun Visors around to side and lay flat to roof for ease of installation.

Switch interior light to off position, remove from roof, disconnect wiring and put aside, retain screws for fitting.

Remove the rear view mirror; use steel ruler to lever plastic cover off sideways and undo the two screws

beneath.

Remove the map lights; slide steel ruler (lever tool) in from the front, between light housing and roof lining; at

a position 60mm in from each end and lever downwards to remove cover and repeat to remove light housing.

No damage can be caused as the lights are simply held in with spring loaded clips. Unplug wires, tuck wires

and plug back into void in roof. Put lights aside for reinstallation upon sale of vehicle.

Rear Fixing Plate Installation: Using a hand held Phillips screwdriver

fasten Rear Fixing Plate to the two vacant interior light screw holes.

Use original interior light screws and fasten plate through marked

holes ensuring captive nuts are to front of vehicle and interior light

plug protrudes out side of plate. Fasten yellow earth wire supplied

to one of these screws.

Front Mounting Bracket Installation: Fasten Front Mounting Bracket

supplied to inside front of Roof Console using two (2) 6mm x 16mm

black Phillips round head bolts supplied.

Part No. RCPR96

CAPTIVE NUTS TO FRONT OF VEHICLE

RCPR96

Table of Contents

Do you have a question about the RCPR96 and is the answer not in the manual?

Page 1 INSTALLATION OF ‘OUTBACK’ ROOF CONSOLE PRADO 90 series 7/96 – 8/02 Part No. RCPR96 Failure to connect coloured wiring correctly and tape up all connections as described in following instructions will result in an electrical short and void console warranty.
Page 2 There is an on/off switch located in front of front lights, when off it acts as a kill switch and no lights will work; when on lights work independently as map/interior lights when doors are shut and timer switches off; when doors are opened lights will work as door/interior lights. Fit Kit: RCPR96 One (1) Front Mounting Bracket One (1) Rear Fixing Plate...
Page 3 Install in a position that suits best, depending on vehicle and Radio model. Ensure microphone or microphone cable and holder does not foul on sun visor when pulled down. Microphone clip on slight angle Left hand cable outlet radios Microphone clip on acute angle RCPR96...
