Quick Start Guide

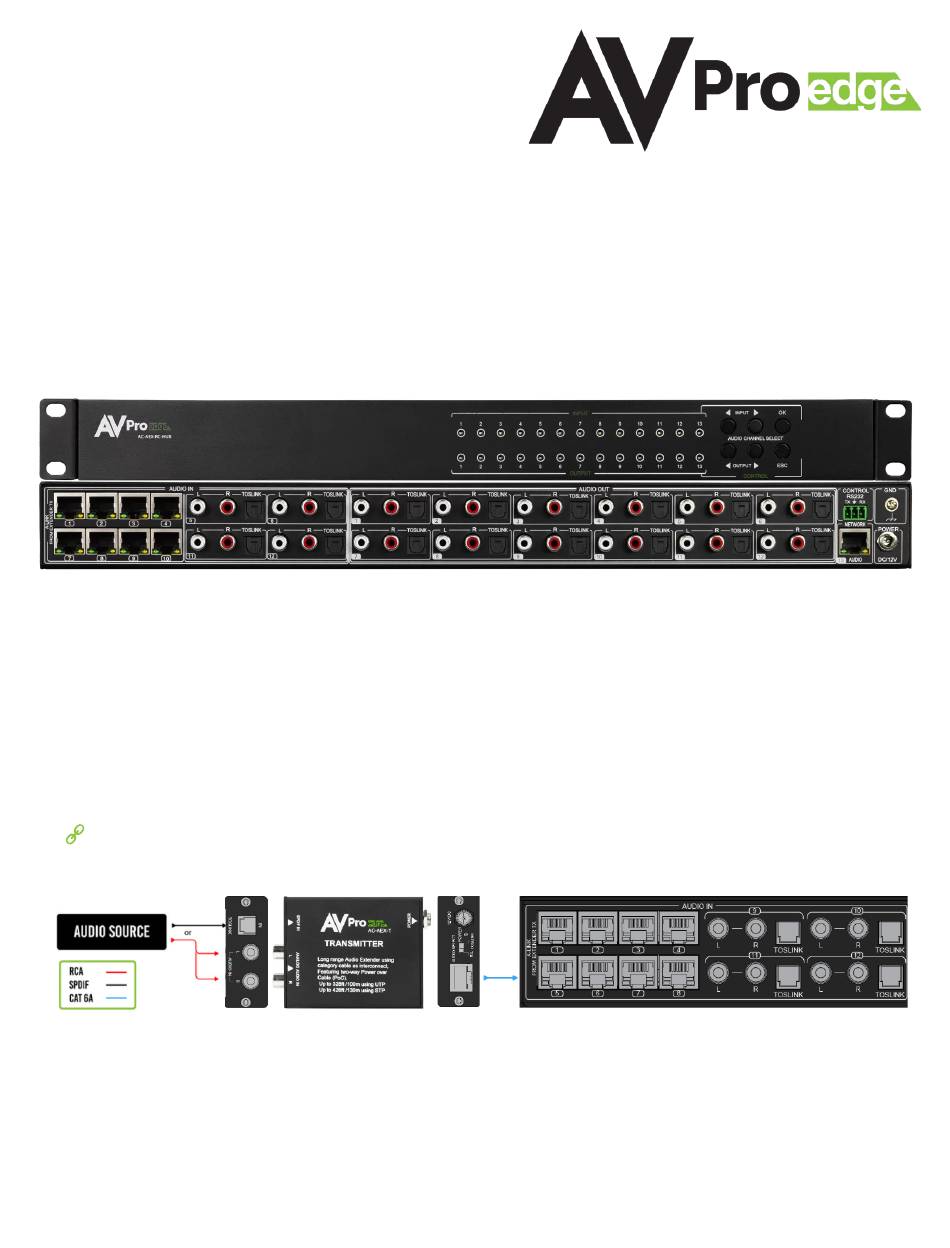

AC-AEX-RC-HUB
Audio Centralizer with Stereo Matrixing

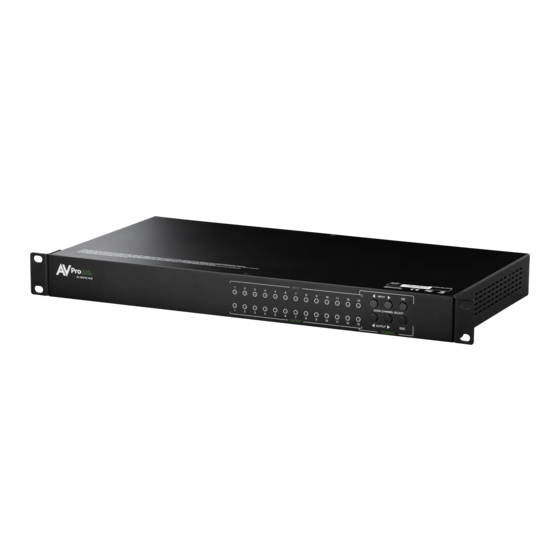

The AC-AEX-RC-HUB is a 12 I/O 1U rack-mountable audio recall centralizer with stereo matrix switching.
Designed to receive extended audio over Category Cable, TOSLINK digital audio, and line-level analog stereo
signals from up to 12 source devices, the AC-AEX-RC-HUB provides remote audio source signals to a centrally
located audio distribution system, such as an audio matrix or multi-zone amplifier, with a maximum distance of
up to 130 meters (426 feet).
AC-AEX-T
(sold separately)
The AVPro Edge AC-AEX-T is a digital/analog audio transmitter that extends stereo signals over a Category
cable via AVPro Edge's exclusive AEX technology. The AC-AEX-T is powered remotely via PoC (Power over
Cable) when connected to the AC-AEX-RC-HUB or AC-AEX-R and is ideal for sending audio from a source
device (such as a display, record player, or local auxiliary input) located in a separate zone back to a centrally
located audio distribution system.
NOTE:
Each A-LINK port on the AC-AEX-RC-HUB must be paired with an AC-AEX-T audio transmitter for complete operation.
AC-AEX-T
AC-AEX-RC-HUB
Initial Setup
Make the physical connections to the input and output devices using the following steps below. For initial
setup, make all the audio input and output connections. Next, connect the AC-AEX-RC-HUB to a LAN (Local
Area Network) via the NETWORK RJ45 port (next to the power connector). Using a PC on the same network,
Access The Web Ui and check for available firmware updates to the unit.
