EtherHaul 600T™
Quick Setup Guide
1 Safety Notes

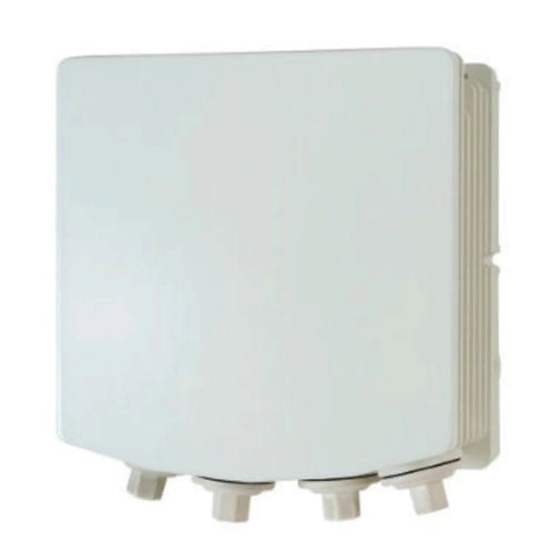

This Quick Guide is intended as a handy reference for setting up the EtherHaul 600T™ ODU with integrated
antenna. This guide does not replace the full manual; please refer to the "EtherHaul Install and User Manual" for
full installation and setup details.
The Installation and maintenance of this link should be performed by service personnel who are properly trained
and certified to carry out such activities. Make sure to disconnect all power cables before service!
ODU must be grounded using min 16AWG cable or according to local electrical code.
For DC (37 ÷ 57 VDC) connection use a 2-wire cable (14-18 AWG) with 2 Amp circuit breaker on the live voltage
(+ or -). The other poly should be grounded.
2

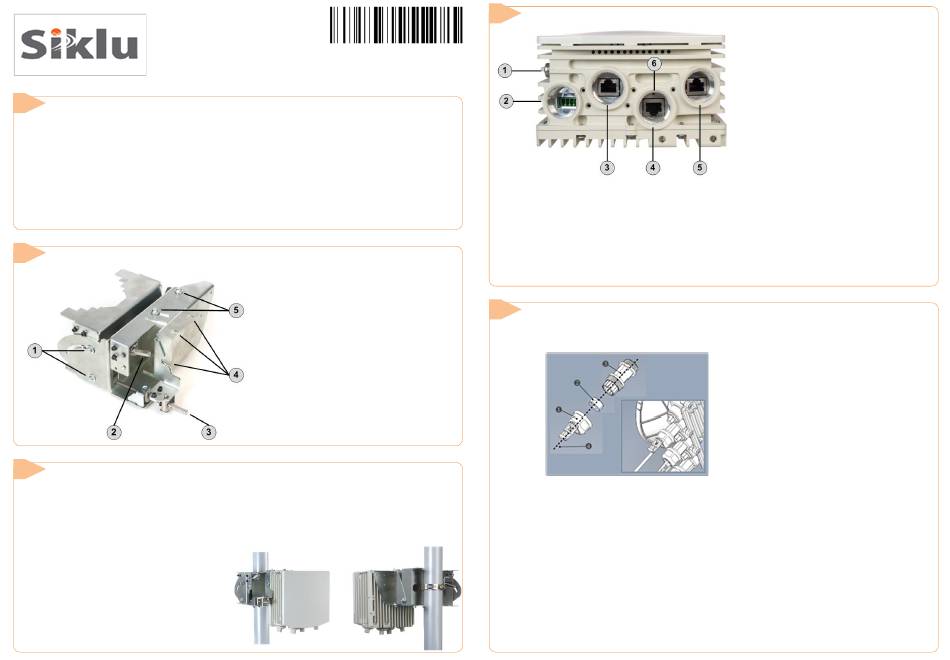

Mounting Bracket
3 Installing the ODU
1. Attach the ODU to the Mounting Bracket by sliding it to the 3 Mounting Hooks and lock the bolts.
2. Mount the ODU on a fixed reinforced steel mounting pole with 2-4 inches diameter.
3. Position the Azimuth and Elevation Adjustment Lock Bolts at 0° and unlock them to allow free movement during
alignment.
4. Use worm-clamp (steel band) to secure the bracket to the mounting pole. Use worm-clamp at size that will
allow firm grip to the pole (worm-clamp not provided).
5. Note that ODUs are shipped in Vertical polarization.
6. In case ODU has to be installed tilted upwards more
than 10°, the bracket should be installed up-side-down.
The 3 Lock bolts on the ODU should be relocated to the
opposite free slots so the ODU will still be installed with
the connectors facing downwards.
P/N: IDOC007, Rev: B.
Description: EH-QSINST-07 issue 2
1. Elevation Lock Bolts (1 additional bolt at
opposite side of the mount)
2. Elevation Fine Adjustment Screw (+10°÷-60°)
3. Azimuth Fine Adjustment Screw (±10°)
4. ODU Mounting Hooks
5. Azimuth Lock Bolts (2 additional bolts at
opposite side of the mount)
4 Connecting the Cables
1. All cabling connected to the ODU should be outdoor-grade, with UV protection.
2. Shielded outdoor Cat5e cables terminated with metallic RJ45 connectors must be used.
3. Connect the ground cable to the ODU GND point.
4. For DC feed (37 ÷ 57 VDC), connect only the (+) and (-) wires to the DC terminal provided with the ODU.
5
Connectors Weatherproof
Use the provided protective All-Weather Shells as described in the following diagram (fits cables from 3.5mm to
9.0mm diameter).
1. Thread the cable connector through the Cable Inlet Portion (1) of the shell, through the Rubber Gasket (2) and
through the Connector Outlet Portion (3).
2. Choose Rubber Gasket that best fits the cable diameter (note the Rubber Gasket is spliced and can be assembled
on cables with connectors).
3. Connect the cable connector to the ODU interface.
4. Screw the Connector Outlet Portion () to the ODU firmly by hand (do not use tools).
5. Insert the Rubber Gasket snugly into the Connector Outlet Portion () of the shell.
6. Screw the Cable Inlet Portion () to the Connector Outlet Portion () firmly by hand (do not use tools).
7. When removing All-Weather Shell, make sure to unscrew the Cable Inlet Portion () first, making sure the
Connector Outlet Portion () does not move and only then remove the Connector Outlet Portion () from the ODU
port.
1. Ground Point (GND)
2. Power Connector Interface (PWR)
3. Eth Port #1
4. Eth Port #2
5. Eth Port #3
6. Reset Button (press for more than 6
seconds to restore factory defaults)
1. Cable Inlet Portion
2. Rubber Gasket Insert
3. Connector Outlet Portion
4. Cable
