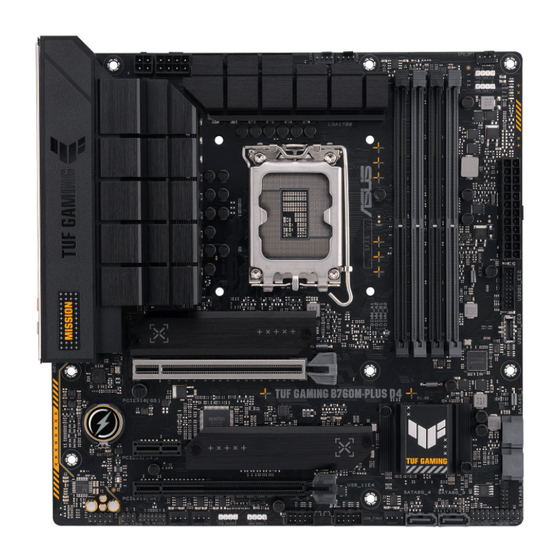

TUF GAMING
B760M-PLUS D4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUF GAMING B760M-PLUS D4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Asus TUF GAMING B760M-PLUS D4

  • Page 1 TUF GAMING B760M-PLUS D4...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
  • Page 3: Table Of Contents

    Contents Safety information ...................... iv About this guide ......................v Package contents ....................... vi TUF GAMING B760M-PLUS D4 specifications summary ........vi Chapter 1: Product Introduction Before you proceed ..................1-1 Motherboard overview ................. 1-2 Central Processing Unit (CPU) ..............1-9 System memory ..................
  • Page 4: Safety Information

    Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
  • Page 5: About This Guide

    Refer to the following sources for additional information and for product and software updates. ASUS website The ASUS website (www.asus.com) provides updated information on ASUS hardware and software products. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.
  • Page 6: Package Contents

    OptiMem II * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus. com/support/. 1 x DisplayPort**...
  • Page 7 TUF GAMING B760M-PLUS D4 specifications summary Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel & 12 Gen Processors ® M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Storage Intel B760 Chipset ®...
  • Page 8 TUF GAMING B760M-PLUS D4 specifications summary Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C ® 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports...
  • Page 9 Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) • Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications. • For more information on downloading and installing drivers and utilities for your...
  • Page 11: Chapter 1: Product Introduction

    • The pin definitions in this chapter are for reference only. The pin names depend on the location of the header/jumper/connector. • For more information on installing your motherboard, please scan the QR code below: TUF GAMING B760M-PLUS D4...
  • Page 12: Motherboard Overview

    Motherboard overview 24.4cm(9.6in) CPU_OPT AIO_PUMP CPU_FAN ATX_12V_2 ATX_12V_1 ADD GEN 2_2 HDMI_DP DIGI+ ADD GEN 2_3 DRAM BOOT U2_56 U32G2_E56 U32G2X2_C1 U32G1_9 Place this side towards the rear of the LAN_U32G2_34 chassis LGA1700 AUDIO 2242 2260 PCIE SATA 2280 4.0 X4 M.2_1(SOCKET3) 1074 PCIEX16(G5)
  • Page 13 USB 3.2 Gen 1 ports. The USB 3.2 Gen 1 IntA_P2_SSRX- IntA_P1_SSRX+ IntA_P2_SSRX+ header provides data transfer speeds of up to 5 Gb/s. IntA_P1_SSTX- IntA_P2_SSTX- IntA_P1_SSTX+ IntA_P2_SSTX+ IntA_P1_D- IntA_P2_D- IntA_P1_D+ The USB 3.2 Gen 1 module is purchased separately. IntA_P2_D+ TUF GAMING B760M-PLUS D4...
  • Page 14 10. USB 2.0 headers The USB 2.0 headers allow you to connect USB modules for additional USB 2.0 ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s. PIN 1 PIN 1 DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard! The USB 2.0 module is purchased separately.
  • Page 15 (depending on the operating system settings). • Reset button header (RESET) The 2-pin header allows you to connect the chassis-mounted reset button. Press the reset button to reboot the system. TUF GAMING B760M-PLUS D4...
  • Page 16 • Chassis intrusion header (CHASSIS) The 2-pin header allows you to connect the chassis-mounted intrusion detection sensor or switch. The chassis intrusion sensor or switch sends a high-level signal to the header when a chassis component is removed or replaced, the signal is then generated as a chassis intrusion event.
  • Page 17 3.2 (USB 3.2) ports are for USB 3.2 Gen 2 devices. ). This Universal Serial Bus 3.2 USB 3.2 Gen 2x2 (up to 20Gbps) port (USB Type-C ® (USB 3.2) port is for USB 3.2 Gen 2x2 Type-C devices. ® TUF GAMING B760M-PLUS D4...
  • Page 18 Optical S/PDIF out port. This port allows you to connect your PC to amplified speakers, headphones, or Sony/Phillips Digital Interconnect Format (S/PDIF) compliant devices. Microphone port (pink). This port connects a microphone. Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 5.1-channel, and 7.1-channel configurations, the function of this port becomes Front Speaker Out.
  • Page 19: Central Processing Unit (Cpu)

    CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU...
  • Page 20 Ensure to remove the CPU Socket lever protector on the lever latch before locking the lever latch under the retention tab. Failure to do so may cause damages to your system when installing the cooling system. 1-10 Chapter 1: Product Introduction...
  • Page 21: System Memory

    (D/C) from the same vendor. Check with the retailer to get the correct memory modules. • Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Recommended memory configurations...
  • Page 22 Installing a DIMM To remove a DIMM 1-12 Chapter 1: Product Introduction...
  • Page 23: Installation

    For 2242, 2260 length Install the bundled screw stand to the M.2 length screw hole you wish to install your M.2 to. Install your M.2 to the M.2 slot. Secure your M.2 using the bundled screw stand’s screw. TUF GAMING B760M-PLUS D4 1-13...
  • Page 24 • This M.2 rubber pad is optional for when installing a single sided M.2 storage device. Ensure to install the bundled M.2 rubber pad before installing your single sided M.2 storage device. • DO NOT install the bundled M.2 rubber pads when installing a double-sided M.2 storage device.
  • Page 25: Chapter 2: Bios And Raid Support

    BIOS and RAID Support Knowing BIOS The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard- only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system.
  • Page 26: Bios Setup Program

    BIOS Setup program Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief onscreen help to guide you in using the BIOS Setup program. Entering BIOS at startup To enter BIOS Setup at startup, press <Delete> or <F2> during the Power-On Self Test (POST).
  • Page 27: Asus Ez Flash 3

    ASUS EZ Flash 3 The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS-based utility. Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey <F5>.
  • Page 28: Asus Crashfree Bios 3

    ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using a USB flash drive that contains the BIOS file.
  • Page 29: Raid Configurations

    For more information on configuring your RAID sets, please refer to the RAID Configuration Guide which you can find at https://www.asus.com/support, or by scanning the QR code. RAID definitions RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks.
  • Page 30 Chapter 2: BIOS and RAID Support...
  • Page 31: Appendix

    Appendix Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 32 Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 33 ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT. Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam.
  • Page 34 France sorting and recycling information À DÉPOSER À DÉPOSER EN MAGASIN EN DÉCHÈTERIE Cet appareil et ses accessoires se recyclent Points de collecte sur www.quefairedemesdechets.fr Privilégiez la répara�on ou le don de votre appareil ! Safety Precautions Accessories that came with this product have been designed and verified for the use in connection with this product.
  • Page 35 Français AsusTek Computer Inc. déclare par la présente que cet appareil est conforme aux critères essentiels et autres clauses pertinentes des directives concernées. La déclaration de conformité de l’UE peut être téléchargée à partir du site Internet suivant : www.asus.com/support.
  • Page 36: Warranty

    • ASUS offers a voluntary manufacturer’s Commercial Guarantee. • ASUS dragovoljno nudi komercijalno proizvođačko jamstvo. • ASUS reserves the right to interpret the provisions of the ASUS • ASUS zadržava prava na tumačenje odredbi ASUS komercijalnog Commercial Guarantee. jamstva. •...
  • Page 37 • ASUS tilbyr som produsent en frivillig kommersiell garanti. • Bảo hành thương mại này của ASUS được cung cấp độc lập và ngoài • ASUS forbeholder seg retten til å tolke bestemmelsene i ASUS sin Bảo đảm pháp lý theo luật định và không có cách nào ảnh hưởng đến kommersielle garanti.
  • Page 38: Asus Contact Information

    Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112 ASUS COMPUTER INTERNATIONAL (America) Address: 48720 Kato Rd., Fremont, CA 94538, USA ASUS COMPUTER GmbH (Germany and Austria) Address: Harkortstrasse 21-23, 40880 Ratingen, Germany ASUSTeK (UK) LIMITED Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL,...
