Ryobi RAC3010 Manual

WARNING
To reduce the risk of injury, user must read and
understand the operator's manual for their blower/
vacuum and this instruction sheet. Always wear eye
protection with side shields along with the hearing
protection. Ensure compatibility and fit before using
this accessory. Do not use this accessory if a part is
damaged or missing.
The product is intended to vacuum debris and deposit it
into the collection bag. It is not designed to suck or vacuum
water or other liquid.
Do not use the product in any way other than those stated.
The product is compatible with the following RYOBI
models: RBL254ON / RBV254ON / RBV254 / RBL26GN
/ RBV26GN
SPECIFIC SAFETY RULES
■ Do not allow children or untrained individuals to use the
product.
■ Wear full eye and hearing protection while operating
the product. The product is extremely noisy, and
permanent hearing injury may result if precautions
to limit exposure, reduce noise, and wear hearing
protection are not strictly adhered to.
■ Wear heavy, long pants, long sleeves, boots, and
gloves. Do not wear loose fitting clothing, short pants,
sandals, or go barefoot. Do not wear jewelry of any
kind.
■ Beware of thrown objects; keep all bystanders, children,
and pets at least 15 m away from the work area.
■ Save these instructions. Refer to them frequently and
use them to instruct others who may use this product.
If you loan someone this product, loan them these
instructions also to prevent misuse of the product and
possible injury.
INSTALLING THE VACUUM KIT (FOR RBL254ON / RBV-
254ON / RBV254)
See page 3 - 4
1. Push the curved vacuum bag adaptor through the
opening opposite the strap and secure the tie strap.
2. Push the bag adaptor onto the housing.Twist to lock
into place.
3. Secure the upper and lower vacuum tubes together by
aligning the raised locking tabs with the raised slots.
4. Tap tube assembly on ground until the screw holes
in lower tube are in the raised slot of the upper tube.
Secure with supplied screws.
5. Tighten screws on upper vacuum tube to secure to lock
ring.
6. Depress door tabs using a straight screwdriver and
open vacuum inlet door.

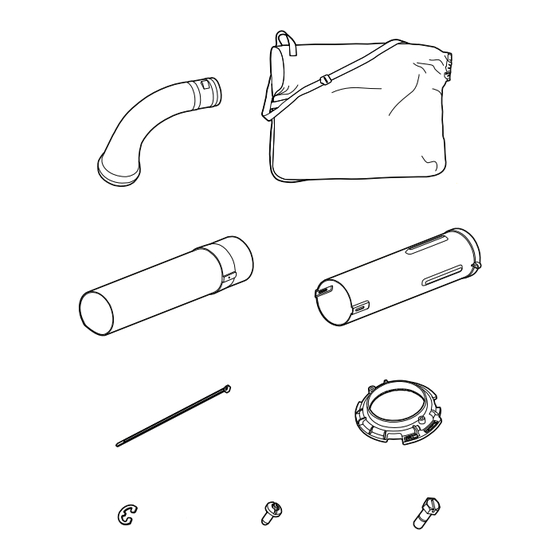

VACUUM ACCESSORY KIT
RAC3010
7. Align the slots on the lock ring with the tabs on main
housing.
8. Turn the lock ring clockwise to the locked position and
secure to the main housing.
REMOVING THE VACUUM KIT (FOR RBL254ON /
RBV254ON / RBV254)
See page 5 - 6
1. Remove the vacuum bag by using a flat head
screwdriver to lift the locking tab.
2. Rotate counterclockwise to unlock the adaptor and
remove.
3. Using a screwdriver, depress the tab on the lock ring
to unlock.
4. Turn the lock ring counterclockwise.
5. Remove the vacuum tube assembly from the main
housing.
6. Close the inlet cover door securely.
INSTALLING THE VACUUM KIT (FOR RBL26GN / RB-
V26GN)
See page 7 - 8
1. Push the curved vacuum bag adaptor through the
opening opposite the strap and secure the tie strap.
2. Push the bag adaptor onto the housing.Twist to lock
into place.
3. Secure the upper and lower vacuum tubes together by
aligning the raised locking tabs with the raised slots.
4. Tap tube assembly on ground until the screw holes
in lower tube are in the raised slot of the upper tube.
Secure with supplied screws.
5. Depress door tabs using a straight screwdriver and
open vacuum inlet door.
6. Align tabs on housing with tube assembly.
7. Tighten screws on upper vacuum tube to secure to
blower housing.
REMOVING THE VACUUM KIT (FOR RBL26GN /
RBV26GN)
See page 9 - 10
1. Remove the adaptor by using a flat head screwdriver to
lift the locking tab.
2. Rotate counterclockwise to unlock the adaptor and
remove.
3. Loosen screws of the upper vacuum tube by turning
counterclockwise.
4. Remove the vacuum tube assembly from the blower
housing.
5. Close the inlet cover door securely.
