Summary of Contents for Meopta Optika LR 8x50 HD

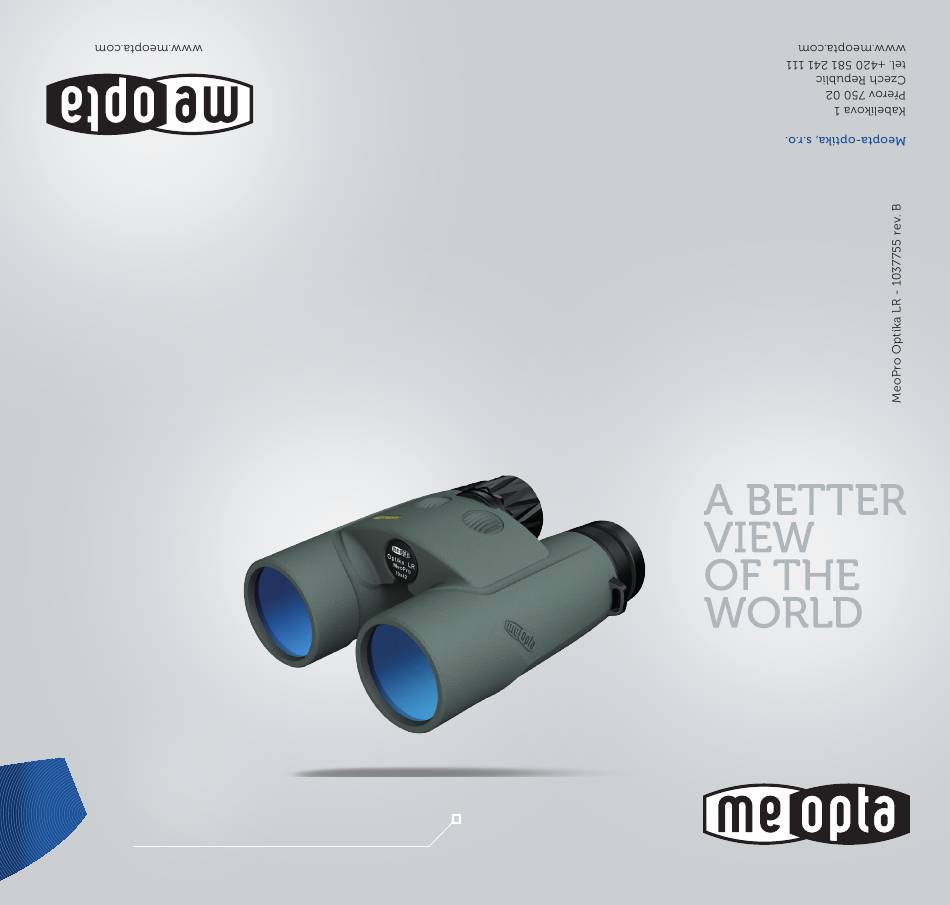

- Page 1 EUROPEAN MeoPro Optika LR 8x50 HD OPTICS since MeoPro Optika LR 10x42 HD 1933 www.meopta.com...
- Page 2 NIKDY SE NEDÍVEJTE NON GUARDARE MAI DALEKOHLEDEM PŘÍMO DIRETTAMENTE IL DO SLUNCE! SOLE ATTRAVERSO IL CANNOCCHIALE! NEVER LOOK DIRECTLY INTO THE SUN THROUGH ¡NO MIREN NUNCA THE DEVICE! DIRECTAMENTE AL SOL A TRAVES DEL PRISMATICO! SCHAUEN SIE NIEMALS MIT DEM FERNROHR NUNCA OLHE DIRETAMENTE DIREKT AUF DIE SONNE! PARA O SOL COM A MIRA...
- Page 3 MeoPro Optika LR 8x50 HD MeoPro Optika LR 10x42 HD...
- Page 4 Our binoculars have been designed and manufactured with the utmost care by leading experts at Meopta - optika, s.r.o. They are the culmination of our extensive experience in design and technology and 80 years of Meopta tradition. The binoculars are crafted from high-quality materials, and top-quality optical glass is used for all optical components.
- Page 5 MeoPro Optika LR Magnesium body Nitrogen-filled Magnesium alloy body The binoculars are sealed and filled with inert nitrogen gas, and protected from internal condensation build-up Ergonomic Telescopic eyecups Optimally balanced ergonomic design For comfortable viewing with or without eyeglasses Waterproof Brilliant image The binoculars are fully waterproof even when immersed in water and they are completely protected against humidity, rain...
- Page 6 Description of optical device MeoPro Optika LR binoculars have an integrated laser rangefinder. It sends pulses of infrared radiation that are invisible to the naked eye. The built-in computer calculates the distance based on the radiation reflected by the measured target. In addition to the distance measurement, they also have a built-in inclination indicator. The binoculars are crafted from high-quality materials, and top-quality optical glass is used for all optical components.
- Page 7 Image focusing Setting the interocular (interpupillary) distance Adjusting the twist-up Adjusting dioptric correction eyecups Dioptric correction adjustment procedure: 1. Cover the left objective (or close left eye) You can adjust the eyecups individually. 2. Press the main button (2) Leave eyecups in retracted position Rubberised binocular body Focusing knob 3.
- Page 8 Basic optical device parameters MeoPro Optika LR 8x50 HD MeoPro Optika LR 10x42 HD Magnification Magnification Optical lens diameter (mm) Optical lens diameter (mm) Field of view (°) Field of view (°) 110 (334 ft/1000 yds) 108 (330 ft/1000 yds)
-
Page 9: Device Settings
MeoPro Optika LR — Operation The device can measure and display the direct distance of the measured target and data indicating the incline (the angle between the binocular axis and the horizontal). 1278.5 After a measurement is done, the display shows values that stay there until automatic shut-off (about 10 seconds) or until the next measurement. The display’s brightness can be adjusted in the menu to ambient conditions. - Page 10 1. Choosing the measurement method Three icons glow on the display: an “Auto” sign, a flag (Near Ranging) and a deer (Far Ranging), and the currently chosen method flashes. Auto — During measurement, the distance of the target within the aiming ring appears, and it changes according to how the target moves or which target is currently in the aiming mark.
- Page 11 < shows the angle in degrees. V shows the height difference of the target in the units chosen in selection 2. H shows the horizontal distance in the units chosen in selection 2. OFF means the display is shut off, and after a measurement is done only the direct distance will remain on the display until automatic shut-off (about 10 seconds) or until the next measurement.
-
Page 12: Replacing The Battery
Unscrew the battery cover anti-clockwise using a coin or something similar. Insert the battery with the positive pole first. Screw the battery cover back in clockwise. battery lid for MeoPro Optika LR 8x50 HD Notes: • Low temperatures may adversely affect battery performance. The binoculars should be held as close to the body as possible during cold weather. - Page 13 Table showing different effects of HIGHER REACH LOWER REACH measuring environment and object Object colour white dark measurement The rangefinder reach is about 2.380 / 2.740 m Object angle vertical plane oblique plane under ideal conditions. This 2.380 / 2.740 m maximum reach is specified for a light- coloured, adequately large target under optimal Size of the object in relation to the...
-
Page 14: Troubleshooting
Troubleshooting PROBLEM OR INDICATED ERROR CAUSE SOLUTION 1. Eye pupil is not aligned with the exit pupil 1. Place your eye at the centre of the eyecup. of the binoculars. 2. Adjust the distance between eyes to the Circular image is not visible. 2. -
Page 15: Maintenance And Cleaning
Optical cleaning kit To keep your optical device in optimal condition, we recommend 3. Protect the optical surfaces that a special Meopta cleaning kit be purchased: 2-in-1 brush, with the caps optical cloth, squeeze blower, cleaning fluid. In the event of a complaint or defect, contact your dealer or the manufacturer directly —... - Page 16 Accessories THE PACKAGE INCLUDES: MeoPro Optika LR 10x42 HD / MeoPro Optika LR 8x50 HD binoculars 1 unit Carrying bag with strap 1 unit Caps for eyepieces and lenses 1 unit Optical wipe 1 unit Cardboard box, user manual, warranty certificate, battery...
- Page 17 MeoPro Optika LR 10x42 HD / MeoPro Optika LR 8x50 HD Important! Instructions for disposing of the product at the end of its useful life. Batteries Never discard batteries with ordinary waste. By law, you must return the used batteries to the previously specified location.
