Conrad CC-4100 Manual

Carbon Monoxice Alarm Manual
MODEL NR.: CC-4100

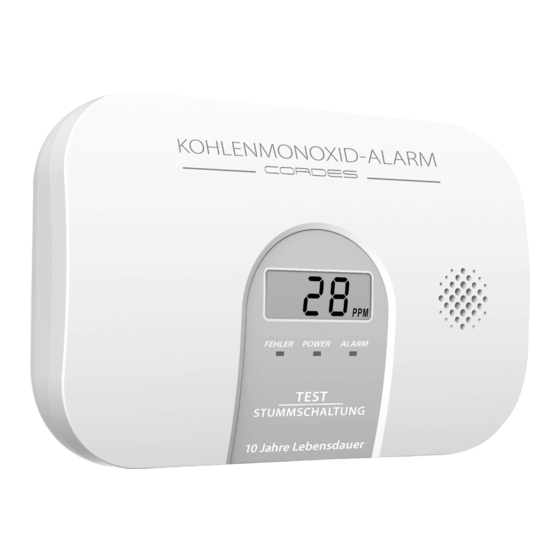

Thank you for purchasing the CC-4100 carbon monoxide (CO) alarm.
This unit uses advanced electrochemical sensor, and with LCD digital
display for CO concentration. Please take a few minutes to thoroughly
read the user manual before operating or servicing and familiarize
yourself and your family with its operation. And save for future refe-
rence.
CAUTION:
This CO alarm is designed for indoor use only. Do not expose to
rain or moisture. Do not knock or drop the detector. Do not open or
tamper with the alarm as this could cause malfunction. The alarm
will not protect against the risk of carbon monoxide poisoning
when the battery has drained. Installation of the alarm should not
be used as a substitute for proper installation, use and maintenan-
ce of fuel burning appliances including appropriate ventilation
and exhaust systems.
WARNING! - Do NOT try to repair the device, it has the risk of elect-
ric shock or malfunction if the device is tampered with.
Table of Contents
1. Installation instructions
2. Product overview
3. Understanding your CO alarm
4. What to do if the alarm sounds
5. Battery installation/replacement
6. General maintenance
7. Carbon monoxide overview
9. Manufacturer/Customer service information
10. Warranty Information
11. Warranty card
1. Installation instructions instructions
1.1 Installation location
When choosing your installation locations, make sure you can hear
the alarm from all sleeping areas. If you install only one CO alarm in
your home, install the alarm near bedrooms. Not in the basement or
furnace room. The recommended position for the unit should be at
CAUTION: This alarm should be installed by a competent person.
1.2 Mounting step
1. Drilling two ф5.0mm holes in the wall, the distance between two
holes center is 52mm, then inserting two plastic stopper provided
into the holes.
2. Insert the two screws provided until the screw heads are approxi-
mately 5mm from wall.
3. Test the unit by using the TEST/SILENCE button. Ensure the unit
sound is alarm pattern.
4. Hook the unit over the screws onto keyholes in back of unit.
1.3 Recommended installation locations
The following suggestions are intended to help you with the place-
ment and installation of your CO alarm.
•
Place out of the reach of children. Under no circumstance should
children be allowed to handle the CO alarm.
•
Install in a bedroom or hallway located close to the sleeping area.
Take special care to verify the alarm can be heard in sleeping areas.
•
It is recommended that a CO alarm be installed on each level of a
multilevel home.
•
Locate 1~3 meter (3.3~10feet) away from all fuel burning appli-
ances.
•
Placing at eye level allows for optimum monitoring of the red and
green indicator lights.
•
Insure that all vents of the unit are unobstructed. holes of the wall
plastic stopper distance : 52mm
•
Do not install in dead air spaces such as peaks of vaulted ceilings,
or gabled roofs.
•
Do not install in turbulent air from ceiling fans.
•
Do not place near fresh air vents or close to doors and windows
that open to the outside.
•
Keep the CO alarm away from excessively dusty, dirty, or greasy
areas such as kitchens, garages and furnace rooms. Dust, grease
•
Keep out of damp and humid areas such as the bath room. Avoid
spraying aerosols near the CO alarm.
•
Do not install in areas where the temperature is below-10℃ or
hotter than 45℃.
•
Do not place behind curtains or furniture. CO must be able to
reach the sensor for the unit to accurately detect CO.
1
