Toto TS362P Installation And Owner's Manual

Hide thumbs Also See for TS362P:

Table of Contents

Download this manual

Installation and Owner's Manual

Manual de instrucciones y del propietrario

Manuel d'installation et d'utilisation

Oberon® Pressure Balance Trim

Cubierta de equilibrio de presión Oberon®

Garniture d'equilibrage de pression Oberon®

Warranty Registration and Inquiry

For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit

our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-

tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260

(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.

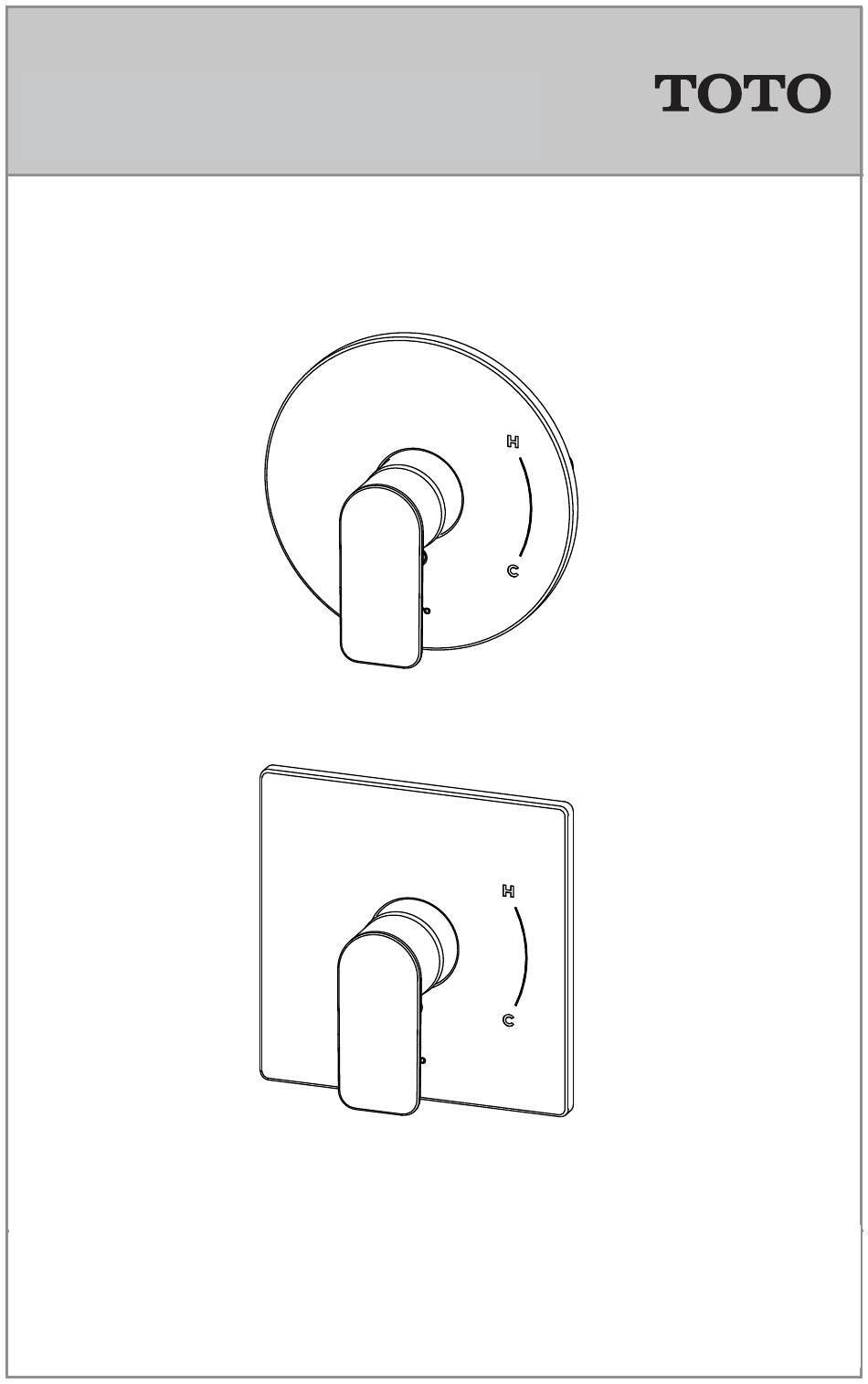

TS362P

TS363P

Table of Contents

Need help?

Do you have a question about the TS362P and is the answer not in the manual?

Page 1 TS363P Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...
Page 2 Rough-In Dimensions ..................15 THANKS FOR CHOOSING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
Page 3 PARTS INCLUDED Check to make sure that all these parts were included in your packaging: Collar Screw and Lock Washer Escutcheon* Handle Long Screws (2) Screw Adapter Set Screw and Allen Wrench * Actual product may differ in appearance from illustration depending on the model. INSTALLATION PROCEDURE 1.
Page 4 INSTALLATION PROCEDURE 3. Use the screw to ill. 2 ill. 3 mount the escutcheon Finished wall to the collar (ill. 2). Make sure that Collar the TOTO logo is positioned on the Valve bottom center. Adapter Lock washer Screw Screw Escutcheon 4.
Page 5 ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTE TS362 Valve Min: 1- ⁄ " [49mm] 7- ⁄ " 180mm Max: 2- ⁄ " [68mm] 3- ⁄ " 80mm 2- ⁄ " 59mm Finished Wall Surface ⁄ " 9mm TS363 Valve 7- ⁄...
