Toto TBW02004U4 Installation And Owner's Manual

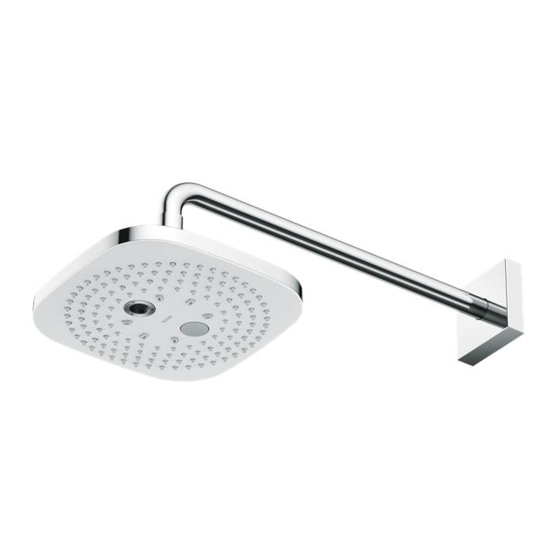

Square showerhead 2 mode. square pressure balance valve trim. pressure balancing valve
Hide thumbs Also See for TBW02004U4:
Table of Contents

Advertisement

Quick Links

Download this manual

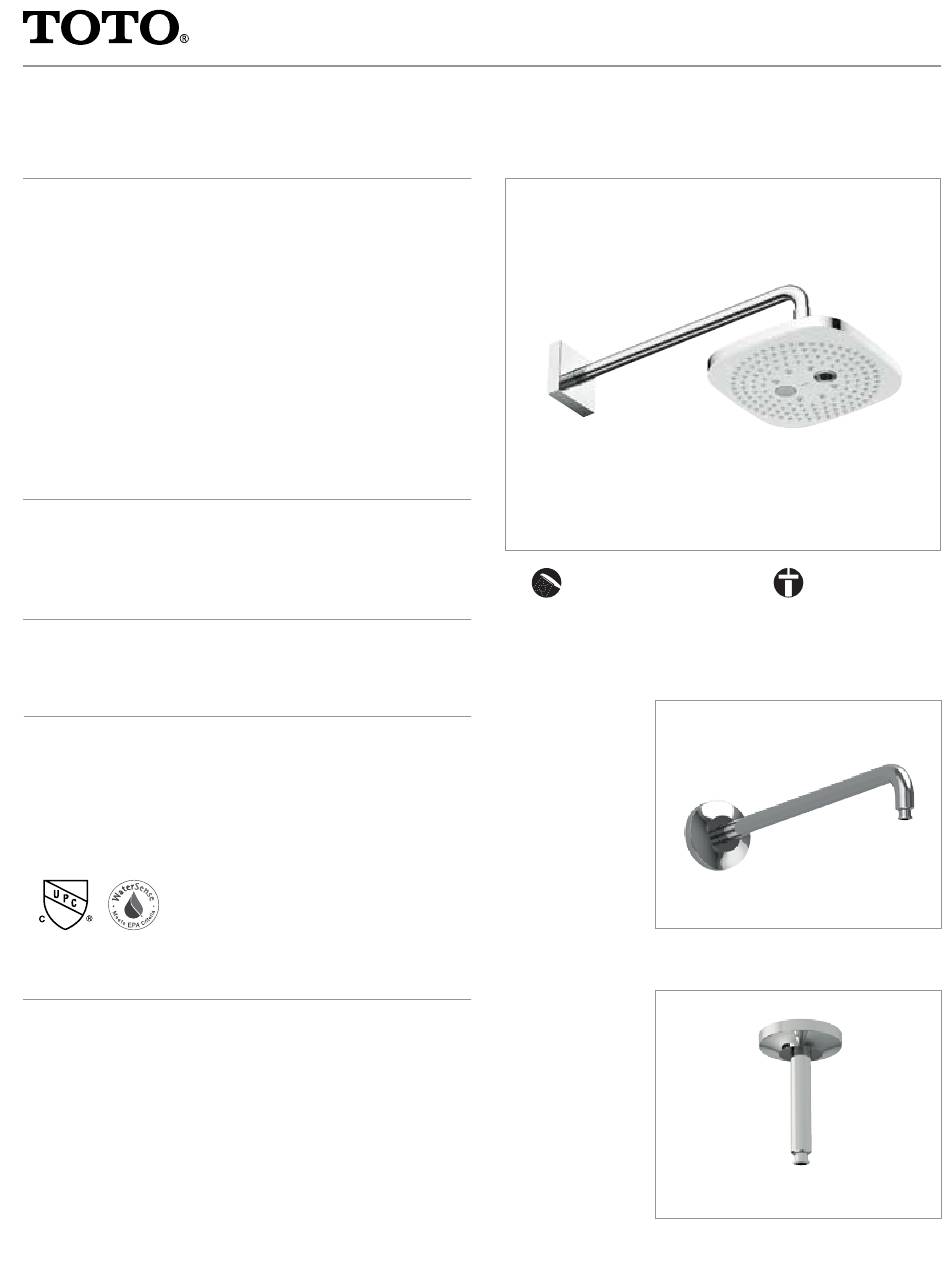

FEATURES
•
WaterSense
certified high-efficiency
®
1.75 gpm (6.6 lpm)
•
Balanced Comfort Wave™ technology with wide
coverage rinse & wash
•
Bathing shower Warm Spa™ Technology
•
8.5" (220 mm) diameter spray face
•
Rubber nozzles to prevent lime scale build up
•
Meets 2018 California water efficiency appliance
CEC regulations
•
Includes matching escutcheon
•
Shower arm sold separately
COMPATIBLE COMPONENT
TS110MW16: Rain Shower Arm Wall Mount 16"
TS110MC6: Rain Shower Arm Ceiling Mount 6"
COLORS/FINISHES
#CP Polished Chrome
CODES/STANDARDS
•
Meets or exceeds ASME A112.18.1/CSA B125.1
•
Certifications: IAPMO(cUPC), State of
Massachusetts, EPA WaterSense, and others
•
Code Compliance: UPC, IPC, NSPC, NPC Canada,
CEC, DoE, and others
•
Complies with CA Prop 65 warning requirements
Certified by
IAPMO R&T
PRODUCT SPECIFICATION
Product shall be TOTO Model TBW02004U4#___.
Product shall have a maximum flow rate of 1.75
gpm (6.6 lpm). Product shall have a multiple spray.
Product shall have balanced overlaying rinse and wash
Comfort Wave Technology. Product shall have bathing
shower Warm Spa Technology. Product shall have
8.5" (220 mm) diameter spray face. Product shall have
rubber nozzles to prevent lime scale build up. Product
shall meet 2018 California water efficiency appliance
CEC regulations. Product shall include matching
escutcheon. Product shower arm sold separately.
Square Showerhead 2 Mode
(Sold Separately)
WARM SPA
TBW02004U4
Comfort Wave
COMFORT WAVE
ACTIVE WAVE
SOFT FLOW
Please note the following components
TS110MW16: Rain Shower Arm Wall Mount 16"
TS110MC6: Rain Shower Arm Ceiling Mount 6"
Warm Spa
ZERO DIMENSION
WARM SPA
COMFORT WAVE
ACTIVE WAVE
are sold separately
SOFT FLOW
ZERO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBW02004U4 and is the answer not in the manual?

Questions and answers

Related Manuals for Toto TBW02004U4

Summary of Contents for Toto TBW02004U4

  • Page 1 IAPMO R&T TS110MW16: Rain Shower Arm Wall Mount 16" PRODUCT SPECIFICATION Product shall be TOTO Model TBW02004U4#___. Product shall have a maximum flow rate of 1.75 gpm (6.6 lpm). Product shall have a multiple spray. Product shall have balanced overlaying rinse and wash Comfort Wave Technology.
  • Page 2 Note: The unit of above dimension is inch (mm); the dimension in [ ] is for reference only. Shower arm and mounting bracket are not included. Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA #SS-01361 v.01...
  • Page 3 Massachusetts , City of Los Angeles, and others • Code compliance: UPC, IPC, NSPC, NPC Canada, and others • ADA compliant PRODUCT SPECIFICATION Pressure balance valve trim shall have a lever handle. Product shall be TOTO Model TS362P#CP and required valve shall be TSPTM (sold separately).
  • Page 4 Min: 1- ⁄ " [49mm] Max: 2- ⁄ " [68mm] 7- ⁄ " 180mm 3- ⁄ " 80mm 2- ⁄ " 59mm Finished ⁄ " 9mm Wall Surface Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA #SS-01241 v.01...
  • Page 5 TSPTM Pressure Balancing Valve FEATURES • Corrosion resistant • Anti-scald valve • Adjustable temperature limit stop • Tub port for use with diverter tub spout • Integral shut-offs / check valves • 1/2” NPT / sweat connections • Back-to-back installation compatible without cross-over piping •...
  • Page 6 5-1/16"(129mm) Finished ø5" (127mm) Wall Surface Valve shown with plaster guard removed Required Hole These dimensions and specifi cations are subject to change without notice Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA #SS-00865, v.03...
  • Page 7 TS110MW16 Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...

  • Page 8: Table Of Contents

    Rough-In Dimensions ..................14 THANKS FOR CHOOSING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

  • Page 9: Before Installation

    Read these instructions carefully to ensure proper installation. „ Make sure there are adequate mounting supports. „ TOTO reserves the right to update the product design without notice. „ Check to make sure you have the following parts indicated below: „...

  • Page 10: Installation Procedure

    INSTALLATION PROCEDURE Studs 7/8”-1” Clearance Brace Hole Elbow Shower Flange Washers Lag Screws Supply Line Recommended Shower Arm Mounting Support Flange Supply Line 1. Slide the shower flange onto the shower arm assembly. 2. Wrap the shower arm threads with pipe tape. Screw the shower arm into the supply line.

  • Page 11: Warranty

    INC., 1155 Southern Road, Morrow, GA 30260 (888) 295 8134 or (678) 466-1300, if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery.

  • Page 12: Gracias Por Elegir Toto

    Garantía .........................9 Dimensiones Preliminares ..................14 ¡GRACIAS POR ELEGIR TOTO! La misión de TOTO’s es proporcionar estilos de vida saludables, higiénicos y más cómodos. Diseñamos cada producto con el equilibro de forma y función como principio rector. Felicitaciones por su elección.

  • Page 13: Antes De La Instalación

    Lea estas instrucciones con atención para asegurar una instalación „ correcta. Asegúrese de que no son los adecuados soportes. „ TOTO se reserva el derecho de actualizar el diseño del producto sin „ previo aviso. Verifique para asegurarse de tener las piezas que se indican a „...

  • Page 14: Procedimiento De Instalación

    ANTES DE LA INSTALACIÓN Clavos Soporte de Orificio de paso de 7/8” - 1” Codo Brida de la ducha Arandelas Tornillos de cabeza Conducto cuadrada de abastec- imiento Soporte de montaje Brazo de la Tuerca recomendado ducha Brida Conducto de abastec- imiento 1.

  • Page 15: Garantía

    7. Para obtener el servicio de reparación de esta garantía, debe llevar el Producto o enviarlo prepagado a un modulo de servicios TOTO junto con la prueba de compra (recibo de compra original) y una carta en la que plantee el problema, o póngase en contacto con un distribuidor TOTO o el contratista de servicio de los productos, o escriba directamente a TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 (888) 295...

  • Page 16: Merci D'avoir Choisi Toto

    Dimensions Brutes ....................14 MERCI D’AVOIR CHOISI TOTO! La mission de TOTO est d’apporter au monde entier un style de vie sain, hygiénique et plus confortable. Nous créons tous nos produits avec un principe de base à l’esprit : équilibrer forme et fonction. Félicitations pour votre choix.

  • Page 17: Avant De Commencer

    Lisez attentivement ces instructions afin de vous assurer d’effectuer une „ installation correcte. Assurez-vous qu’il existe des supports de montage convenables. „ TOTO se réserve le droit de mettre à jour la conception du produit sans „ avis préalable. Vérifiez que vous disposez bien des pièces indiquées ci-dessous: „...

  • Page 18: Procédure D'installation

    PROCÉDURE D’INSTALLATION Les Clous Contrefiche Trou de dé- en 2x6 gagement de 7/8 po - 1 po Coude Bride de douche Rondelles Vis tirefonds Canalisation d’alimentation Support de montage Bras de Écrou recommandé douche Bride Canalisation d’alimentation 1. Glissez la bride de douche sur l’assemblage de bras de douche. 2.

  • Page 19: Garantie

    TOTO se réserve le droit d`effectuer ce genre de vérifications en cas de nécessité afin de déterminer la cause du défaut. TOTO ne facturera pas les interventions ou les pièces relatives à la réparation et au remplacement sous garantie. TOTO n`est pas responsable du coût de désinstallation, de renvoi et/ou de réinstallation de l`appareil.

  • Page 20: Rough-In Dimensions

    ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES 16” (406mm) 2-1/4” 1/2”NPT (55mm) SIDE VIEW 3” (75mm) 1-21/32” (42mm) 1-21/32” (42mm) FRONT VIEW...
  • Page 22 Rev A Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...

This manual is also suitable for:

Oberon ts363pTsptmTs110mw16
