Installation and Owner's Manual
Manual de Instrucciones y del Propietrario
Manuel D'Installation et D'Utilisation
Showerhead and Arm
Ducha Fija y Brazo
Pomme de Douche et Bras
TRANSITIONAL COLLECTION
Warranty Registration and Inquiry
For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit
our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con-
tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260
(888) 295-8134 or (678) 466-1300 when calling from outside of U.S.A.
SERIES A
TS200N6
TS200A(L)51
TS200A(L)55
TS200A(L)61
TS200A(L)65
TRADITIONAL COLLECTION
SERIES A
TS300N6
TS300A(L)51
TS300A(L)55
TS300A(L)61
TS300A(L)65
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toto TRANSITIONAL A Series
Summary of Contents for Toto TRANSITIONAL A Series

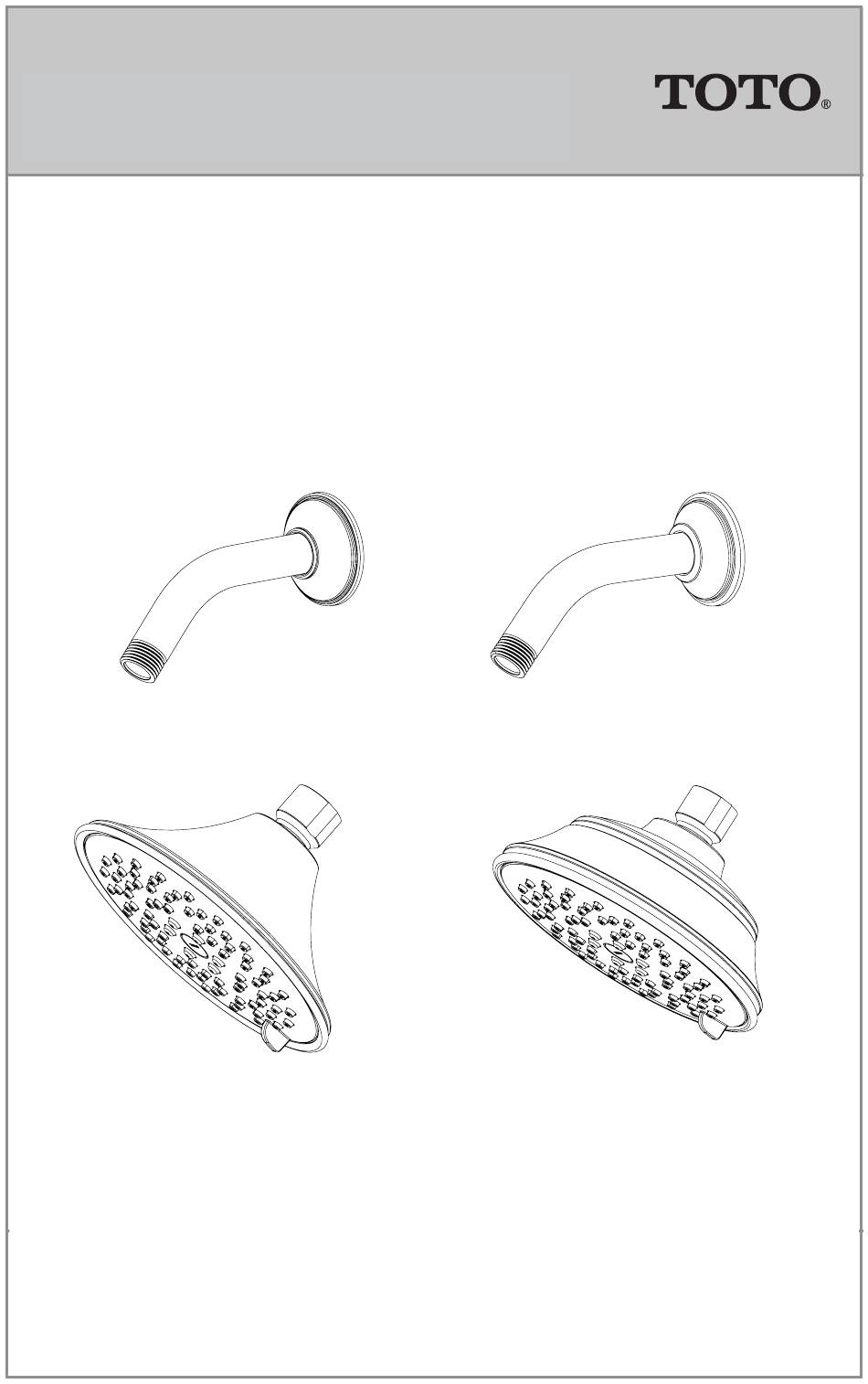

- Page 1 TS300A(L)65 Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260...
- Page 2 Replacement Parts ..................... 15 THANKS FOR CHOOSING TOTO! The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
- Page 3 Observe all local plumbing codes. „ Make sure the water supply is shut off. „ Read these instructions carefully to ensure proper installation. „ TOTO reserves the right to update product design without notice. „ INSTALLATION PROCEDURE Finished wall Escutcheon Shower Arm...
- Page 4 ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTE Transitional TS200N6 5-7/8" 150mm 2-1/4" 58mm 3-1/8" 80mm 1/2” NPT 1/2” NPT Traditional TS300N6 5-7/8" 150mm 2-1/4" 58mm 3-1/8" 80mm 1/2” NPT 1/2” NPT...
- Page 5 ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTE Transitional 4.5” TS200A(L)51 TS200A(L)55 G 1/2" 4-7/16" 112mm 3-5/16" 84mm Transitional 5.5” TS200A(L)61 TS200A(L)65 G 1/2" 5-3/8" 136mm 3-3/8" 85mm Traditional 4.5” TS300A(L)51 TS300A(L)55 G 1/2" 4-3/8" 111mm 3-3/8" 85mm Traditional 5.5” TS300A(L)61 TS300A(L)65 G 1/2"...
- Page 6 REPLACEMENT PARTS / PIEZAS DE REPUESTO / PIÈCES DE RECHANGE No. Description Descripción Description Gasket / Sieve Junta / Colador Joint / Passoire...
