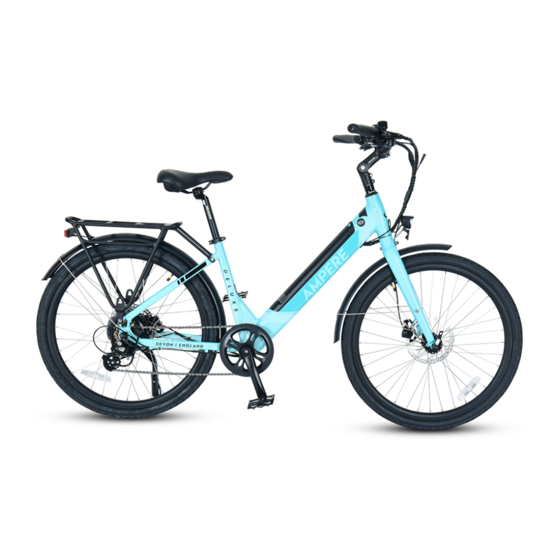

- Page 1 User Manual Deluxe / Hilux / X-Trail www.ampereelectric.co.uk...
-
Page 2: Table Of Contents
Table of Contents 1. Warranty terms 2. Included in the box 3. Assembly 4. Register your warranty 5. Charging the battery 6. LCD display – how to use your e-bike controls 7. Care and maintenance 8. Modifications This manual should be considered a permanent part of the electric bike and should be passed on to the next owner. -
Page 3: Warranty Terms
Note: At our discretion we may decide to issue a full refund instead of providing a repair or replacement. Faulty goods notified to us AFTER 14 days and within the warranty period are to be returned to Ampere at the expense and risk of the customer. The customer should arrange their own shipping back to Ampere and ensure that any parcel sent to us is adequately insured. -
Page 4: Included In The Box
Included in the Box Electric Bike Tool Kit Charger Manual Pedals Battery Keys www.ampereelectric.co.uk... -
Page 5: Assembly
Assembly Your e-bike comes 85% assembled. To complete the assembly the handlebars, front wheel, pedals, saddle and seat post will need to be attached. To do this, instructions with diagrams are set out in this section. If you are having difficulty assembling the e-bike, please call your retailer for assistance. Further help is available on our website where we publish FAQs or you can email us at enquiries@ampereelectric.co.uk. - Page 6 To complete, adjust the position of the handlebars and tighten the bolts in the order set out in the picture below. Please note some models only have 2 bolts to tighten. Connect the wires by colour. All the electronic wires should be connected already. If, however, they have become disconnected the wires should be reconnected according to colour.
- Page 7 Fitting the Mudguards and Front light 1. Remove the bolt from the front of the fork and place the mudguard and light in front of the fitting. Then reinsert the bolt and secure the mudguard and light in place. 2. Once the light and mudguard are both attached you will need to secure the mudguard support stays.
- Page 8 Attaching the front wheel Loosen the pin through the middle of the wheel to allow you to place the fork onto it. Make sure the brake disc is properly inserted into the brake calliper. Tighten the nut and hold the lever in an upright position as shown in the picture below. Once tight push the lever in to secure the wheel.
- Page 9 The right pedal is attached on the same side as the chain. Make sure you check the pedals are tight and secure before riding. Attaching the seat Screw the seat onto the seat post. Slide the saddle post into the seat tube. Align the seat with the frame to make sure it is straight.
- Page 10 Regular checks Please check that: - the quick release clamping lever on the seat post is secure. the brakes are working correctly. the tyre pressure is correct – If the tyres need pumping up, attach a bike pump to the valve (shown in the photo below) and inflate to 40 –...
-
Page 11: Register Your Warranty
Register your warranty To register your warranty, go to www.ampereelectric.co.uk/register-warranty/ or scan the QR code below. To register your warranty, you will need to know your frame serial number and battery serial number. The frame serial number is located on the front of the frame behind your front light or on the seat tube, as shown in the picture below. - Page 12 Extra 30 days free warranty when you complete a Trustpilot review. We are offering all our customers an additional 30-day warranty if they leave us a review on Trustpilot. All you need to do is follow the simple steps below: 1.
-
Page 13: Charging The Battery
The e-bike is supplied with a removable, rechargeable lithium-ion battery. Only use the charger provided or an official charger supplied by Ampere. The charging port is located on the bottom left side of the battery as it sits in the frame, next to the keyhole. -
Page 14: Lcd Display - How To Use Your E-Bike Controls
LCD display – How to use your e-bike controls 1. SPEC 24V/36V/48V/60V/72V/UBE power supply Rated power 1W USB charge DC 5V 500mA Power off leak currant<1uA Controller supply work currant 100mA, peak lower than 300mA ... - Page 15 3. Production Introduction Speed display: including real-time speed “RT SPEED”, “MAX SPEED”, average speed “AVG SPEED” SEETING SPEED SCALE (mph/kph): Km / mile display can be set according to customers preference Intelligent battery indicator: Provide stable battery reminder through optimization algorithm, power is not affected by motor start-stop fluctuations, if the system supports battery communication, it can display accurate percentage power ...
- Page 16 Mileage display: Can display accumulated mileage “ODO”, single mileage “Trip”, riding time “Time” Output power indication: Real-time display of output power (battery output power) Fault Diagnostics Display: provide description for fault code Walk assist function: support 6km walk assist ...
- Page 17 4. LCD Display Instructions LCD full display Brake Indicator Faulty Indicator as follow Front Light Power Indicator USB Indicator Speed Mode Value Indicator Speed Mode Speed Circle M ileage Mode Gear Indicator Value Indicator Speed mode: average speed (AVG SPEED), maximum speed (MAX SPEED), real-time speed (RT SPEED) ...
- Page 18 Mileage mode: Divided into single mileage “TRIP”, accumulated mileage “ODO”, riding time “TIME”. Mileage display: Display mileage information or time information according to the set mode. USB display: the interface displays when the USB charging function is turned on. 5.
- Page 19 c. Mileage Mode Switch When power on, short-press POWER BUTTON to switch the mileage display mode, and the following information is displayed cyclically: riding time (Time) → accumulated mileage (ODO) → power information (Pow) → single mileage (Trip). *If there is no key operation for 5 seconds, the meter will automatically return to the single mileage display state.
- Page 20 Average Speed (AVG） Max Speed (MAX） Real time speed (SPEED） *If there is no key operation for 5 seconds, the meter will automatically return to the real-time speed display state. d. Headlight / Backlight Switch Press and hold + BUTTON (1 second), the brightness of the meter's backlight decreases, and the lights are turned on.
- Page 21 e. Walking Mode (6km walk assist） Press and hold MINUS BUTTON (1 second), the electric bike enters the boosting state, the speed displays the real-time speed, and the gear position displays “P”. Release MINUS BUTTON to exit the walking mode. Walking Mode Off Walking Mode On f.
- Page 22 g. Clear Data Press + BUTTON and – BUTTON together for 1 second to clear the temporary data. The cleared data includes the maximum speed (MAX SPEED), average speed (AVG SPEED), single mileage (TRIP), and riding time (TIME). *The above data will not be cleared when the display is turned off or the electric bike is turned off. 6.
- Page 23 Backlight Brightness adjust interface Automatic shutdown time: for item P2, press + BUTTON and - BUTTON to adjust the position, 1 ~ 9 minutes represents the automatic shutdown time, OFF means cancel the automatic shutdown function. Adjust Interface Automatic Shutdown time ...
- Page 24 /single mileage display state. If the password is correct, enter the advanced settings menu. PLEASE NOTE THIS SHOULD ONLY BE ADJUSTED BY YOUR DEALER OR AMPERE. CHANGING THESE SETTING YOURSELF WILL VOID THE WARRANTY. Password Input Surface...
- Page 25 Voltage Choices：A1item，Press The + BUTTON or – BUTTON to switch between 24V / 36V / 48V / 60V / 72V / UBE. UBE stands for user-defined voltage. AMPERE BIKES SHOULD ALWAYS BE 36VOLTS Voltage Choices Interface www.ampereelectric.co.uk...
- Page 26 PAS LEVELS: A2 is adjust the levels of assistance, you can change the levels of assistance to 3/5/6/9 levels. To do this press the + BUTTON or – BUTTON to adjust then POWER BUTTON to confirm and exist. 1 means 3-speed system, 2 means 5-speed system 3, means 6-speed system and 4 means 9-speed system.
- Page 27 Currant Limiting Adjustment: item A4, Press + BUTTON and - BUTTON to adjust the current limit value. The default is 15A. Users can set the current limit value according to their needs. After the adjustment is completed, press POWER BUTTON to confirm and exit. DO NOT ADJUST THIS SETTING AS IT WILL VOID THE WARRANTY.
- Page 28 Number of speed measuring magnets: item A6, Press the + BUTTON and – BUTTON to adjust the number of speed measuring magnets 1 ~ 72. The user can set the number of speed measuring magnets according to the requirements. After the adjustment is completed, press the POWER BUTTON to confirm and exit.
- Page 29 Throttle 6KM: item A8 项, press + and – BUTTON to select the 6km function switch. DO NOT ADJUST THIS SETTING AS IT WILL VOID THE WARRANTY. Throttle 6KM Adjust Interface PAS orientation: item A9，Press + and - BUTTON to select the direction of the power sensor. DO NOT ADJUST THIS SETTING AS IT WILL VOID THE WARRANTY.
- Page 30 6. Installation Instruction 10.1 Please refer to the following figure for the instrument screw assembly. Pay attention to the screw tightening torque. Instrument damage caused by excessive torque is not covered by the warranty. M 3 * 8 mm M4*12 mm Display host and bracket use M4* 8 mm...
-
Page 31: Care And Maintenance
4. Charge your battery on a flat solid surface in an area that allows airflow. 5. Do not cover the battery or charger whilst charging. 6. Only use a charger supplied by Ampere. Modifications Do not attempt to modify, repair or replace any of the electrical parts on your e-bike. This will invalidate your warranty. - Page 32 User Manual Deluxe / Hilux / X-Trail www.ampereelectric.co.uk www.ampereelectric.co.uk...
