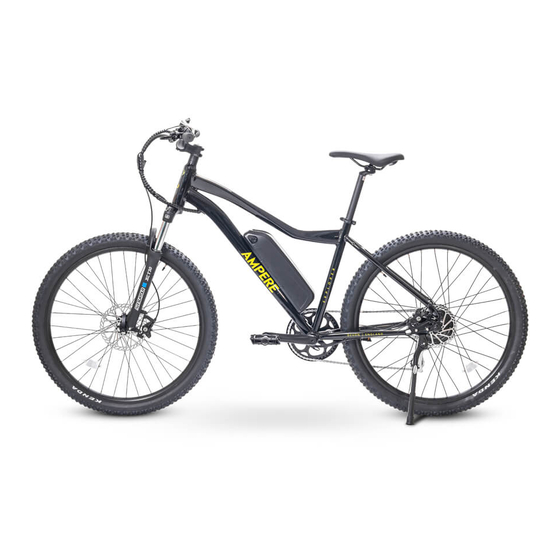

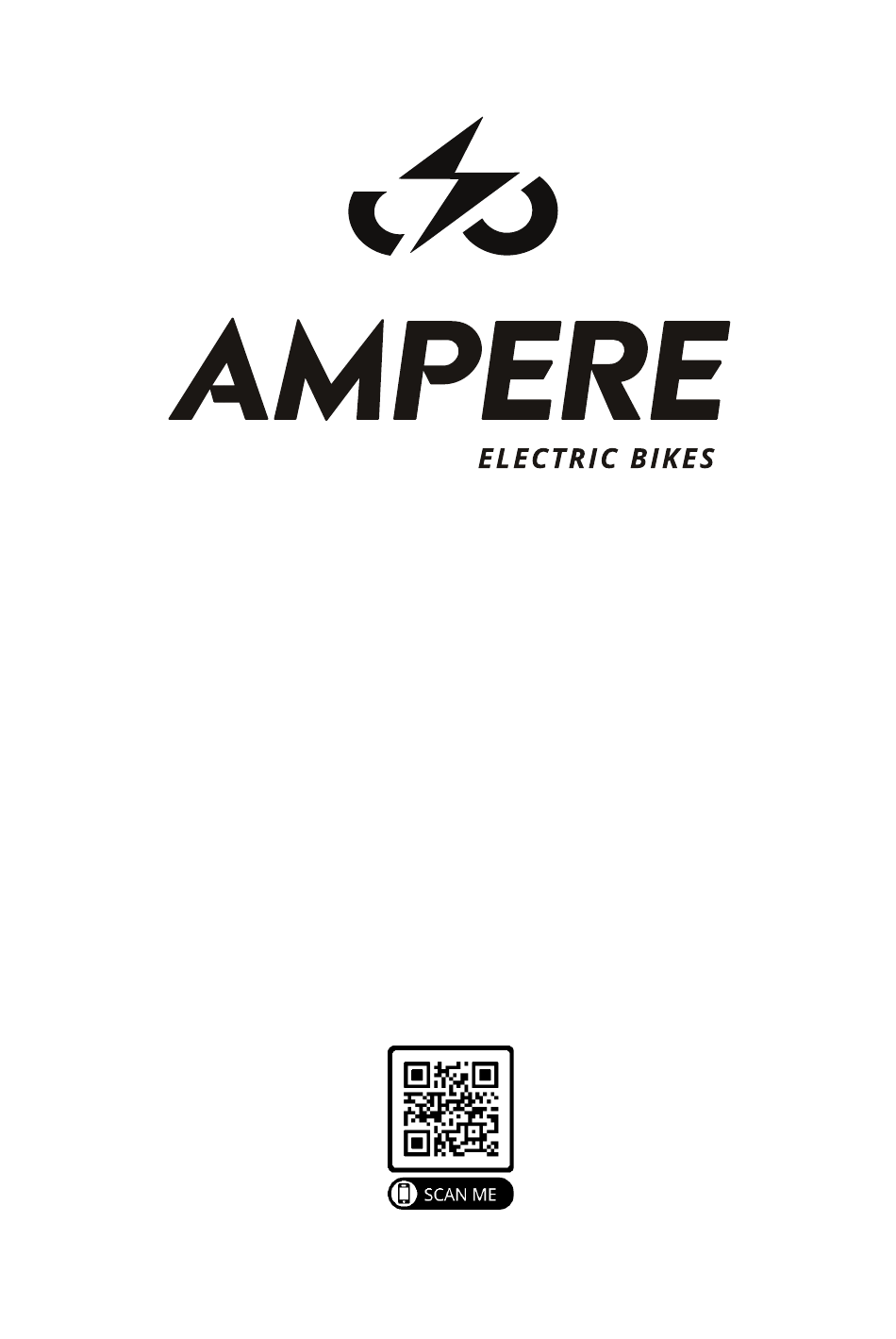

- Page 1 User Manual Explorer / Tourer / Tourer S www.ampereelectric.co.uk...
-
Page 2: Table Of Contents
Table of Contents 1. Warranty terms 2. Included in the box 3. Assembly 4. Register your warranty 5. Charging the battery 6. LCD display – how to use your e-bike controls 7. Care and maintenance 8. Modifications This manual should be considered a permanent part of the electric bike toolkit and should be passed on to the next owner. -
Page 3: Warranty Terms
Note: At our discretion we may decide to issue a full refund instead of providing a repair or replacement. Faulty goods notified to us AFTER 14 days and within the warranty period are to be returned to Ampere at the expense and risk of the customer. The customer should arrange their own shipping back to Ampere and ensure that any parcel sent to us is adequately insured. -
Page 4: Included In The Box
Included in the Box Electric Bike Charger Manual Pedals Battery Keys www.ampereelectric.co.uk... -
Page 5: Assembly
Assembly Your e-bike comes 85% assembled. To complete the assembly the handlebars, front wheel, pedals, saddle and seat post will need to be attached. To do this, instructions with diagrams are set out in this section. If you are having difficulty assembling the e-bike, please call your retailer for assistance. Further help is available on our website where we publish FAQs or call our customer service team on 07877950433. - Page 6 Place the handlebar into the handlebar stem and screw the 4 bolts in a cross-diagonal order using a 4mm Allen key. Connect the wires by colour. All the electronic wires should be connected already. If, however, they have become disconnected the wires should be reconnected according to colour. Please note - Use the arrows on each end to help make sure you line them up correctly.
- Page 7 Attaching the front wheel Loosen the pin through the middle of the wheel to allow you to place the fork onto it. Make sure the brake disc is properly inserted into the brake calliper. Tighten the nut and hold the lever in an upright position as shown in the picture below. Once tight push the lever in to secure the wheel.
- Page 8 The right pedal is attached on the same side as the chain. Make sure you check the pedals are tight and secure before riding. Attaching the seat Screw the saddle onto the seat post using a 6mm Allen key. Slide the seat post into the seat tube. Align the seat with the frame to make sure it is straight.
- Page 9 Regular checks Please check that: - the quick release clamping lever on the seat post is secure, the brakes are working correctly, the tyre pressure is correct – If the tyres need pumping up, attach a bike pump to the valve (shown in the photo below) and inflate to 40 –...
-
Page 10: Register Your Warranty
Register your warranty To register your warranty, go to www.ampereelectric.co.uk/register-warranty/ or scan the QR code below. To register your warranty, you will need to know your frame serial number. The frame serial number is located on the bottom of the frame of the frame in between the pedals, it will begin with the Letters YL. - Page 11 Limited time offer - your feedback through Trustpilot Extend your standard 12-month warranty by an extra 30 days when you complete a Trustpilot review within 7 days of your purchase date. All you need to do is follow the simple steps below: 1.
-
Page 12: Charging The Battery
The e-bike is supplied with a removable, rechargeable lithium-ion battery. Only use the charger provided or an official charger supplied by Ampere. The charging port is located on the top right-hand side of the battery as it sits on the frame, next to the keyhole. - Page 13 How to use your e-bike controls 1. Power on and off 2. Up arrow - increases power assist level 3. Down arrow - decreases power assist level 4. Walk assist function 5. Battery charge indicator 6. Pedal assist (PAS) level 7.
-
Page 14: Care And Maintenance
4. Charge your battery on a flat solid surface in an area that allows airflow. 5. Do not cover the battery or charger whilst charging. 6. Only use a charger supplied by Ampere. Modifications Do not attempt to modify, repair or replace any of the electrical parts on your e-bike. This will invalidate your warranty. - Page 15 Notes www.ampereelectric.co.uk...
- Page 16 User Manual Explorer / Tourer / Tourer S www.ampereelectric.co.uk www.ampereelectric.co.uk...
