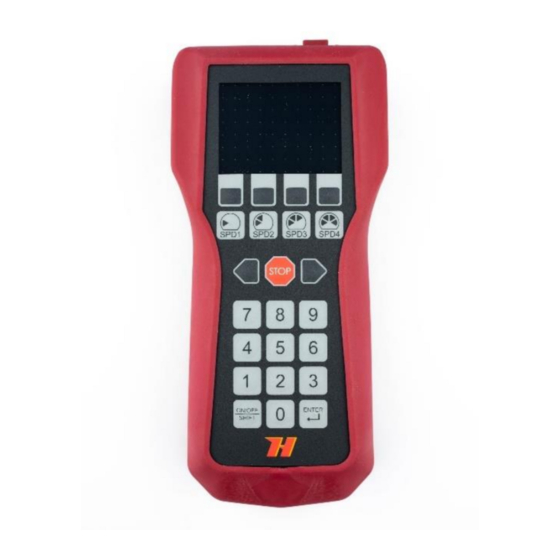

XTRA.REMOTE CONTROL
User Manual
Article No. 200.318
Document version:
Date:
5.2
2022-09-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200.318 and is the answer not in the manual?

Questions and answers

Related Manuals for De Haardt 200.318

Summary of Contents for De Haardt 200.318

  • Page 1 XTRA.REMOTE CONTROL User Manual Article No. 200.318 Document version: Date: 2022-09-06...
  • Page 2 Email: info@de-haardt.com All rights reserved. Safety All De Haardt’s products are designed as supplement to make go-karting safer, but cannot replace safe track procedures. If equipment fails, the normal operating procedure must still be adequate to safely operate the track.

  • Page 3: Table Of Contents

    Xtra.Remote Control - User Manual Table of Contents GET STARTED ..........................5 ’ ..........................5 S IN THE BOX .......................... 9 ERVICE ACCESSORIES ........................... 10 NSTALLATION 1.3.1 Placing Batteries ..........................10 1.3.2 Connecting the adapter ......................... 10 OPERATION ..........................11 ..........................
  • Page 4 Xtra.Remote Control - User Manual 3.2.5 Power off time ..........................36 3.2.6 Language ............................36 3.2.7 Elektro / fuel ..........................36 3.2.8 Track selection..........................37 3.2.9 Speed/ RPM settings for fuel go-karts ..................38 3.2.10 Edit default switch table ........................ 38 3.2.11 Show commands from others .......................

  • Page 5: Get Started

    Xtra.Remote Control - User Manual 1 Get started This manual provides information about correctly installing, configuring and using the Xtra.Remote Control. The full functionality of the Xtra.Remote Control will be explained. 1.1 What’s in the box Figure 1 Xtra.Remote Control box v5.2...
  • Page 6 Xtra.Remote Control - User Manual Before proceeding, check the contents of the kit. The box consists of the following parts: Xtra.Remote Control Unit with industrial silicon cover (red cover around remote) • Figure 2 Xtra.Remote Control Power adapter (1A @ 5V DC) with USB A to USB mini cable 0,5mtr •...
  • Page 7 Xtra.Remote Control - User Manual Pair of rechargeable batteries (NiMH) • Figure 4 Rechargeable batteries De Haardt keycord • Figure 5 Xtra.Remote Control keycord De Haardt USB stick • Figure 6 De Haardt USB stick v5.2...
  • Page 8 Xtra.Remote Control - User Manual Xtra.Remote Control battery lid • Figure 7 Xtra.Remote Control battery lid v5.2...

  • Page 9: Service Accessories

    Xtra.Remote Control - User Manual 1.2 Service accessories These products are NOT included with the Xtra.Remote Control. Products below are necessary for advanced changing the switch tables of Xtra.EV transponders. Xtra.EV transponder programming plug for the BLACK Xtra.EV transponders Figure 8 Programming plug black Xtra.EV transponder programming cable for the RED Xtra.EV transponders Figure 9 Programming plug red v5.2...

  • Page 10: Installation

    Xtra.Remote Control - User Manual 1.3 Installation The installation of the Xtra.Remote Control consist of placing the batteries and recharging if the batteries are empty. 1.3.1 Placing Batteries The Xtra.Remote Control Unit can be used with 2 rechargeable NiMH batteries type AA. Place the batteries according to the symbols + and –...

  • Page 11: Operation

    Xtra.Remote Control - User Manual 2 Operation The default operation will be explained in this chapter. 2.1 Buttons overview Below is a complete overview of the buttons on the Xtra.Remote Control. Each function will be explained in the following paragraphs. Soft button bar Speed button bar STOP...

  • Page 12: On/Off

    Xtra.Remote Control - User Manual 2.2 On/Off Press the ON/OFF button on the keyboard of the Xtra.Remote Control for at least one second to turn the device on. Once on, you can turn the device off by pressing and holding down the same button until the device turns off.

  • Page 13: Stopping Go-Kart(S)

    Xtra.Remote Control - User Manual 2.4 Stopping go-kart(s) The different operations to use the stop button will be described in this chapter. 2.4.1 Stopping all go-karts at once To stop all go-karts Press the SHIFT button, followed by the STOP button. This is the default operation and can be changed in the configuration menu.

  • Page 14: Stop An Individual Go-Kart

    Xtra.Remote Control - User Manual 2.4.2 Stop an individual go-kart Stopping an individual go-kart can be done in 2 ways: 2.4.2.1 Stopping by serial number By entering the serial number of the Xtra.Shutdown Transponder mounted on the go-kart and then press STOP.
  • Page 15 Xtra.Remote Control - User Manual 2.4.2.2 Stopping by go-kart number Entering a go-kart number or the last two digits of the serial number and then press STOP. The supported range of go-kart numbers is 1 to 245. For example: Figure 21 Go-kart number Figure 20 Stop action selection The following will be shown on the display:...

  • Page 16: Adjusting Speed Of Go-Kart(S)

    Xtra.Remote Control - User Manual 2.5 Adjusting speed of go-kart(s) Adjust the speed of go-karts can be done in 2 ways: 2.5.1 Adjust speed of all go-karts On the Xtra.Remote Control, there are 4 buttons for adjusting the speed of the go-kart(s). These buttons are: SPD1, SPD2, SPD3, SPD4 Figure 23 Speed buttons...

  • Page 17: Adjusting The Speed On 8 Spd Mode

    Xtra.Remote Control - User Manual 2.5.2 Adjusting the speed on 8 SPD mode To adjust the speed beyond SPD 4 a special input is required. This is only available with transponders that support 8 SPD. First, press the SHIFT button then press number 5. This will set the SPD to 5. Figure 26 Speed 5 shift press Figure 25 Speed 5 select Using the numbers 5, 6, 7 and 8, four more SPD commands can be used.
  • Page 18 Xtra.Remote Control - User Manual The following will be shown on the display: Figure 29 Go-kart speed limit screen IMPORTANT! The default go-kart numbers are the last two digits of the serial number. Custom go-kart numbers must first be set. See chapter 3.2.2 for more details.

  • Page 19: Penalties

    Xtra.Remote Control - User Manual 2.6 Penalties Penalties are a brief speed limitation. They can be given to an individual go-kart, a group of go- karts or all go-karts. Enter the penalty menu by pressing soft button 1 below the penalty icon. Giving a penalty to all go-karts is done by pressing the SPD button from this menu without a preceding number.

  • Page 20: Change Penalty Time

    Xtra.Remote Control - User Manual The following will be shown on the display: Figure 35 Penalty go-kart screen IMPORTANT! The default go-kart numbers are the last two digits of the serial number. Custom go-kart numbers must first be set. See chapter 3.2.2 for more details. 2.6.2 Change penalty time The penalty time can be changed by pressing the soft button 3 below the clock icon in the penalty menu.

  • Page 21: Adjusting Speed Of A Groups Of Go-Karts

    Xtra.Remote Control - User Manual 2.7 Adjusting speed of a groups of go-karts IMPORTANT! Group numbers must first be set before they can be used. See chapter 3.2.3 for more details. The speed of a group of go-karts can be adjusted by entering the group menu. Figure 36 Go-kart group selection Press the group number and then the SPD button.

  • Page 22: Adjusting Speed In A Sector

    Xtra.Remote Control - User Manual 2.8 Adjusting speed in a sector To adjust the speed of all go-karts in a specific sector, enter the sector menu. Figure 40 Sector selection Press the number of the sector and finally the SPD button. Figure 41 Sector speed Figure 42 Sector number selection...
  • Page 23 Xtra.Remote Control - User Manual v5.2...

  • Page 24: Operate Race Lights

    Xtra.Remote Control - User Manual 2.9 Operate Race Lights To operate the (race) lights, enter the light menu. Figure 44 Race Lights button Lights can be toggled by pressing the soft buttons below the corresponding colour. Pressing soft button 1 will turn the red light on. If there is no Xtra.Light Control Board connected, the display will always show “Please wait…”.

  • Page 25: Heat Control

    Xtra.Remote Control - User Manual 2.10 Heat control With the Heat control users can start, pause and stop a heat. To use this option, the Xtra.Range Extender or Xtra.Black Box must be connection with a computer which has software running that is compatible with Heat Control.

  • Page 26: Boost Function (Only Transponders With Boost Support)

    Xtra.Remote Control - User Manual 2.11 Boost function (only transponders with boost support) The boost function allows users to set the boost speed of a transponder. Only transponder that support boost can be used with this function. To get into the boost menu press the LEFT button from the Main menu. Figure 49 Left button Enter the go-kart number or serial number to give that transponder boost.

  • Page 27: Configurations

    Xtra.Remote Control - User Manual 3 Configurations The configuration menu has three options. Which will be explained individually here. Use the RIGHT button to go to the configuration menu. This menu is protected with a PIN code. The default PIN code is 0000. Figure 52 Right button The PIN code can be changed or disabled.

  • Page 28: Transponder Configuration

    Xtra.Remote Control - User Manual 3.1 Transponder configuration The transponder to be configured must be mounted on an active go-kart! When using a Xtra.EV Transponder make sure to connect the Xtra.EV Transponder programming plug or cable in order to set the switch table. To configure an black Xtra.EV-Transponder the following procedures are necessary before configuring: 1.
  • Page 29 Xtra.Remote Control - User Manual Connecting to a transponder can be done in two ways. 1) Enter the serial number(last two digits) or go-kart number of the transponder and press the search button. Figure 55 New transponder Figure 56 New transponder adding 2) Power off all active go-karts, except the go-kart to be configured.

  • Page 30: Serial Number

    Xtra.Remote Control - User Manual Figure 57 Go-kart configure menu 3.1.1 Serial number The serial number corresponds to the serial number on the label of the transponder. The serial number cannot be changed. 3.1.2 go-kart number The (go-kart) number can be changed to any number from 1 to 245. It is advisable to give a unique (go-kart) number to each go-kart.

  • Page 31: Reset Active Timer

    Xtra.Remote Control - User Manual 3.1.6 Reset active timer To reset the timer, select the “Reset timer” line and press (soft button 3) to reset the timer. v5.2...

  • Page 32: Read Battery Voltage And Rpm

    Xtra.Remote Control - User Manual 3.1.7 Read battery voltage and RPM The supply voltage and RPM of a transponder can be monitored. There is a difference between the information displayed by the Fuel and Electro go-karts. In the fuel transponder menu you will see “Average: RPM”, “Actual: RPM” and “Voltage:“. An electro transponder will show “Voltage:”, “Minimum”...

  • Page 33: Switch Table

    Xtra.Remote Control - User Manual 3.1.11 Switch table The Xtra.EV Transponder holds a table that configures the setting of the relays. Each speed can have its own set of relays settings. This menu has the following options: Recall switch table from Xtra.Remote recall default switch table.

  • Page 34: Preference

    Xtra.Remote Control - User Manual 3.2 Preference The remote control can be configured to suit your requirements and preferences. Press soft button 2 to change the preferences of the remote control. Figure 58 Preferences menu option This will show a list of 15 available options. Scroll up or down by pressing soft button 1 ”Up”...

  • Page 35: Display Brightness

    Xtra.Remote Control - User Manual 3.2.3 Display brightness The brightness of the LCD screen can be configured in this menu. Remember that a higher brightness will drain the batteries more quickly. Possible options are: Maximum High (default) Medium 3.2.4 Display low brightness time The display will dim if no buttons are pressed for a certain time.

  • Page 36: Power Off Time

    Xtra.Remote Control - User Manual 3.2.5 Power off time The Xtra.Remote Control can power off itself to reduce battery usage. When connected with an USB cable to the power adaptor or PC the Xtra.Remote Control will always remain active. IMPORTANT! To respond quickly the remote should always be active/on during a heat or race.

  • Page 37: Track Selection

    Xtra.Remote Control - User Manual Electro go-kart 8 SPD 3.2.8 Track selection Active tracks can be toggled by pressing the soft button below the corresponding track. It is possible to use the remote control on several circuits simultaneously. After changing the active tracks, press ENTER to confirm the changes.

  • Page 38: Speed/ Rpm Settings For Fuel Go-Karts

    Xtra.Remote Control - User Manual 3.2.9 Speed/ RPM settings for fuel go-karts These settings are for fuel go-karts only. The standard RPM values can be modified to fit the customers or the layout of the track. All the SPD buttons can be adjusted to any RPM value between 0 and 8000.

  • Page 39: Show Commands From Others

    Xtra.Remote Control - User Manual 3.2.11 Show commands from others To see commands send by other Xtra.Remote Controls, Xtra.Mini Remotes, Xtra.Range Extenders or Xtra.Black Boxes enable the “Show commands from others” option. Commands will be displayed on the current Xtra.Remote Control. Possible options are: Show Others Hide others (default)

  • Page 40: Use Sectors

    Xtra.Remote Control - User Manual 3.2.15 Use sectors If sectors are not be used, this function may be removed from the main menu. Possible options are: Disable sectors (the sector icon will disappear from the start screen) Enable sectors (default) 3.2.16 Use lights If no light control board is installed, this function may be removed from the main menu.

  • Page 41: Technical Specifications

    Xtra.Remote Control - User Manual 4 Technical specifications Description Min Typical Max Unit Operational temperature °C °C Temperature charger Charge time Input voltage USB [1] 5.25 Minimal input current Maximum range [1] Minimal required for fast charge 4.1 Batteries Only use rechargeable batteries of the type NiMH! Do NOT use conventional batteries.

  • Page 42: Support

    Xtra.Remote Control - User Manual 5 Support For support, one can contact De Haardt’s support department by email: support@de-haardt.com. 5.1 Update firmware Please follow these steps to update the Xtra.Remote Control with the latest firmware. 1) The first step to upgrading the Xtra.Remote Control Unit is removing the 2 rechargeable NiMH batteries type AA.
