- Page 1 XTRA.MINI REMOTE CONTROL User Manual Article No. 200.322 Document version: Date: 2022-09-06...
- Page 2 Email: info@de-haardt.com All rights reserved. Safety All De Haardt’s products are designed as supplement to make karting safer, but cannot replace safe track procedures. If equipment fails, the normal operating procedure must still be adequate to safely operate the track.
- Page 3 Xtra.Mini Remote Control - User Manual Table of Contents GETTING STARTED ........................4 .......................... 4 OPERATION ..........................5 CONFIGURATION ........................6 ....................6 HIFT ONFIGURATION PTIONS ........................6 EPLACING ATTERY TECHNICAL SPECIFICATIONS ....................7 ........................7 PECIFICATION VERVIEW ..........................7 PERATING ANGE SUPPORT ............................

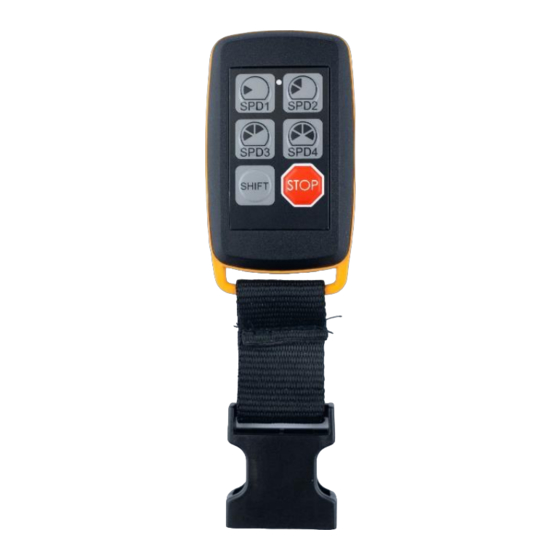

- Page 4 This mini remote has 6 buttons, each of which has a dedicated function. What Is In The Box Inside the box is the following: 1 Xtra.Mini Remote Control • 1 De Haardt USB stick containing the manual. • 1 Lanyard • v1.0...
- Page 5 Xtra.Mini Remote Control - User Manual Operation The Xtra.Mini Remote Control can be used in fuel or EV mode. See configuration for more information. By default the Xtra.Mini Remote Control is configured for fuel karts and offers the following functions: Button Function SPD1...
- Page 6 Xtra.Mini Remote Control - User Manual Configuration Shift-key Configuration Options The Xtra.Mini Remote Control can be configured through use of the SHIFT key. This enables you to enable or disable tracks, or change mode between fuel and EV karts. To enter the configuration menu, hold SHIFT for around 5 seconds. The indication LED will be illuminated constantly to indicate you are in configuration mode.
- Page 7 Xtra.Mini Remote Control - User Manual Technical Specifications Specification Overview Specifications Buttons 6 buttons, 4 speeds, 1 stop button, 1 configure button Tracks Any combination of 4 tracks Speed limit control (Fuel karts) Stop, 2100RPM, 3000RPM, 4000RPM, no limit Speed limit control (EV karts) Stop, speeds 1,2,3, no limit Addition commands On request...
- Page 8 Xtra.Mini Remote Control - User Manual Support For support, one can contact the support department of De Haardt by email: support@de- haardt.com A PC application which can configure the Xtra.Mini Remote Control and activate extra functions, such as track light controls is available. Please contact support if you require this option.
