- Page 1 Data Bender quickstart guide Data Bender shift clock mode time corrupt bend break freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right repeats time right...
- Page 2 Description Harness the Sound of Failure with Data Bender. Data Bender is a circuit bent digital audio buffer. It is inspired by the ways in which audio equipment can fail. The sounds of skipping CDs, software bugs, and defective tape machine playback are all accessible.
- Page 3 Initial Knob Positions Data Bender shift clock mode time bend break corrupt freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right right repeats time *These are the recommended initial knob positions, but who are we to pigeonhole you.
-
Page 4: Front Panel

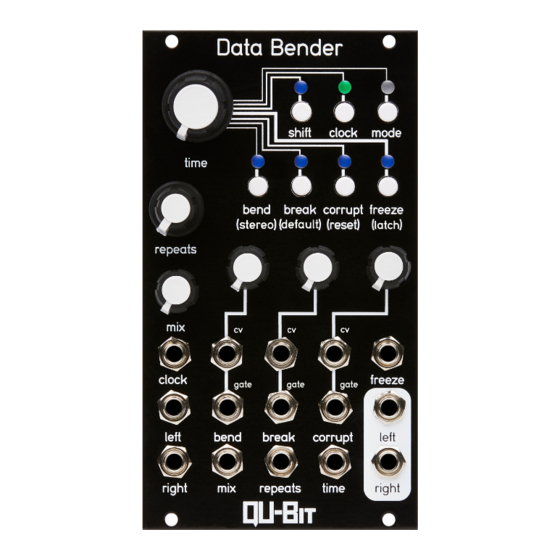

Front Panel Data Bender Tactile Controls CV Inputs Gate Inputs shift clock mode Audio IO time bend break corrupt freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right repeats time right... - Page 5 Time Sets the sample period for incoming audio to be processed. Time CV input. Range: -5V to 5V Repeats Divides the audio buffer into smaller subsections of audio. Turn up for glitch stutters. Repeats CV input. Range: -5V to 5V Controls the balance between the live input and the audio buffer.
- Page 6 Front Panel Data Bender Tactile Controls CV Inputs Gate Inputs shift clock mode Audio IO time bend break corrupt freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right repeats time right...
- Page 7 Corrupt Interchangeable end-of-chain effect within Data Bender. Corrupt CV input. Range: -5V to 5V Corrupt gate input. Threshold: 0.4V Corrupt Modes Decimate: varying bitcrush & downsampling effects. Dropout: audio dropouts, increasing across the knob. Destroy: soft saturation and hard clipping. DJ Filter: resonant lowpass and highpass filtering.
- Page 8 Front Panel Tactile Controls clock freeze gate gate gate CV Inputs left bend break corrupt left Gate Inputs Audio IO right repeats time right Audio Input Left Audio input for the left channel. Normals to both channels when no cable is present in Audio Input Right.
-
Page 9: Shift Functions
Shift Functions Shift+Time: Glitch Windowing. Changes the windowing on the audio buffer. Shift+Repeats: LED Dimmer. Changes the LED brightness. Shift+Mix: Stereo Enhancement. Adjusts the stereo width of the buffer. Shift+Bend Knob: Bend Attenuator. Attenuates the Bend CV input. Macro Mode only. Shift+Break Knob: Break Attenuator. - Page 10 Patch: Data Bender shift clock mode time bend break corrupt freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right repeats time right...
- Page 11 Patch: Data Bender shift clock mode time bend break corrupt freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right repeats time right...
- Page 12 Patch: Data Bender shift clock mode time bend break corrupt freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right repeats time right...
- Page 13 Patch: Data Bender shift clock mode time bend break corrupt freeze (stereo) (default) (reset) ( latch) repeats clock freeze gate gate gate left bend break corrupt left right repeats time right...
- Page 14 Harness The Sound Of Failure Circuit Bending is an important part of electronic music history, and we hope that Data Bender inspires you to dive deeper into the sounds of noise, glitch, and failure. Happy Patching, The Qu-Fam Learn More.
