Summary of Contents for Truper CM-14N2

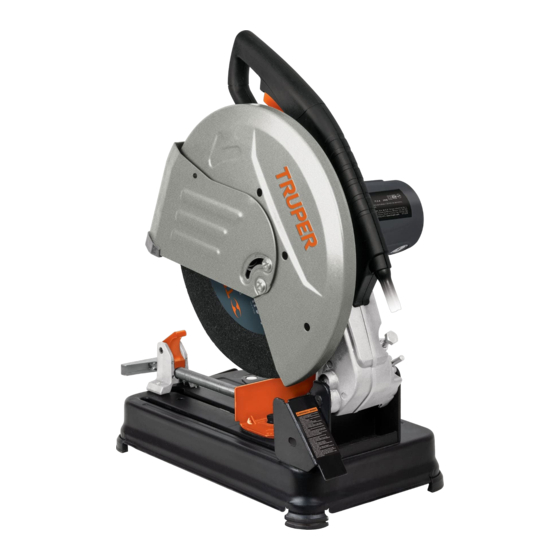

- Page 1 Manual Chop saw 3 Hp Applies for: Code Model 17733 CM-14N2 CM-14N2 Read the user’s manual thoroughly CAUTION before operating this tool.
-
Page 2: Table Of Contents
Parts using the tool. Start Up Keep this manual for future references. Cutting Capabilities The illustrations in this manual are for reference Operation only. They might be different from the real tool. Maintenance Authorized Service Centers Warranty Policy CM-14N2 ENGLISH... -
Page 3: Technical Data
Technical Data CM-14N2 Code 17733 Description Chop saw Disc Diameter 14” Voltage 127 V ˜ Frequency 60 Hz Current 17.3 A Power 3 Hp Speed 4 200 RPM Duty Cycle 50 minutes work per 20 minutes idle. Maximum 6 hours per day. -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Chop Saws
Safety warnings for Chop saws WARNING • Remember the guards do not protect General you from the moving disc underneath the work piece. Never • Use only 14” abrasive discs within the 4 200 RPM levels put your hand under while the tool is running. with specified threads for the tool. -
Page 6: Parts
Parts Cutter Fixed Head Guard Control Control Handle Handle Carbon Brushes Cap x2 Retractile Retractile Guard Guard Motor Axle Blocking Lever Disc Half-Nut Fixed Guard Front Angle Cut Guide Clamp (Rear Clamp) Switch Clamping Sparks Baffle Sparks Baffle Screw Plate Plate Continuous use button... -
Page 7: Start Up
Start Up A) Switch Turning On and Operation Control B) Continuous use button • Intermittent Operation: Connect the plug to the outlet. Press the switch (A) to start the operation. To stop use, just release the switch. • Continuous Operation: Connect the plug to the outlet. - Page 8 Start Up Cutting Angle Adjustment Rear Front Clamp Clamp • Loosen both knobs in the rear clamp. Screw • Turn it into the desired angle. • Tighten back both knobs. • The front clamp will rotate on its axle to automatically adjust to the work piece.
-
Page 9: Cutting Capabilities
Cutting Capabilities CAUTION The cutter is designed for ferrous materials. Do not try to cut wood, masonry or magnesium. Square Rectangular Square Round Pipe Pipe Pipe 90° 2.9” 3.1” 3.5” x 2.3” 3.1” 2.9” 45° 2.9” 2.3” 3.5” x 3.1” 2.3”... -
Page 10: Maintenance
Maintenance • To prevent damaging the motor, you need to apply pressurized air or vacuum frequently to avoid dust interfering with the normal motor ventilation. Carbon Brush Replacement • It is necessary to replace worn carbons (or burnt, broken or smaller then 0.19” long) with new carbons. •... -
Page 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. -
Page 12: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
