- Page 1 DOL 2100 Alarm System Technical User's Guide...
- Page 3 Should any mistakes or imprecise information occur in spite of this, SKOV A/S would appreciate being notified hereof. • Irrespective of the above, SKOV A/S shall not accept any liability with regard to loss or damage caused or alleged to be caused by reliance on any information contained herein.
-
Page 4: Table Of Contents
Daily Test of Battery ..................18 Station Numbers ....................19 System with Several Alarm Panels ..............19 MAINTENANCE Service ........................ 20 Cleaning ......................20 Removal for Recycling ..................20 TECHNICAL DATA AUXILIARY CHARTS GLOSSARY FOR CHANGING NAME OF INPUT DOL 2100 Alarm System... -
Page 5: Product Description

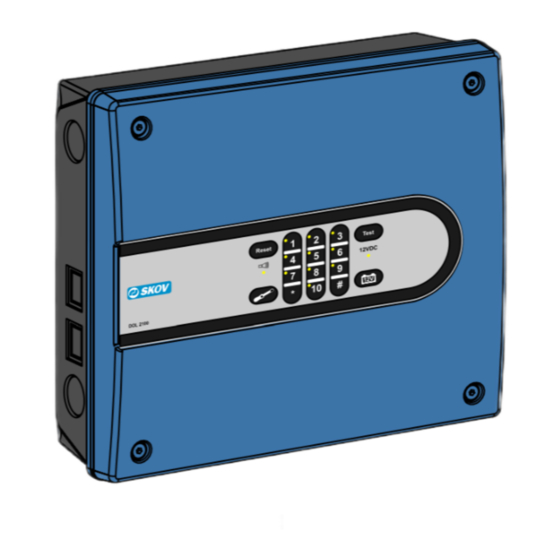

The DOL 2100 alarm system is intended for monitoring of housing equipment and computers and can monitor up to ten thermostats or alarm relay outputs from, e.g. silos, burners and feeding systems. DOL 2100 Fixed-line network and DOL 2100 GSM also contain a speech computer which can be used for clear speech alarm calls. -
Page 6: Alarm
If the voice computer is set up to SMS alarm, an SMS is sent to the first telephone number activated for SMS alarm. Also see paragraph 2.4.3.2. Answer the SMS alarm and send DOL 2100’s password ending with a point; e.g. '1.' (1 is the factory-set password). ... -
Page 7: Description Of Keyboard
This key is used to test the alarm outputs. As long as the key is pressed, all alarm outputs on DOL 2100 will be activated (Alarm relay, Flash and Call outputs). Press the key for 5 seconds to activate test calls. -
Page 8: Speech Computer
2.4.3.2 Acknowledgement of SMS alarm Answer the SMS alarm and send DOL 2100’s password ending with a point; e.g. '1.' (1 is the factory- set password). DOL 2100 will acknowledge the alarm and send an SMS text to all phone numbers indicating that the alarm has been acknowledged, the alarm type and the phone no. -
Page 9: Setting Of Dial-Up Functions
Calls start at telephone numbers 1-5. Press nos.1-5> persons on duty Acknowledge Select 0-9 as the acknowledgement key Key in * <0-9> # call with * 65 * # Select # as the acknowledgment key Key in * DOL 2100 Alarm System... -
Page 10: Input Names
Also see complete glossary for changing name of input terminal, paragraph 7. In order to have user words displayed in SMS messages, you have to send an SMS reading It is done the same way for other user words. *73<user word> #. DOL 2100 Alarm System... -
Page 11: Call The Speech Computer - Recording User Words
000 # Function Command Description Replaces the factory-set “Welcome to” ”Welcome to” Welcome < > Press *71 0 recording used when calling DOL 2100 -press to start and to stop ” Speech computer” Name < > Press *72 0 name... -
Page 12: Enquiry And Remote Control
All units/control panels in the network are accessible. For remote control and enquiries, you can make use of phone, SMS or DOL 2100 keypad. for 2 sec. on the DOL 2100 before making the entry. It says: “Enter command”. Press... -
Page 13: Other Speech Computer Setting Options Via Telephone
It is absolutely advisable to connect DOL 2100 to its own separate telephone line to ensure optimum use. However, DOL 2100 has a function that allows it to interact with a fax and a modem. Set the speech computer to answer the call before the fax/modem. Call DOL 2100 and hang up without dialling. -
Page 14: Error Messages From The Speech Computer (In Loudspeaker)
The PIN code of the SIM card is not 1234. card” ”The SIM card is missing” A SIM card is missing in the DOL 2100 GSM module. ”The SIM card is not active, please Enter the PUK code and PIN code = 1234. -
Page 15: Installation Guide
150 150 150 150 150 m<2 150 MAIN POWER MONITORING RELAY 12V DC 0.5 A FLASH Flashing permanently at alarm (Xenon) NB: not potential free 0.5 A CALL For activation of call to alarm receiving centre DOL 2100 Alarm System... -
Page 16: Systems With Fixed-Line Network Or Gsm
Systems with Fixed-line network or GSM If there is a DOL 2100 Fixed-line network or GSM in a system with several panels, connect all the panels in a RS485 network. Connect A to A, B to B and connect the shield in all the panels to GND. -
Page 17: Starting
Pre-paid mobile service cards may not be used with DOL 2100 GSM. Switch off the power to DOL 2100. Place the SIM card in DOL 2100 (top right corner). 1. Scanning of stations, hold the # key for 2 seconds. The speech computer says "Please do not make any entries for the next 2 minutes". -
Page 18: Dipswitch On The Computer Board In The Cover
If the voltage drops below 11.5 V, an alarm will be triggered. NB: DOL 2100 does not contain an actual clock. The inner clock is based on software and is not completely accurate. -
Page 19: Station Numbers
The system station numbers are set consecutively to 100, 101, 102, etc. Changing acceptance duration (30 sec.) and redial (0 min. = switched off) must be set on each control panel, system station no. 100, 101 etc. DOL 2100 Alarm System... -
Page 20: Maintenance
Clean DOL 2100 with a firmly wrung cloth without the use of solvents. Do not expose it to direct water jets or high-pressure cleaning. As for all electronic equipment it is best for DOL 2100 to be connected all the time as this will prolong its life and keep it dry and free from condensation. -
Page 21: Technical Data
H x W x D: 425 x 555 x 195 mm Shipping weight DOL 2100 9.5 kg Number of DOL 2012 on DOL 2100 Maximum current load on the 12 V output: 3.0 A Without extension module With extension module... -
Page 22: Auxiliary Charts
Technical User's Guide Auxiliary Charts Acknowledgement of completed test Date Initials The following has been tested Remarks DOL 2100 Alarm System... - Page 23 Technical User's Guide See also section 2.4.4 for input names. Input names Station Input name Word 1 Word 2 Word 3 DOL 2100 Alarm System...
- Page 24 *87 1 # (scanning) Number of stations: *91 access code # *92 number of rings # (answer call after) *95 number of calls # (to the same no.) *96 word no. # (siren) *97 no. # (first called:) DOL 2100 Alarm System...
-
Page 25: Glossary For Changing Name Of Input
1000 1000 Number switched_off factor system User words failure Words 73-79 73-79 telephone farrowing temperature faulty test feed feeding third DOL 2100 Alarm System... - Page 26 Address: Hedelund 4, DK-7870 Roslev Telephone: +45 72 17 55 55 hereby declares that the house computer type DOL 2100 including item numbers 134500, 134520, 134540 and 134660 and the corresponding language variants. conform with the following EU directives: 2006/95/EC (The directive on Low voltage current)
- Page 28 SKOV A/S • Hedelund 4 • Glyngøre • DK-7870 Roslev Tel. +45 72 17 55 55 • Fax +45 72 17 59 59 • www.skov.com • E-mail: skov@skov.dk...
