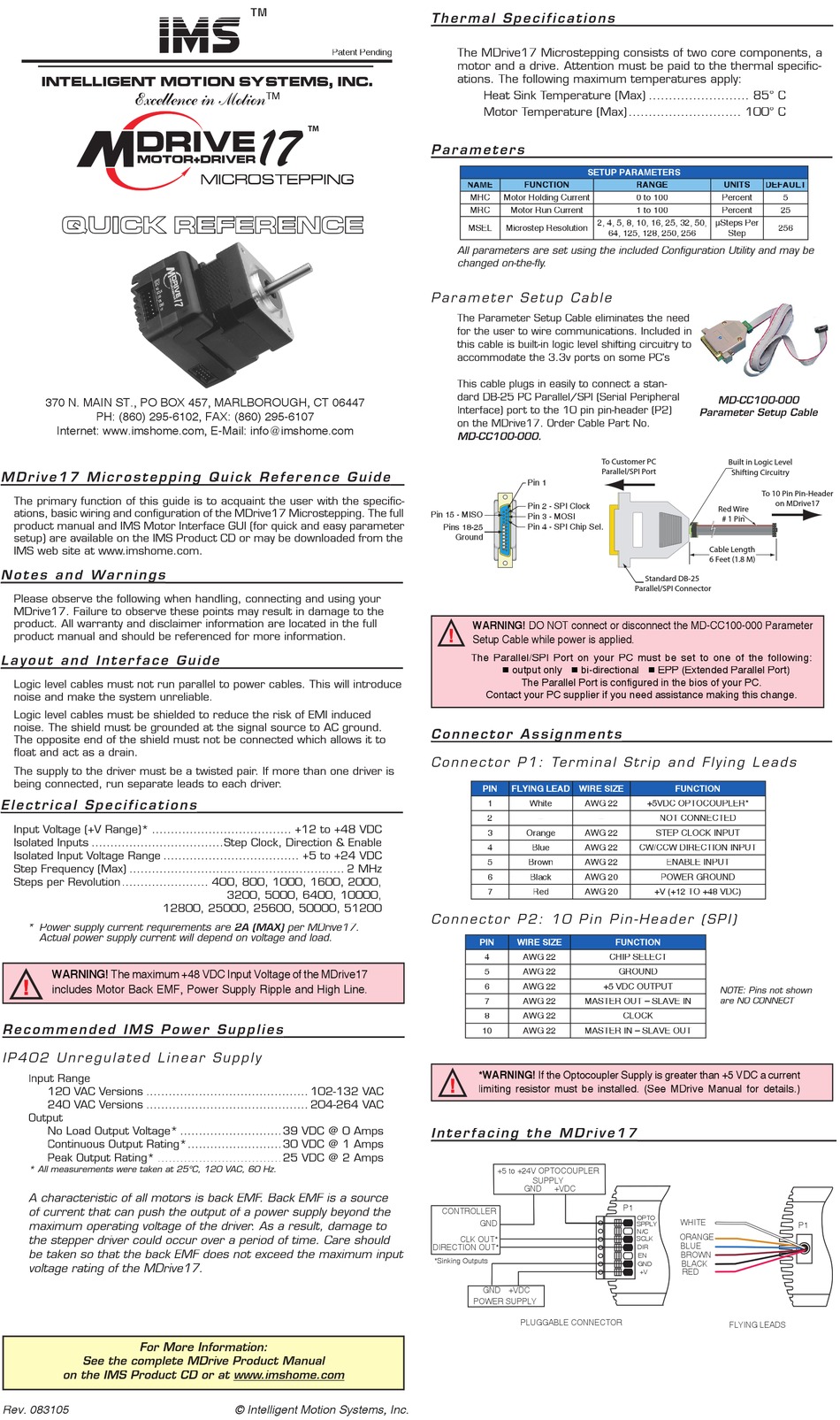

IMS MDrive 17 Quick Reference

intelligent motion systems, inc.
Excellence in Motion
QUICK REFERENCE
370 N. MAIN ST., PO BOX 457, MARLBOROUGH, CT 06447
PH: (860) 295-6102, FAX: (860) 295-6107
Internet: www.imshome.com, E-Mail: info@imshome.com
M D r i v e 1 7 M i c r o s t e p p i n g Q u i c k R e f e r e n c e G u i d e M D r i v e 1 7 M i c r o s t e p p i n g Q u i c k R e f e r e n c e G u i d e
The primary function of this guide is to acquaint the user with the specific-
ations, basic wiring and configuration of the MDrive17 Microstepping. The full
product manual and IMS Motor Interface GUI (for quick and easy parameter
setup) are available on the IMS Product CD or may be downloaded from the
IMS web site at www.imshome.com.
N o t e s a n d W a r n i n g s N o t e s a n d W a r n i n g s
Please observe the following when handling, connecting and using your
MDrive17. Failure to observe these points may result in damage to the
product. All warranty and disclaimer information are located in the full
product manual and should be referenced for more information.
L a y o u t a n d I n t e r f a c e G u i d e L a y o u t a n d I n t e r f a c e G u i d e
Logic level cables must not run parallel to power cables. This will introduce
noise and make the system unreliable.
Logic level cables must be shielded to reduce the risk of EMI induced
noise. The shield must be grounded at the signal source to AC ground.
The opposite end of the shield must not be connected which allows it to
float and act as a drain.
The supply to the driver must be a twisted pair. If more than one driver is
being connected, run separate leads to each driver.
E l e c t r i c a l S p e c i f i c a t i o n s E l e c t r i c a l S p e c i f i c a t i o n s
Input Voltage (+V Range)* ..................................... +12 to +48 VDC
Isolated Inputs ...................................Step Clock, Direction & Enable
Isolated Input Voltage Range .................................... +5 to +24 VDC
Step Frequency (Max) ......................................................... 2 MHz
Steps per Revolution....................... 400, 800, 1000, 1600, 2000,
* Power supply current requirements are 2A (MAX) per MDrive17.
Actual power supply current will depend on voltage and load.
WARNING! The maximum +48 VDC Input Voltage of the MDrive17
includes Motor Back EMF, Power Supply Ripple and High Line.
R e c o m m e n d e d I M S P o w e r S u p p l i e s R e c o m m e n d e d I M S P o w e r S u p p l i e s
I P 4 0 2 U n r e g u l a t e d L i n e a r S u p p l y
nput Range
I
120 VAC Versions ........................................... 102-132 VAC
240 VAC Versions ........................................... 204-264 VAC
Output
No Load Output Voltage* ...........................39 VDC @ 0 Amps
Continuous Output Rating*.........................30 VDC @ 1 Amps
Peak Output Rating* .................................25 VDC @ 2 Amps
* All measurements were taken at 25°C, 120 VAC, 60 Hz.
A characteristic of all motors is back EMF. Back EMF is a source
of current that can push the output of a power supply beyond the
maximum operating voltage of the driver. As a result, damage to
the stepper driver could occur over a period of time. Care should
be taken so that the back EMF does not exceed the maximum input
voltage rating of the MDrive17.
For More Information:
See the complete MDrive Product Manual
on the IMS Product CD or at www.imshome.com
Rev. 083105
TM
TM
TM
TM
MICROSTEPPING
3200, 5000, 6400, 10000,
12800, 25000, 25600, 50000, 51200
2A (MAX) 2A (MAX) per MDrive17.
© Intelligent Motion Systems, Inc.
T h e r m a l S p e c i f i c a t i o n s T h e r m a l S p e c i f i c a t i o n s
The MDrive17 Microstepping consists of two core components, a
motor and a drive. Attention must be paid to the thermal specific-
ations. The following maximum temperatures apply:
Heat Sink Temperature (Max) ......................... 85° C
Motor Temperature (Max) ............................ 100° C
P a r a m e t e r s
SETUP PARAMETERS
NAME FUNCTION
MHC Motor Holding Current
MRC Motor Run Current
MSEL Microstep Resolution
All parameters are set using the included Configuration Utility and may be
changed on-the-fly.
P a r a m e t e r S e t u p C a b l e
The Parameter Setup Cable eliminates the need
for the user to wire communications. Included in
this cable is built-in logic level shifting circuitry to
accommodate the 3.3v ports on some PC's
This cable plugs in easily to connect a stan-
dard DB-25 PC Parallel/SPI (Serial Peripheral
Interface) port to the 10 pin pin-header (P2)
on the MDrive17. Order Cable Part No.
MD-CC100-000.
Pin 1
Pin 2 - SPI Clock
Pin 15 - MISO
Pin 3 - MOSI
Pin 4 - SPI Chip Sel.
Pins 18-25
Ground
WARNING! DO NOT connect or disconnect the MD-CC100-000 Parameter
Setup Cable while power is applied.
The Parallel/SPI Port on your PC must be set to one of the following:
n output only n bi-directional n EPP (Extended Parallel Port)
The Parallel Port is confi gured in the bios of your PC.
Contact your PC supplier if you need assistance making this change.
C o n n e c t o r A s s i g n m e n t s C o n n e c t o r A s s i g n m e n t s
C o n n e c t o r P 1 : Te r m i n a l S t r i p a n d F l y i n g L e a d s
PIN FLYING LEAD WIRE SIZE
1 White AWG 22
2 –
3 Orange AWG 22
4 Blue AWG 22
5 Brown AWG 22
6 Black AWG 20
7 Red AWG 20
C o n n e c t o r P 2 : 1 0 P i n P i n - H e a d e r ( S P I )
PIN WIRE SIZE
4 AWG 22
5 AWG 22
6 AWG 22
7 AWG 22 MASTER OUT – SLAVE IN
8 AWG 22
10 AWG 22 MASTER IN – SLAVE OUT
*WARNING! If the Optocoupler Supply is greater than +5 VDC a current
limiting resistor must be installed. (See MDrive Manual for details.)
I n t e r f a c i n g t h e M D r i v e 1 7 I n t e r f a c i n g t h e M D r i v e 1 7
+5 to +24V OPTOCOUPLER
SUPPLY
GND +VDC
PLUGGABLE CONNECTOR
RANGE UNITS
0 to 100 Percent
1 to 100 Percent
2, 4, 5, 8, 10, 16, 25, 32, 50, µSteps Per
64, 125, 128, 250, 256 Step
MD-CC100-000
Parameter Setup Cable
To Customer PC
Built in Logic Level
Parallel/SPI Port
Shifting Circuitry
Red Wire
# 1 Pin
Cable Length
6 Feet (1.8 M)
Standard DB-25
Parallel/SPI Connector
FUNCTION
+5VDC OPTOCOUPLER*
– NOT CONNECTED
STEP CLOCK INPUT
CW/CCW DIRECTION INPUT
ENABLE INPUT
POWER GROUND
+V (+12 TO +48 VDC)
FUNCTION
CHIP SELECT
GROUND
+5 VDC OUTPUT
NOTE: Pins not shown
are NO CONNECT
CLOCK
P1
OPTO
SPPLY
N/C
ORANGE
SCLK
BLUE
DIR
BROWN
EN
GND
+V
FLYING LEADS
DEFAULT
5
25
256
To 10 Pin Pin-Header
on MDrive17
P1
